K095
K095

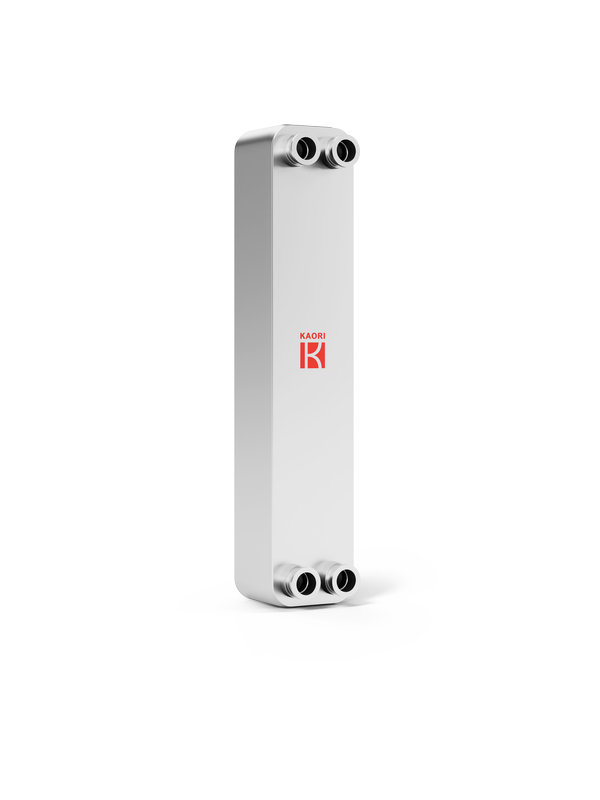

Standard Brazed Plate Heat Exchanger
To fulfill the thermal exchanging, K095 uses longer flow channel on each plate, and it well suits the conditions which has minor gap in inlet&outlet temperature, such as air cooling and heat recovery.
K095 is also comtatible with application featured in small flow volume but huge temperature gap, such as heat pump and reginoal heating system.
Industry:
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Food Equipment Industry
Pharmaceutical
Process Cooling/Heating
Semi Conductor
Hydraulic Industry
Machine Tool
Bio-Tech
Renewable Energy
District Heating
Fluid Cooling/Heating
Data Center Infrastructure
Plastic Injection / Rubber Extruder Machine
Air Compressor
Gear Box Heating/Cooling
Application:
Evaporator
Condenser
Subcooler
Economizer
Oilcooler
Intercooler
Plate Material:
SUS316
Brazing Material:
Copper
Max number of plates(N):
120
Working Pressure:
30
Max working temperature:
200
Thickness(mm):
11.0+2.38*N
Weight(kg):
2.83+0.204*N
Connection-Male Thread(up to):
1 1/4"
Connection-Female Thread(up to):
1"
Connection-Solder(up to):
1 3/8"

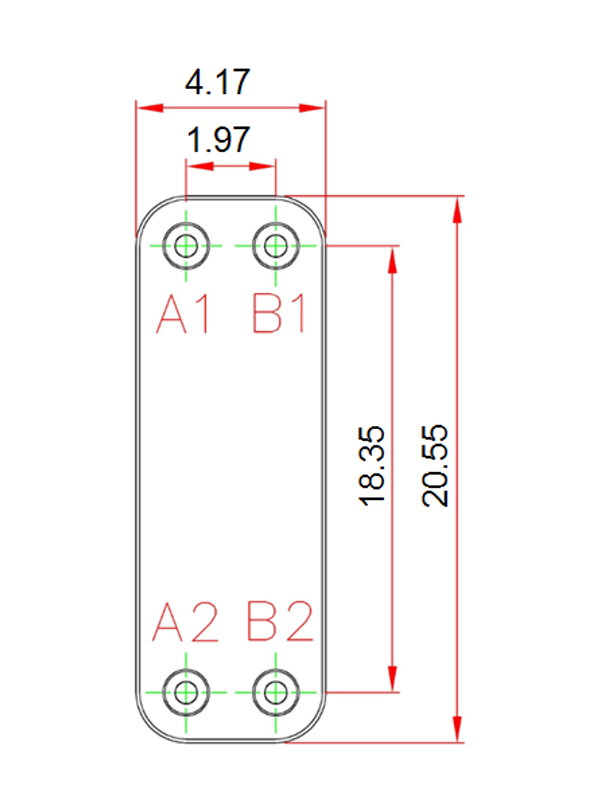

L1(mm):
522
L2(mm):
466
W1(mm):
106
W2(mm):
50
