I095
I095

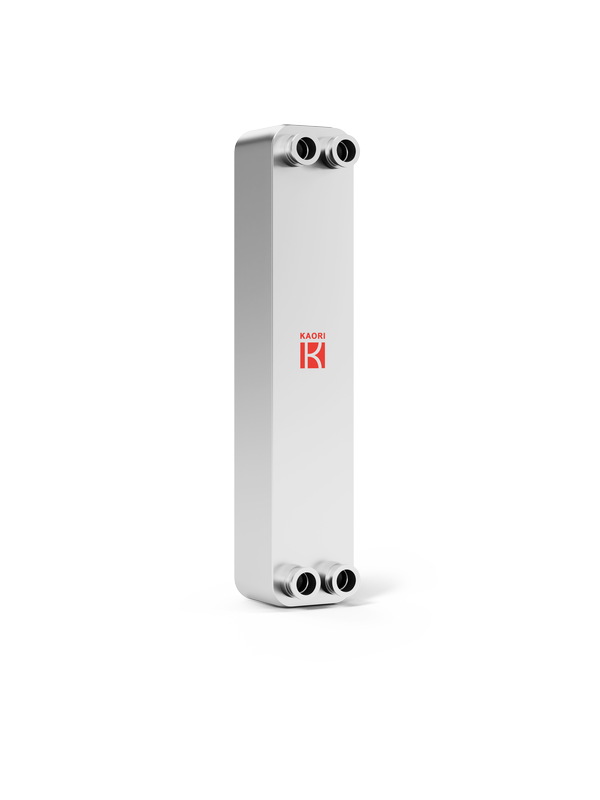

Impact Resistant BPHE
I095 is the BPHE model with enforced structure to resist thermal shock and pressure shock caused by either the drastic temperature gap in cooling&heating system or the physical burst from the oil in hydraulic system. I series can satisfy the users who have high requriement for security and reliability.
Industry:
Food Equipment Industry
Pharmaceutical
Hydraulic Industry
Bio-Tech
Renewable Energy
Fluid Cooling/Heating
Plastic Injection / Rubber Extruder Machine
Application:
Economizer
Oilcooler
Plate Material:
SUS316
Brazing Material:
Copper
Max number of plates(N):
120
Working Pressure:
30
Max working temperature:
200
Thickness(mm):
11.0+2.38*N
Weight(kg):
2.83+0.204*N
Connection-Male Thread(up to):
1 1/4"
Connection-Female Thread(up to):
1"
Connection-Solder(up to):
1 3/8"

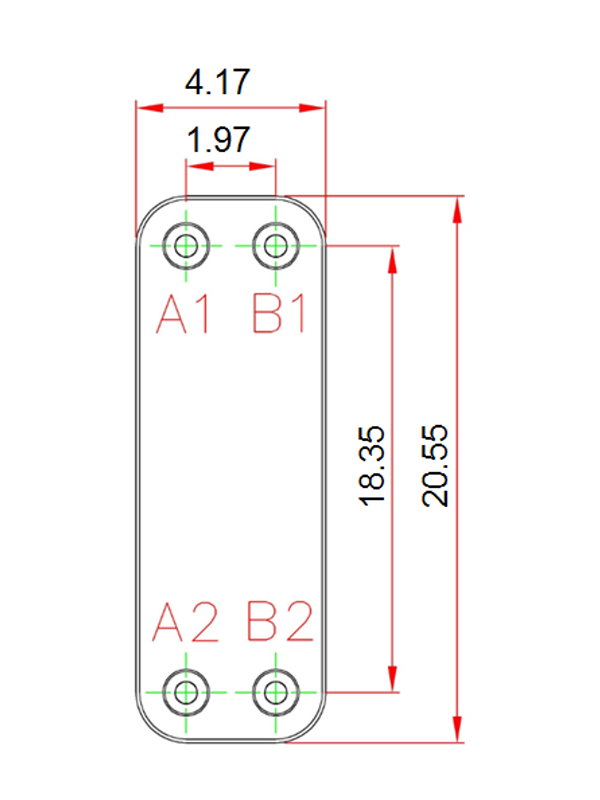

L1(mm):
522
L2(mm):
466
W1(mm):
106
W2(mm):
50
