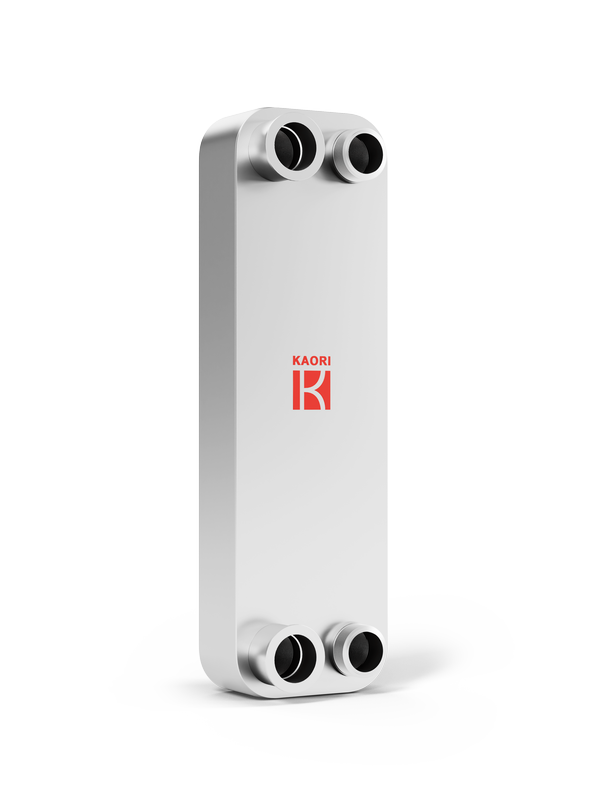

I200
I200
Impact Resistant BPHE
I200 is the BPHE model with enforced structure to resist thermal shock and pressure shock caused by either the drastic temperature gap in cooling&heating system or the physical burst from the oil in hydraulic system. I series can satisfy the users who have high requriement for security and reliability.
Industry:
Food Equipment Industry
Pharmaceutical
Hydraulic Industry
Bio-Tech
Fluid Cooling/Heating
Plastic Injection / Rubber Extruder Machine
Application:
Economizer
Oilcooler
Plate Material:
SUS316
Brazing Material:
Copper
Max number of plates(N):
220
Working Pressure:
30
Max working temperature:
200
Thickness(mm):
14.0+2.40*N
Weight(kg):
6.89+0.404*N
Connection-Male Thread(up to):
2 1/2"
Connection-Female Thread(up to):
1 1/2"
Connection-Solder(up to):
2 1/8"

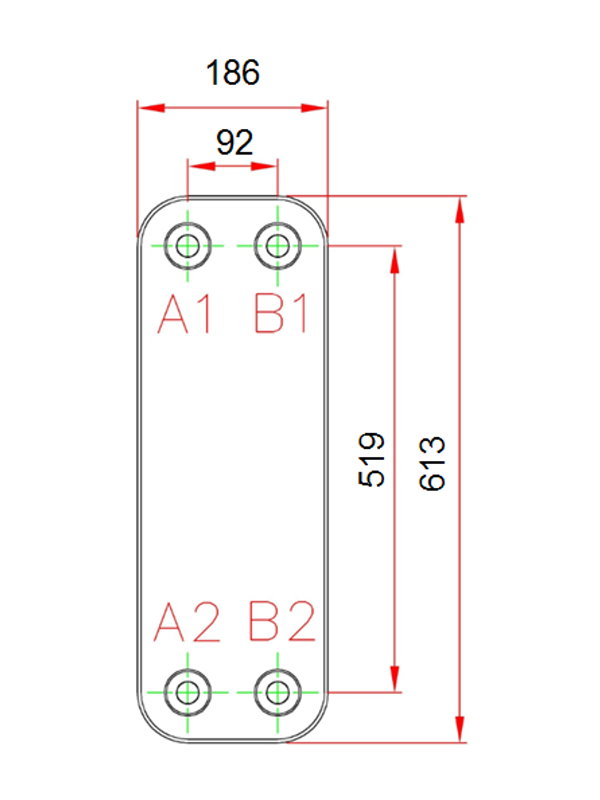

L1(mm):
613
L2(mm):
519
W1(mm):
186
W2(mm):
92
