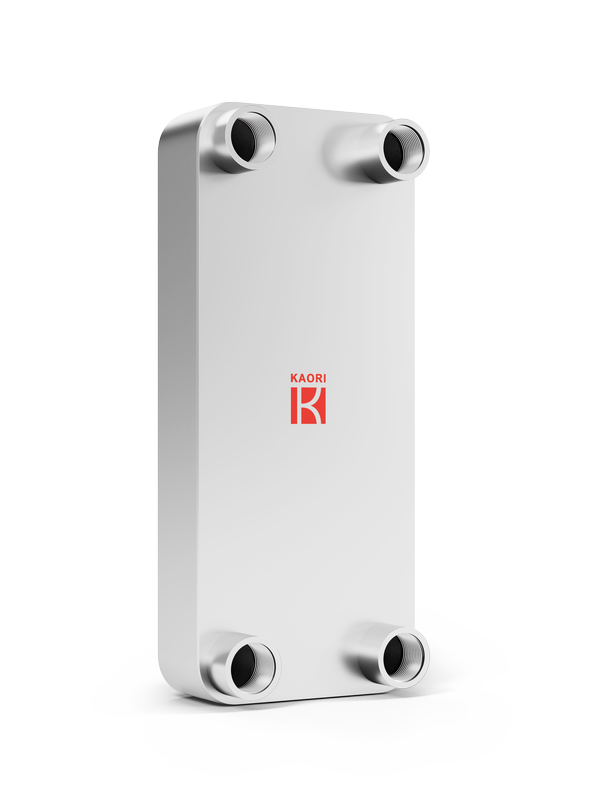

I400
I400
Impact Resistant BPHE
I400 is the BPHE model with enforced structure to resist thermal shock and pressure shock caused by either the drastic temperature gap in cooling&heating system or the physical burst from the oil in hydraulic system. I series can satisfy the users who have high requriement for security and reliability.
* I400: diagonal design.
Industry:
Food Equipment Industry
Pharmaceutical
Hydraulic Industry
Bio-Tech
Renewable Energy
Fluid Cooling/Heating
Plastic Injection / Rubber Extruder Machine
Application:
Economizer
Oilcooler
Plate Material:
SUS316
Brazing Material:
Copper
Max number of plates(N):
250
Working Pressure:
30
Max working temperature:
200
Thickness(mm):
14.0+2.38*N
Weight(kg):
31.12+0.89*N
Connection-Male Thread(up to):
3"
Connection-Female Thread(up to):
3"
Connection-Solder(up to):
3 1/8"
Connection-Flange(up to):
3"

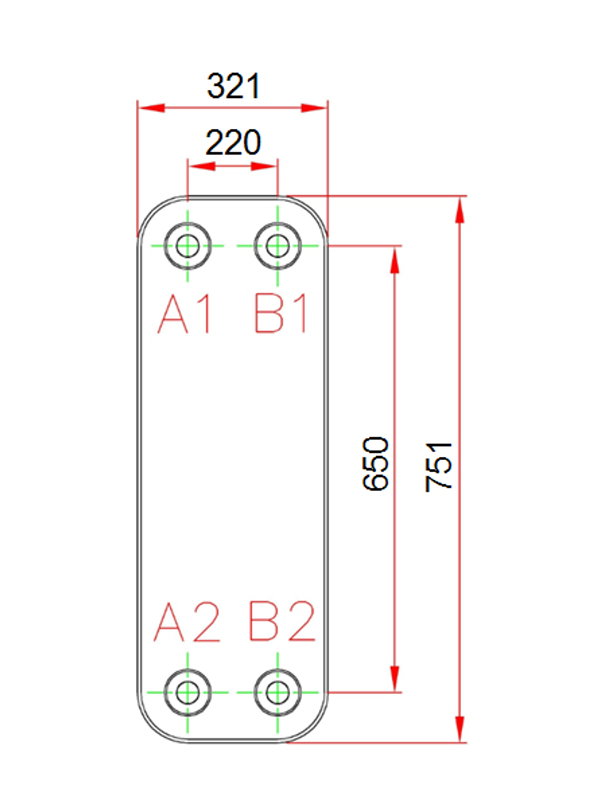

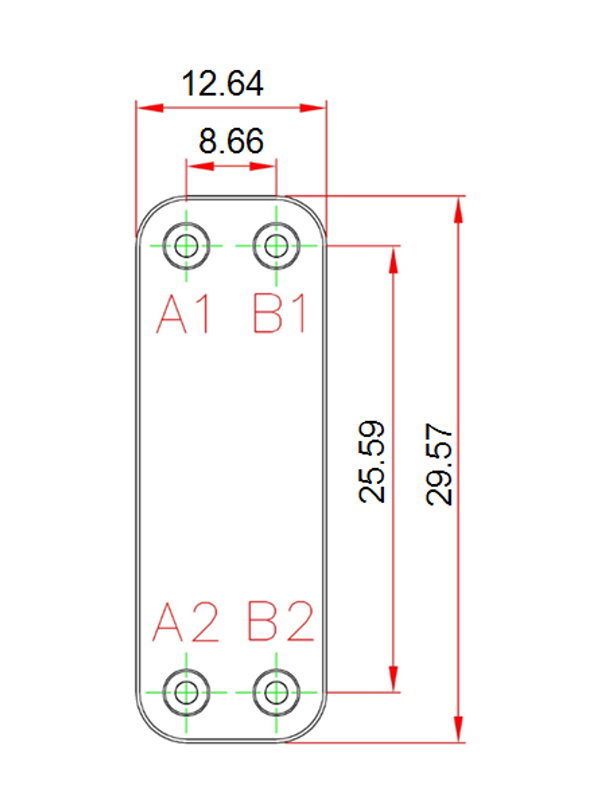

L1(mm):
751
L2(mm):
650
W1(mm):
321
W2(mm):
220
