K105
K105

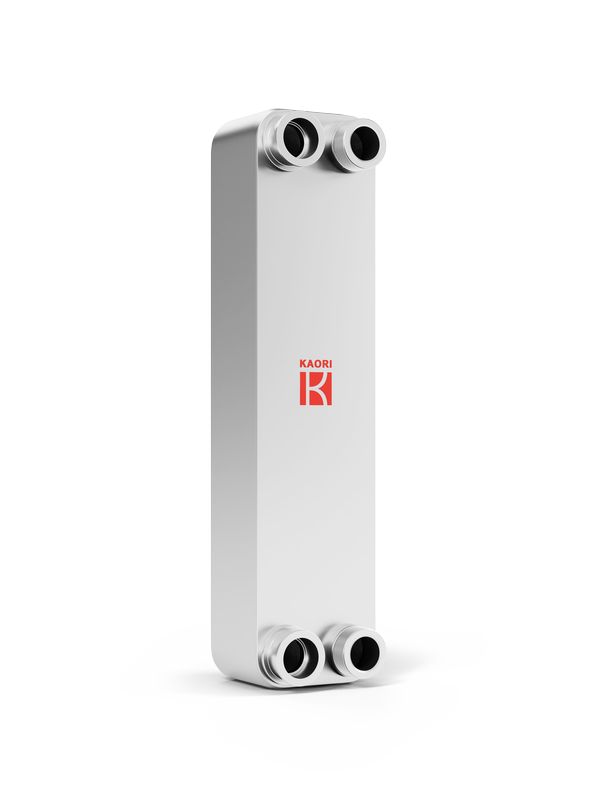

Standard Brazed Plate Heat Exchanger
K105 is the typical BPHE heat exchanger designed in compact size and long flow channel, which leads to better thermal efficiency. The width on the plates is that of the largest size in BPHE.
K105 is widely used in industry involving heating and cooling, especially hydraulic system and evaporator, condenser, economizer, and oil cooler in refrigeration.
Industry：
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Food Equipment Industry
Pharmaceutical
Process Cooling/Heating
Semi Conductor
Hydraulic Industry
Machine Tool
Bio-Tech
Renewable Energy
District Heating
Boiler
Fluid Cooling/Heating
Data Center Infrastructure
Plastic Injection / Rubber Extruder Machine
Air Compressor
Gear Box Heating/Cooling
Application：
Evaporator
Condenser
Subcooler
Economizer
Oilcooler
Intercooler
Plate Material：
SUS316
Brazing Material：
Copper
Max number of plates(N)：
140
Working Pressure：
30
Max working temperature：
200
Thickness(mm)：
11.0+2.38*N
Weight(kg)：
3.23+0.230*N
Connection-Male Thread(up to)：
1 1/2"
Connection-Female Thread(up to)：
1 1/4"
Connection-Solder(up to)：
1 5/8"

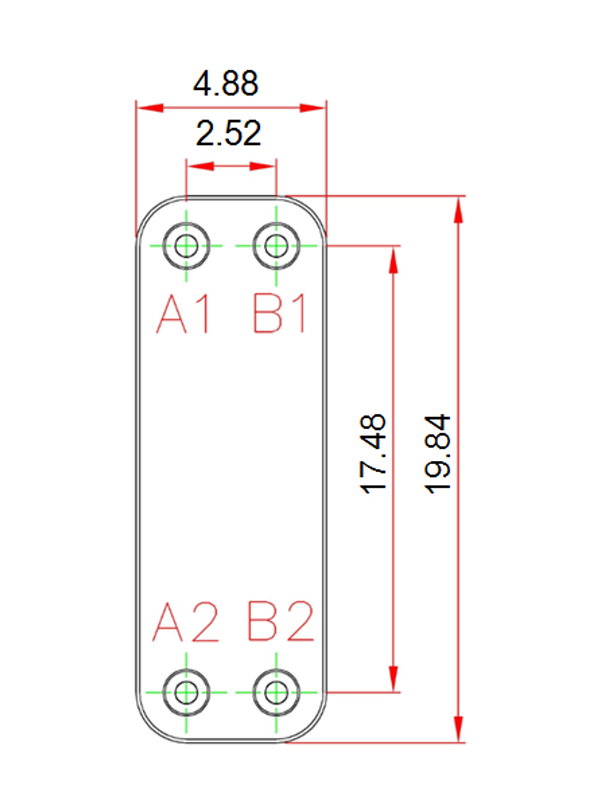

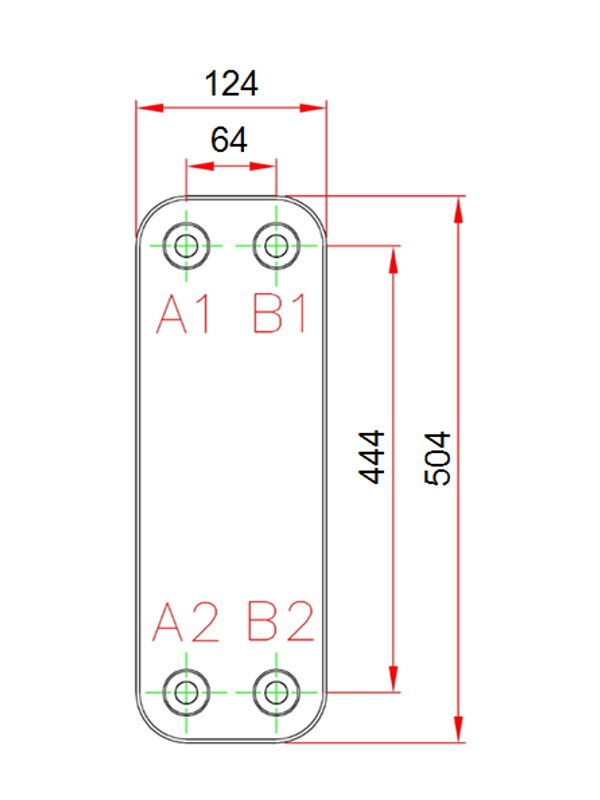

L1(mm)：
504
L2(mm)：
444
W1(mm)：
124
W2(mm)：
64
