B235D
B235D

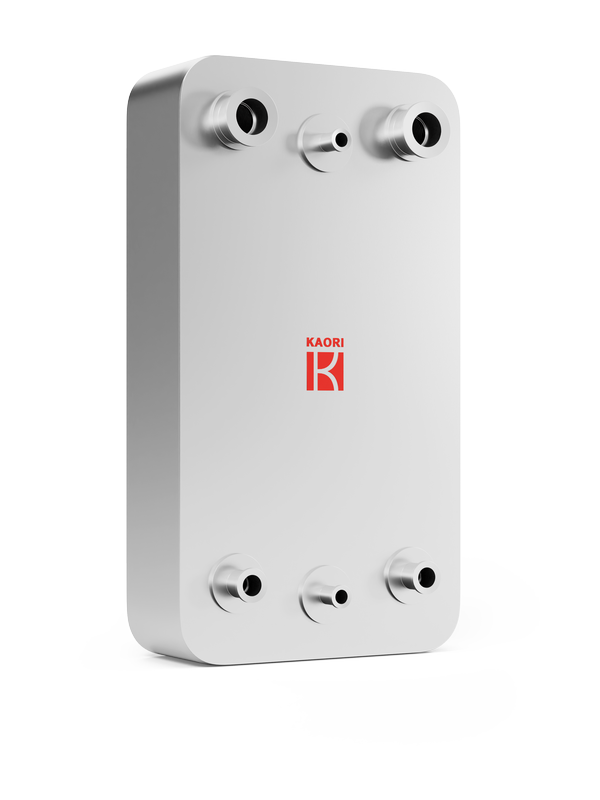

Asymmetric Brazed Plate Heat Exchanger
B235D features an asymmetric channel design with a dual-circuit configuration, enabling two independent refrigerant circuits within a single heat exchanger. It is suitable for heat pumps, commercial air conditioning, refrigeration, and other systems requiring dual-circuit operation.
Designed to meet the requirements of next-generation refrigerants and high-efficiency HVAC systems, B235D helps reduce refrigerant charge while maintaining strong heat transfer performance and optimized pressure drop, contributing to improved system efficiency and reliable operation.
Industry：
Chiller
Heat Pump
Reefer / Freezer
Machine Tool
District Heating
Fluid Cooling/Heating
Application：
Evaporator
Condenser
Subcooler
Intercooler
Plate Material：
SUS316
SUS304
Brazing Material：
Copper
Max number of plates(N)：
222
Working Pressure：
32
Thickness(mm)：
11.0+2.10*N
Weight(kg)：
7.46+0.42*N
Connection-Male Thread(up to)：
2 1/2"
Connection-Female Thread(up to)：
2 1/2"
Connection-Solder(up to)：
2 5/8"

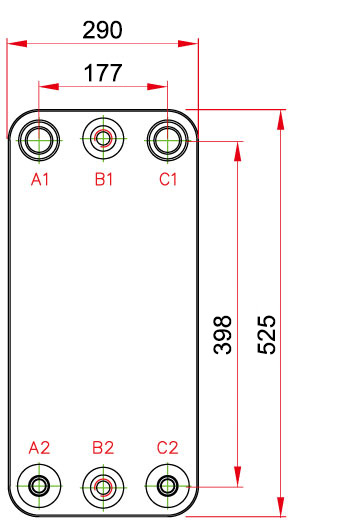

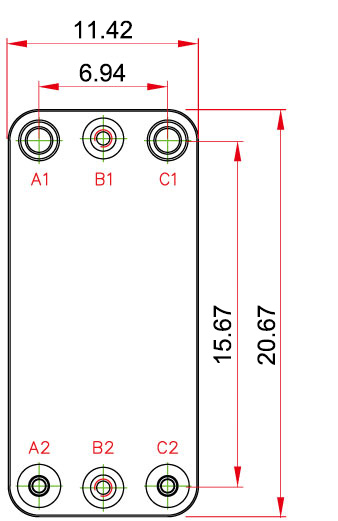

L1(mm)：
525
L2(mm)：
398
W1(mm)：
290
W2(mm)：
177
