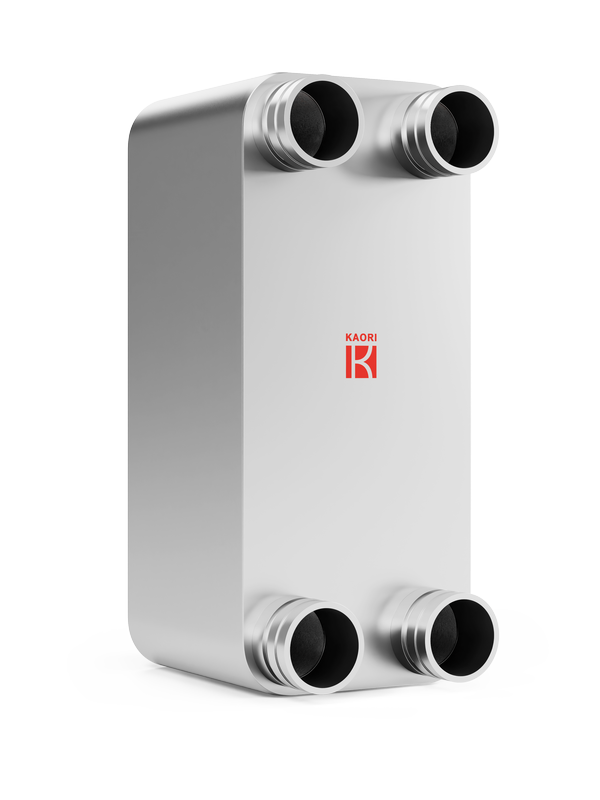

K350
K350
Standard Brazed Plate Heat Exchanger
K350 extends KAORI's K Series of standard brazed plate heat exchangers to applications requiring higher thermal capacity and flow rates. Its compact design provides efficient and reliable heat transfer performance while minimizing installation space.
It is suitable for data center liquid cooling, chilled water systems, process cooling, and other industrial applications requiring high-flow heat exchange, providing additional flexibility for system and equipment design.
Industry：
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Renewable Energy
District Heating
Fluid Cooling/Heating
Data Center Infrastructure
Application：
Evaporator
Condenser
Subcooler
Other
Plate Material：
SUS316
SUS304
Brazing Material：
Copper
Max number of plates(N)：
420
Working Pressure：
16
Max working temperature：
200
Connection-Male Thread(up to)：
4"
Connection-Female Thread(up to)：
4"
Connection-Solder(up to)：
4"
Connection-Flange(up to)：
4"
Connection-Hose(up to)：
4"
Connection-Hydraulic(up to)：
4"

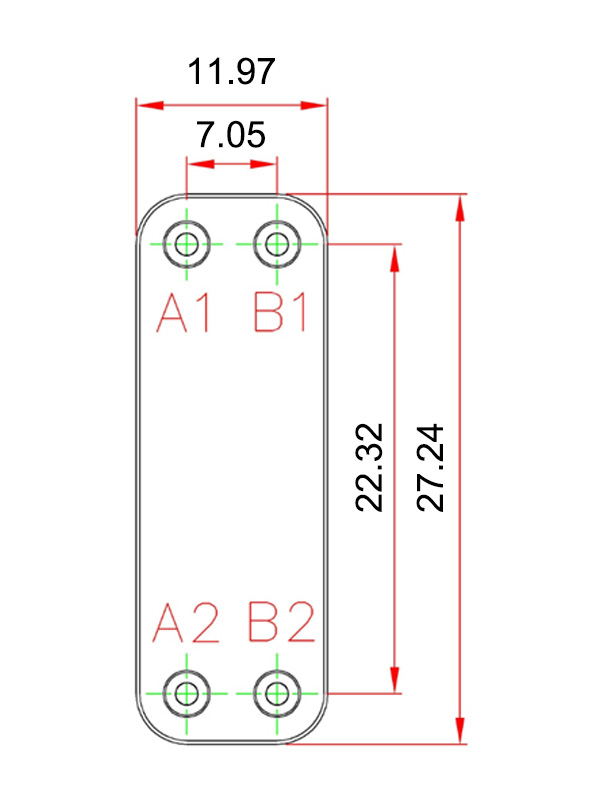

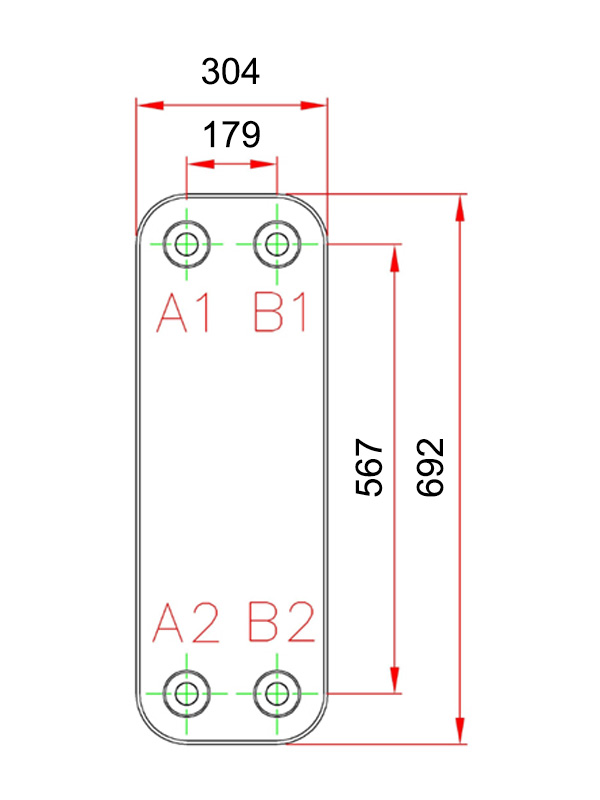

L1(mm)：
692
L2(mm)：
567
W1(mm)：
304
W2(mm)：
179
