K390
K390

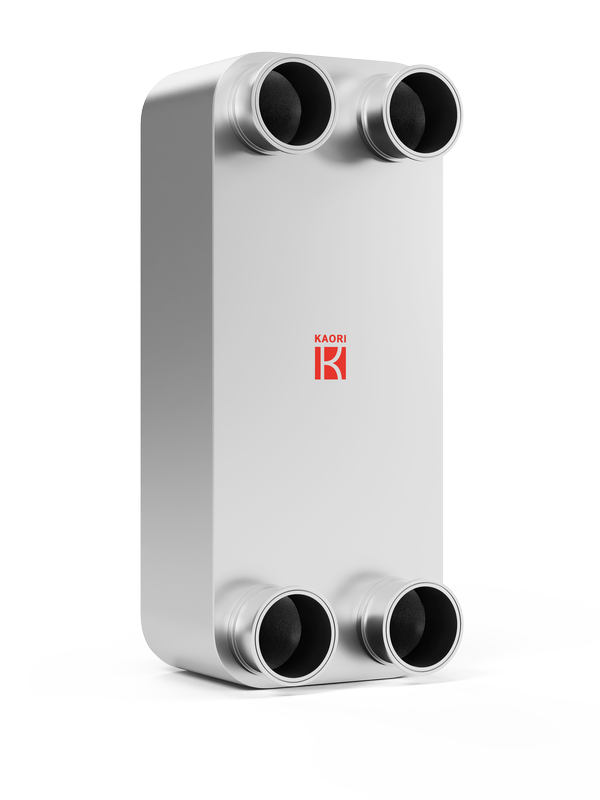

Standard Brazed Plate Heat Exchanger
K390 features a symmetric channel design and is suitable for high-flow heat exchange systems where the flow conditions on both sides are relatively balanced. For data center liquid cooling and In-Row CDU applications, it delivers stable and efficient heat transfer performance.
K390 shares the same overall dimensions as B390, allowing system designers to select either symmetric or asymmetric channel configurations according to flow rate and pressure drop requirements, providing greater flexibility in liquid cooling system integration.
Industry：
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Renewable Energy
District Heating
Fluid Cooling/Heating
Data Center Infrastructure
Application：
Evaporator
Condenser
Subcooler
Other
Plate Material：
SUS316
SUS304
Brazing Material：
Copper
Max number of plates(N)：
0
Working Pressure：
16
Connection-Male Thread(up to)：
4"
Connection-Female Thread(up to)：
4"
Connection-Solder(up to)：
4"
Connection-Flange(up to)：
4"
Connection-Hose(up to)：
4"
Connection-Hydraulic(up to)：
4"

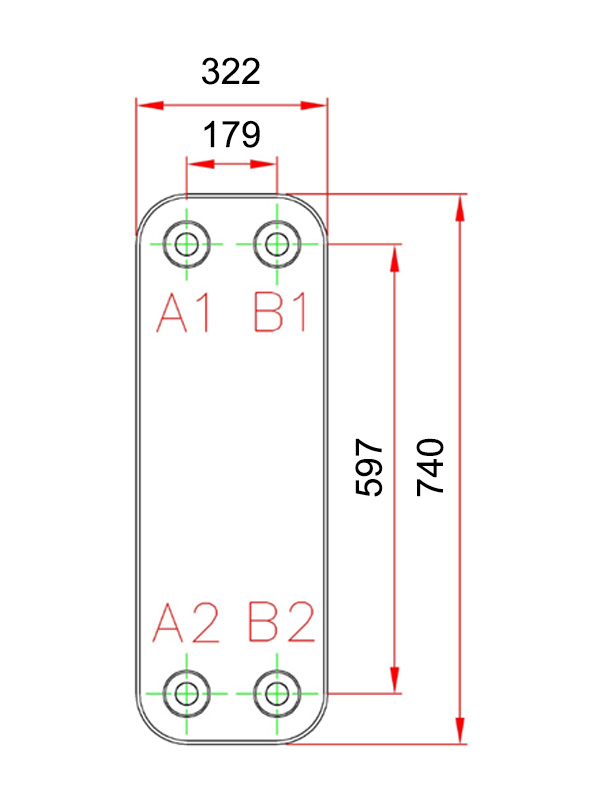

L1(mm)：
740
L2(mm)：
597
W1(mm)：
322
W2(mm)：
179
