B390
B390

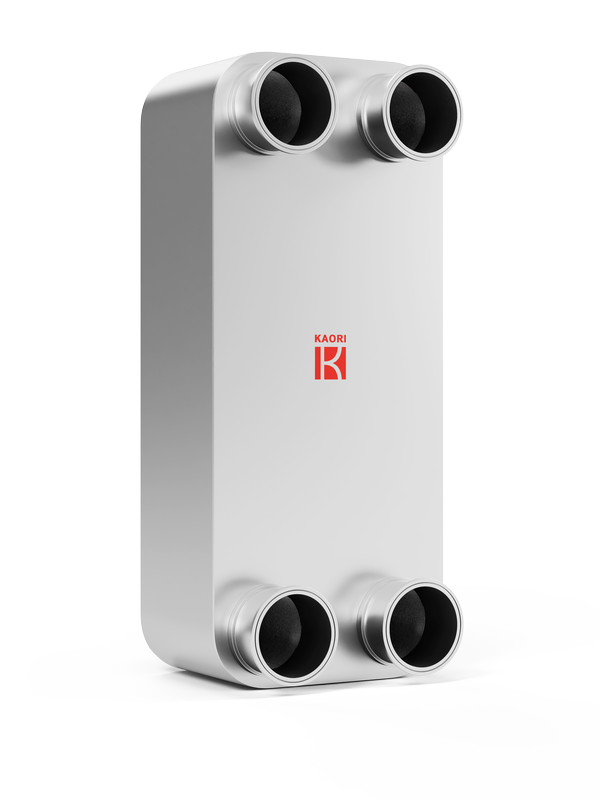

Asymmetric Brazed Plate Heat Exchanger
B390 is designed for high-density AI and HPC data center liquid cooling systems. Featuring an asymmetric channel design, it accommodates different flow rates and pressure drop requirements on the primary and secondary sides of the CDU while maintaining high heat transfer efficiency and reducing overall system pressure drop.
B390 is well suited for high-capacity liquid cooling applications such as In-Row CDUs. Single-pass and multi-pass configurations are available to provide greater flexibility for different system designs and operating requirements.
Industry：
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Process Cooling/Heating
Renewable Energy
District Heating
Fluid Cooling/Heating
Data Center Infrastructure
Application：
Evaporator
Condenser
Subcooler
Other
Plate Material：
SUS316
SUS304
Brazing Material：
Copper
Max number of plates(N)：
420
Working Pressure：
16
Max working temperature：
200
Thickness(mm)：
8.0+2.07*N
Weight(kg)：
10.94+0.63*N
Connection-Male Thread(up to)：
4"
Connection-Female Thread(up to)：
4"
Connection-Solder(up to)：
4"
Connection-Flange(up to)：
4"
Connection-Hose(up to)：
4"
Connection-Hydraulic(up to)：
4"

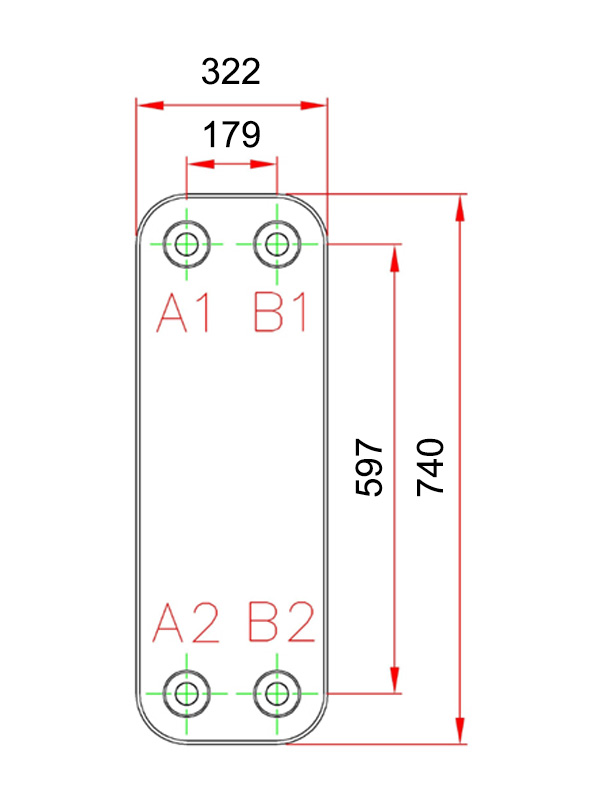

L1(mm)：
740
L2(mm)：
597
W1(mm)：
322
W2(mm)：
179
