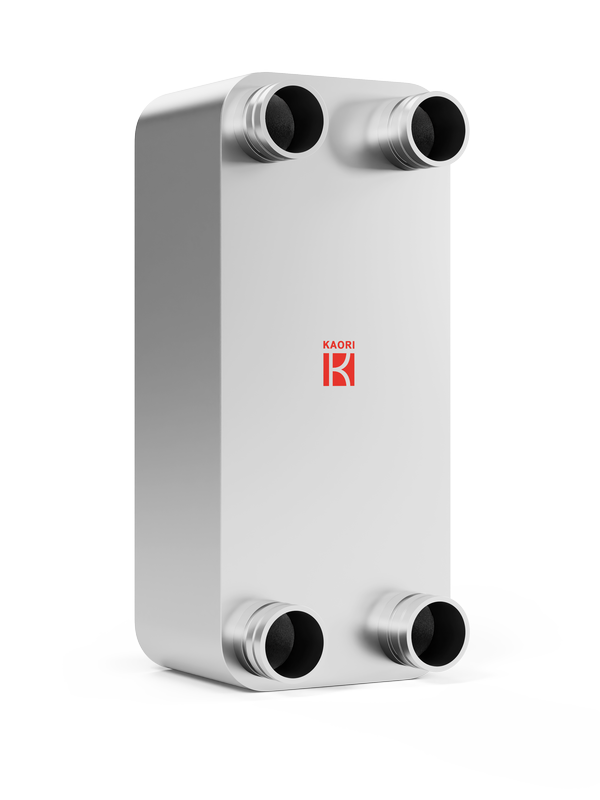

Standard Brazed Plate Heat Exchanger
K560 is a large-size brazed plate heat exchanger within KAORI's K Series, designed for large-scale systems and high thermal load applications. It provides greater heat transfer capacity and flow handling capability while retaining the high efficiency and compact footprint of brazed plate heat exchanger technology.
K560 is suitable for large cooling systems, data center liquid cooling, process cooling, and other high-flow heat exchange applications, and can be configured to meet various operating conditions and system requirements.
Industry：
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Renewable Energy
District Heating
Fluid Cooling/Heating
Data Center Infrastructure
Application：
Evaporator
Condenser
Subcooler
Other
Plate Material：
SUS316
SUS304
Brazing Material：
Copper
Max number of plates(N)：
0
Working Pressure：
16
Max working temperature：
200
Connection-Male Thread(up to)：
6"
Connection-Female Thread(up to)：
6"
Connection-Solder(up to)：
6"
Connection-Flange(up to)：
6"
Connection-Hose(up to)：
6"
Connection-Hydraulic(up to)：
6"

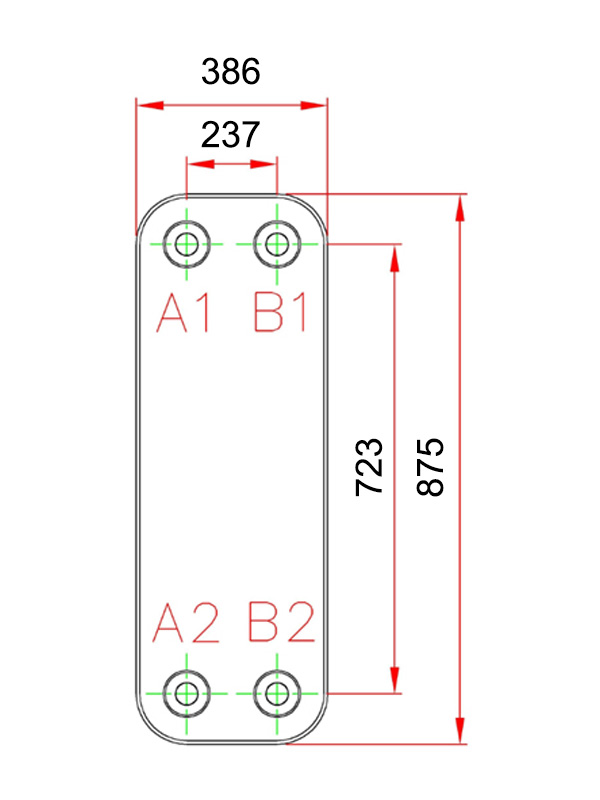

L1(mm)：
875
L2(mm)：
723
W1(mm)：
386
W2(mm)：
237
