K200
K200

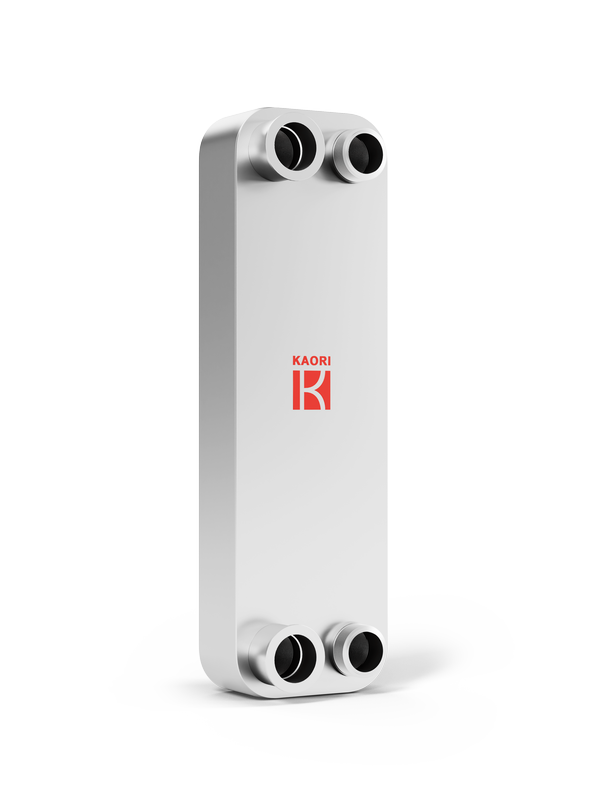

Standard Brazed Plate Heat Exchanger
K200 is the BPHE dedicated to the fluid which has two- phase transformation, and it has perfect compatibility with various kinds of refirgerant. Despite high thermal efficiency,K200 can also maintain the pressure drop in the level which the system can tolerate and function.
K200 is featured in hydraulic field, such as heat recovery and oil cooling or HVAC such as evaporator, condenser, economizer, Con/Evap.
Industry:
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Food Equipment Industry
Pharmaceutical
Process Cooling/Heating
Semi Conductor
Hydraulic Industry
Machine Tool
Bio-Tech
Renewable Energy
District Heating
Boiler
Fluid Cooling/Heating
Data Center Infrastructure
Plastic Injection / Rubber Extruder Machine
Air Compressor
Gear Box Heating/Cooling
Application:
Evaporator
Condenser
Subcooler
Economizer
Oilcooler
Intercooler
Plate Material:
SUS316
Brazing Material:
Copper
Max number of plates(N):
220
Working Pressure:
30
Max working temperature:
200
Thickness(mm):
14.0+2.40*N
Weight(kg):
6.89+0.404*N
Connection-Male Thread(up to):
2 1/2"
Connection-Female Thread(up to):
1 1/2"
Connection-Solder(up to):
2 1/8"

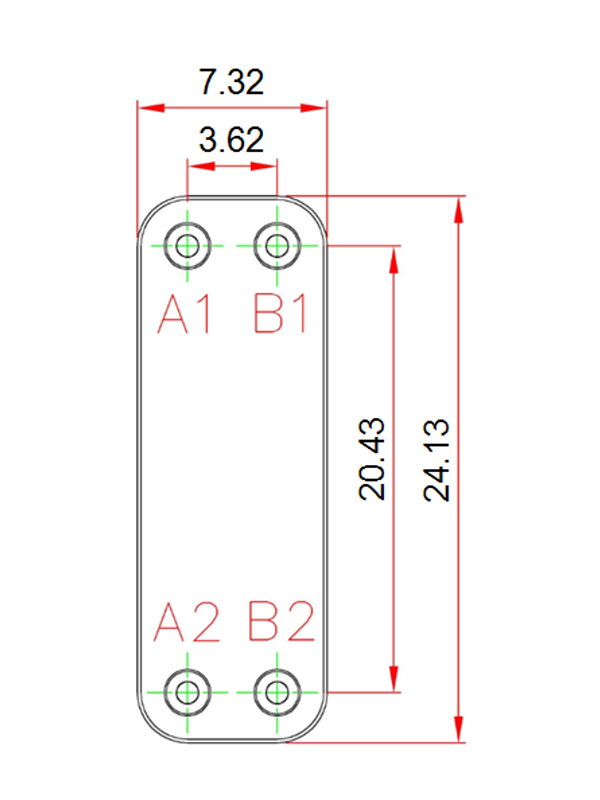

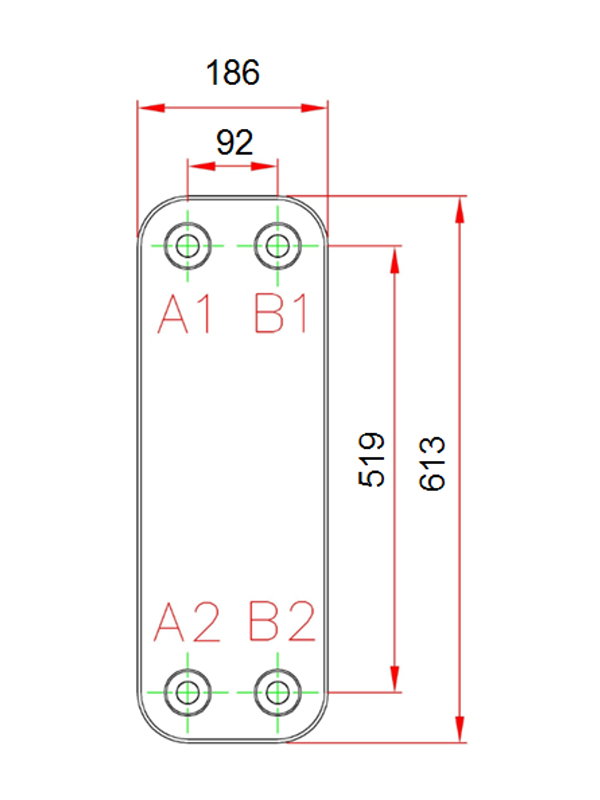

L1(mm):
613
L2(mm):
519
W1(mm):
186
W2(mm):
92
