K210
K210

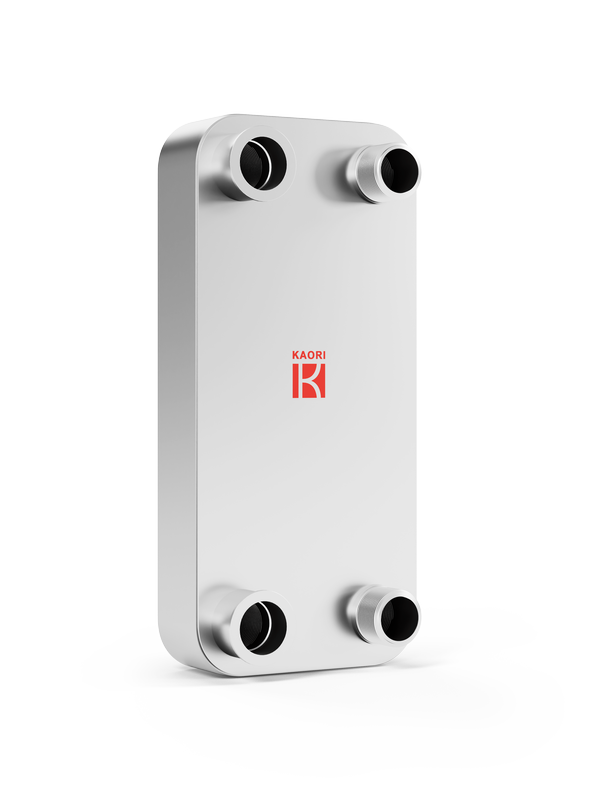

Standard Brazed Plate Heat Exchanger
K210 is suitable for the thermal exchange between liquid. Despite larger flow channel and lower pressure drop, the connection in large diameter can be well fitted in residential sanitary system, regional boiler and chiller heating and second heating&cooling exchange in HVAC system.
Industry:
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Food Equipment Industry
Pharmaceutical
Process Cooling/Heating
Semi Conductor
Hydraulic Industry
Machine Tool
Bio-Tech
Renewable Energy
District Heating
Boiler
Fluid Cooling/Heating
Data Center Infrastructure
Plastic Injection / Rubber Extruder Machine
Air Compressor
Gear Box Heating/Cooling
Application:
Evaporator
Condenser
Subcooler
Economizer
Oilcooler
Intercooler
Plate Material:
SUS316
Brazing Material:
Copper
Max number of plates(N):
220
Working Pressure:
16
Max working temperature:
200
Thickness(mm):
11.5+2.85*N
Weight(kg):
6.68+0.465*N
Connection-Male Thread(up to):
3"
Connection-Female Thread(up to):
2 1/2"
Connection-Solder(up to):
3 1/8"
Connection-Flange(up to):
3"

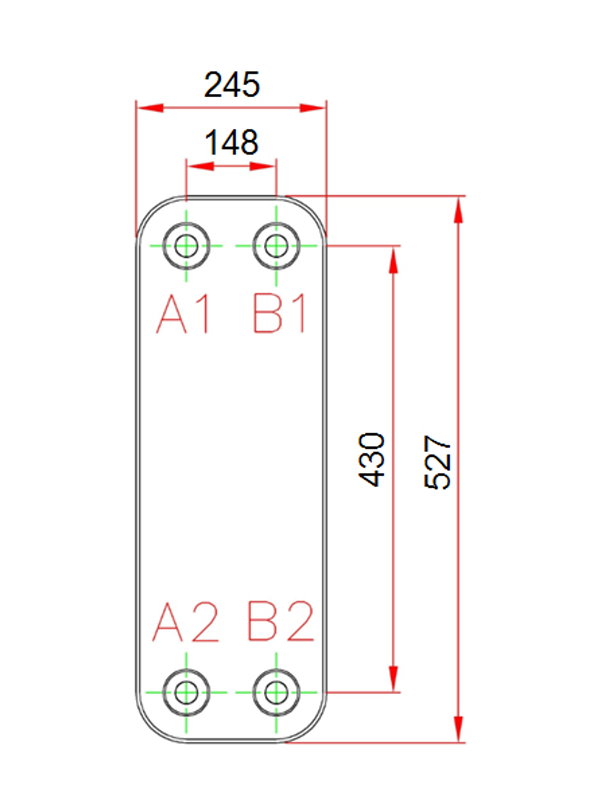

L1(mm):
527
L2(mm):
430
W1(mm):
245
W2(mm):
148
