Z400

Size

Connector

Z400

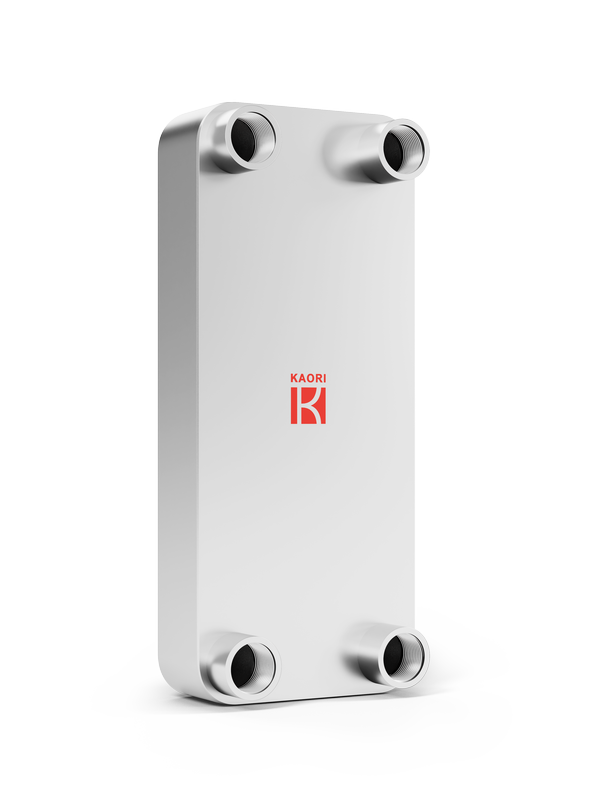

Diagnol Flow BPHE

Z series is designed with diagonal flow pattern, featured in high efficiency and wide range of application. It can be used to replace tube, shell and spiral heat exchangers. The unique pattern of diagonal flow utilizes the transfer area on the plate and refrains the risk of freezing, resulting from water remaining on the corner of plate. This design rises the durability and expands the feasiblity of the application , such as evaporator, condenser, oil cooler, and district heating system.

Industry: Chiller Heat Pump Reefer / Freezer Waste Heat Recovery Food Equipment Industry Pharmaceutical Semi Conductor Hydraulic Industry Machine Tool Bio-Tech Renewable Energy District Heating Boiler Fluid Cooling/Heating Data Center Infrastructure Plastic Injection / Rubber Extruder Machine Air Compressor Gear Box Heating/Cooling
Application: Evaporator Condenser Subcooler Economizer Intercooler
Plate Material: SUS316
Brazing Material: Copper
Max number of plates(N): 250
Working Pressure: 30
Max working temperature: 200
Thickness(mm): 14.0+2.38*N
Weight(kg): 25.32+0.89*N
Connection-Male Thread(up to): 3"
Connection-Female Thread(up to): 3"
Connection-Solder(up to): 3 1/8"
Connection-Flange(up to): 3"

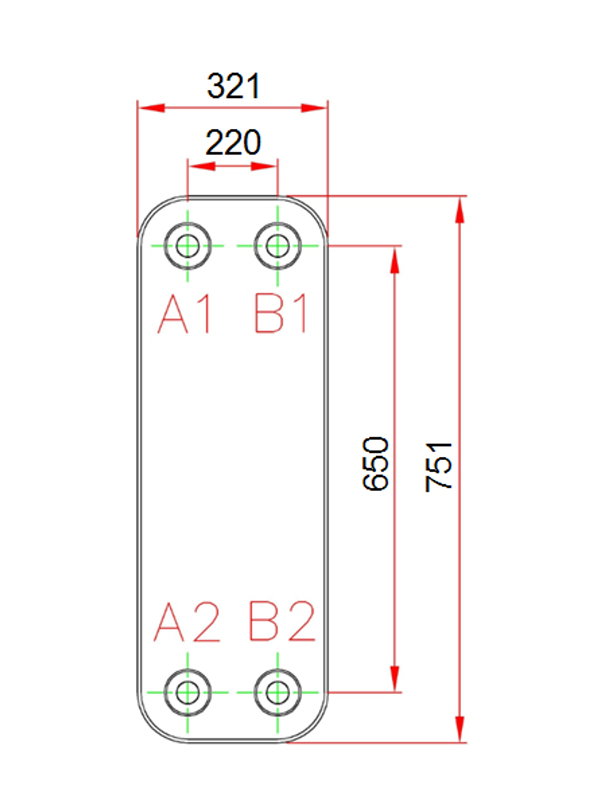

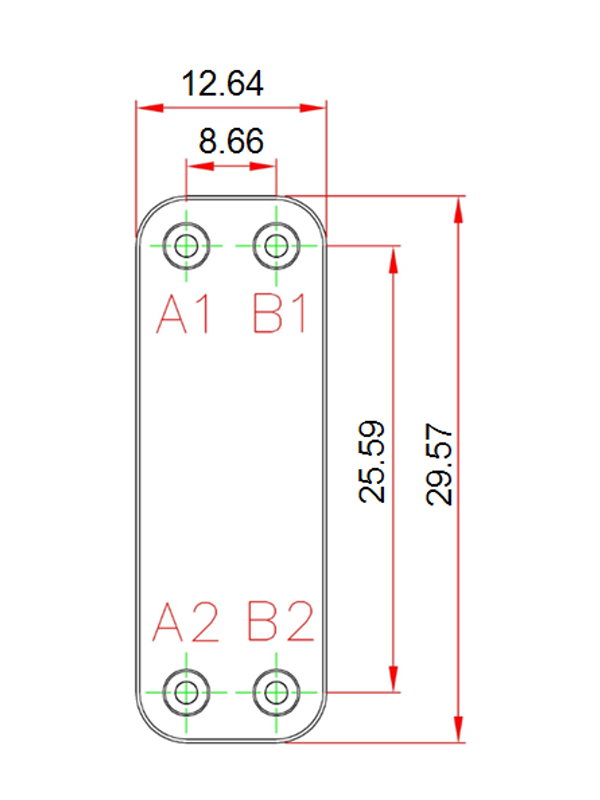

L1(mm): 751
L2(mm): 650
W1(mm): 321
W2(mm): 220
