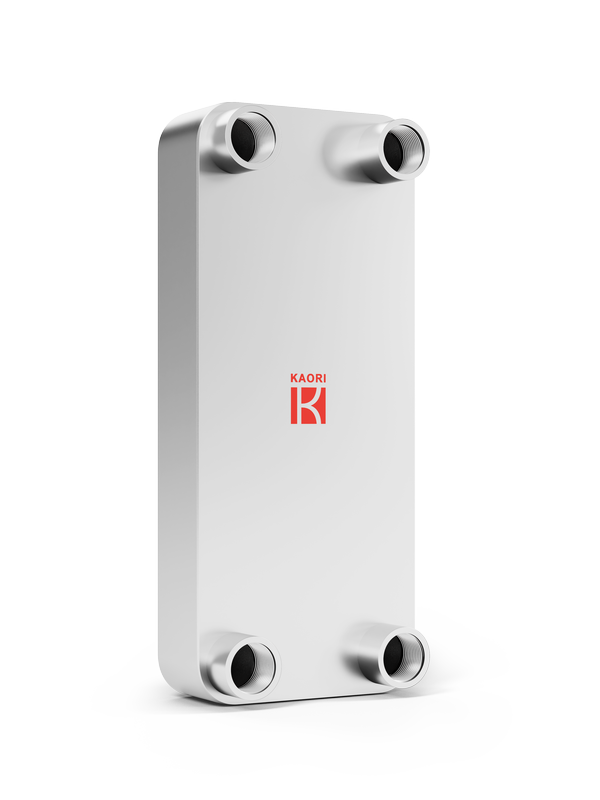

Z401
Z401
Diagnol Flow BPHE
Z series is designed with diagonal flow pattern, featured in high efficiency and wide range of application. It can be used to replace tube, shell and spiral heat exchangers.
Z401 is the high pressure resistence and dual circuit model, interacting with two units of compressors. Whether it is single or dual circuit, Z401 can perform ideally. To integrate with high efficient refrigerant, such as R410A, R134a, and R32, Z401 can sustain the pressure up to 45 BAR. The application of Z401 covers evaporator, condenser, oil cooler, and district heating system.
Industry:
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Food Equipment Industry
Pharmaceutical
Process Cooling/Heating
Semi Conductor
Hydraulic Industry
Machine Tool
Bio-Tech
Renewable Energy
District Heating
Boiler
Fluid Cooling/Heating
Data Center Infrastructure
Plastic Injection / Rubber Extruder Machine
Air Compressor
Gear Box Heating/Cooling
Application:
Evaporator
Condenser
Subcooler
Economizer
Intercooler
Plate Material:
SUS316
Brazing Material:
Copper
Max number of plates(N):
250
Working Pressure:
45
Max working temperature:
200
Thickness(mm):
23.0+2.38*N
Weight(kg):
30.96+0.89*N
Connection-Male Thread(up to):
3"
Connection-Female Thread(up to):
3"
Connection-Solder(up to):
3 1/8"
Connection-Flange(up to):
3"

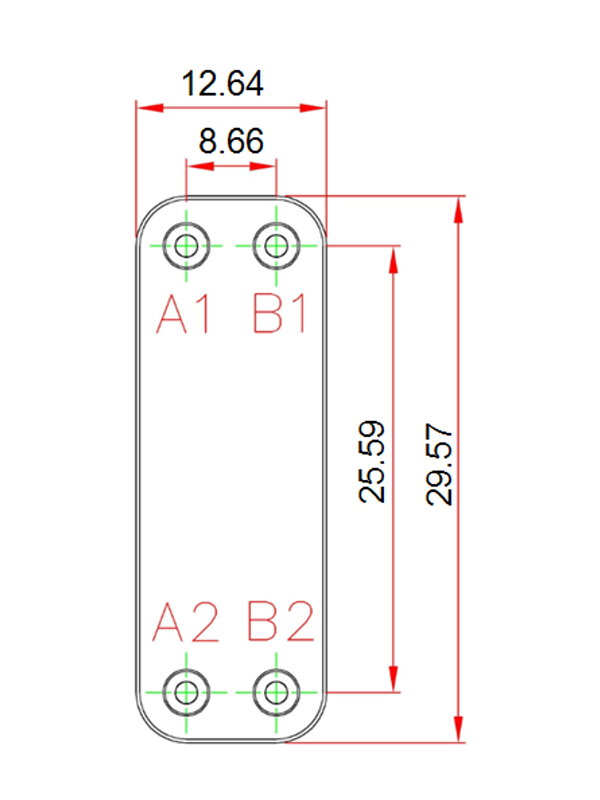

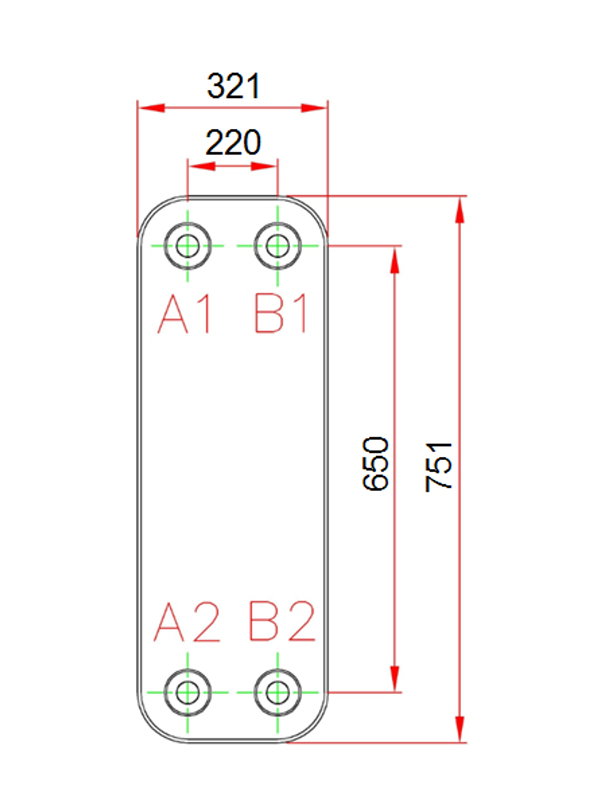

L1(mm):
751
L2(mm):
650
W1(mm):
321
W2(mm):
220
