C020
C020

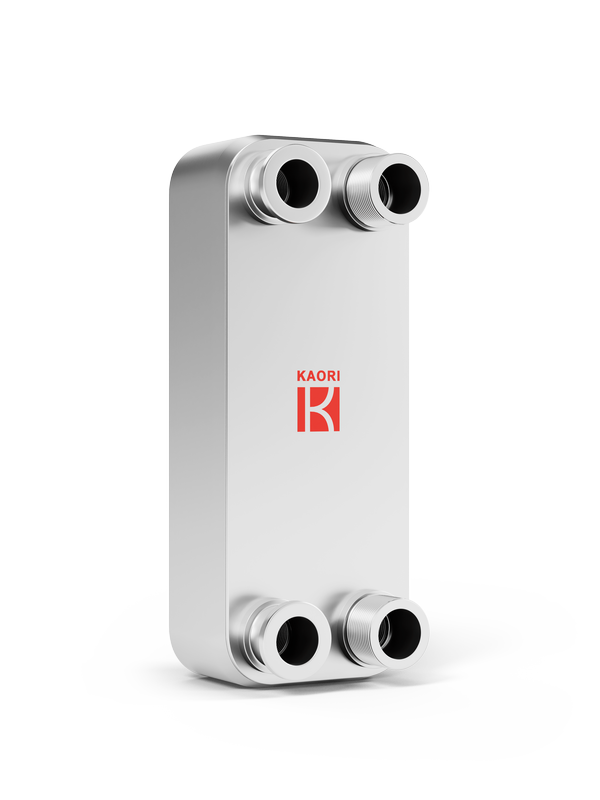

Ultra High Pressure BPHE
C type is the BPHE, dedicated to R744 (CO2), and compatible with heat pump and refrigeration system. The model has three types, including 70/100/140 BAR. The compact design plus outstanding thermal transfer efficiency and low pressure drop charaterize C series.
C020 can sustain 70 BAR and afford 8kW heat exchange. It is suitable for evaporator and condenser in refrigeration and freezing storage.
Industry：
Chiller
Heat Pump
Reefer / Freezer
Food Equipment Industry
Pharmaceutical
Process Cooling/Heating
Semi Conductor
Hydraulic Industry
Machine Tool
Bio-Tech
Renewable Energy
Application：
Evaporator
Condenser
Subcooler
Economizer
Intercooler
Plate Material：
SUS316
Brazing Material：
Copper
Max number of plates(N)：
60
Working Pressure：
70
Max working temperature：
200
Thickness(mm)：
9.5+1.1*N
Weight(kg)：
1.12+0.042N
Connection-Solder(up to)：
Depends on working condition

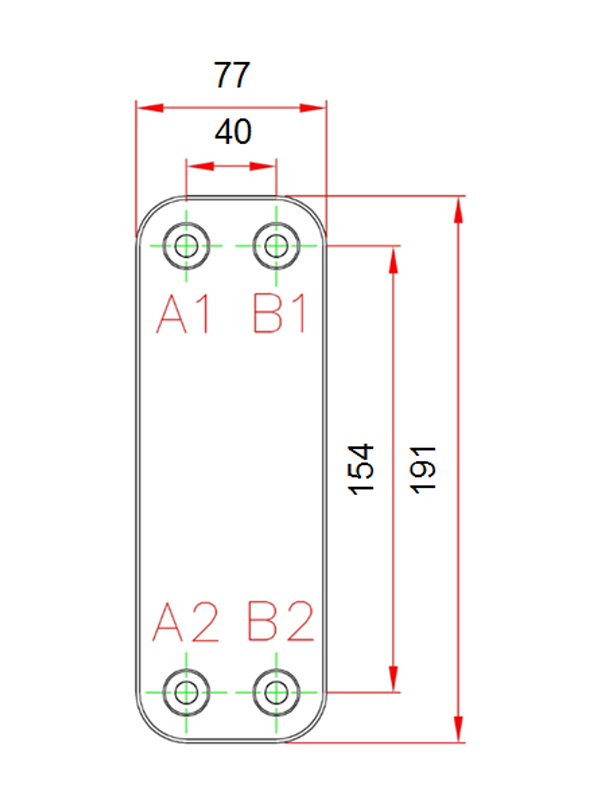

L1(mm)：
191
L2(mm)：
154
W1(mm)：
77
W2(mm)：
40
