C095

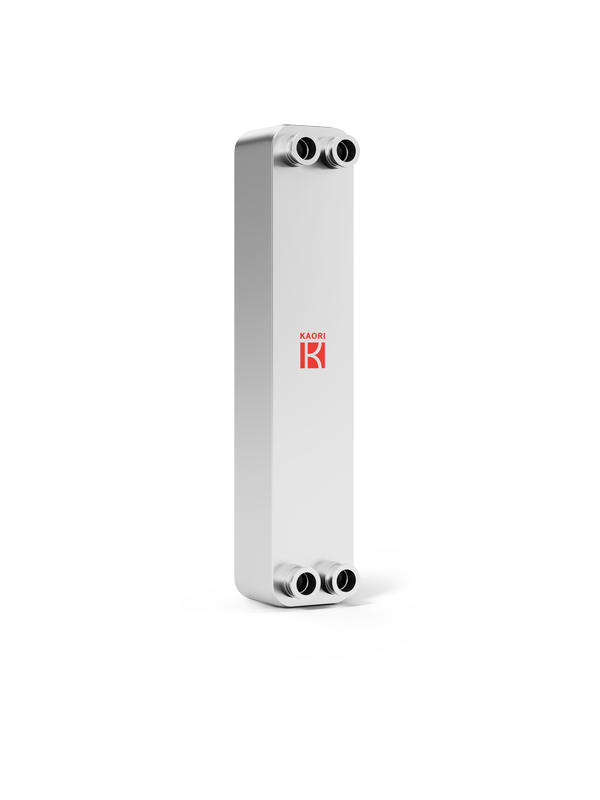

Ultra High Pressure BPHE

C type is the BPHE, dedicated to R744 (CO2), and compatible with heat pump and refrigeration system. The model has three types, including 70/100/140 BAR. The compact design plus outstanding thermal transfer efficiency and low pressure drop charaterize C series.

C095 can sustain 70BAR. It is suitable for evaporator and condenser in refrigeration and freezing storage.

Industry: Chiller Heat Pump Reefer / Freezer Food Equipment Industry Pharmaceutical Process Cooling/Heating Semi Conductor Hydraulic Industry Machine Tool Bio-Tech Renewable Energy
Application: Condenser Subcooler Saver Intercooler
Heat Load(up to)kW: 52.74
Plate Material: SUS316
Brazing Material: Copper
Max number of plates(N): 110
Working Pressure: 70
Min test pressure(bar): 100
Max working temperature: 200
Max flow_rate: 260
Plate Heat Transfer Area: 0.0475
Thickness(mm): 13.2+2.16*N
Weight(kg): 5.52+0.320*N
Connection-Solder(up to): Depends on working condition

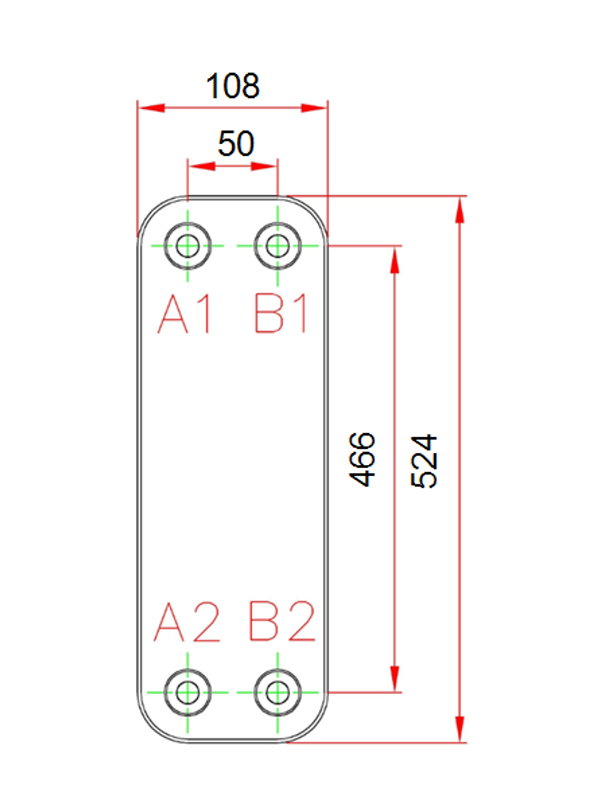

L1(mm): 524
L2(mm): 466
W1(mm): 108
W2(mm): 50

C type is the BPHE, dedicated to R744 (CO2), and compatible with heat pump and refrigeration system. The model has three types, including 70/100/140 BAR. The compact design plus outstanding thermal transfer efficiency and low pressure drop charaterize C series.

C095 can sustain 70BAR. It is suitable for evaporator and condenser in refrigeration and freezing storage.
