C202

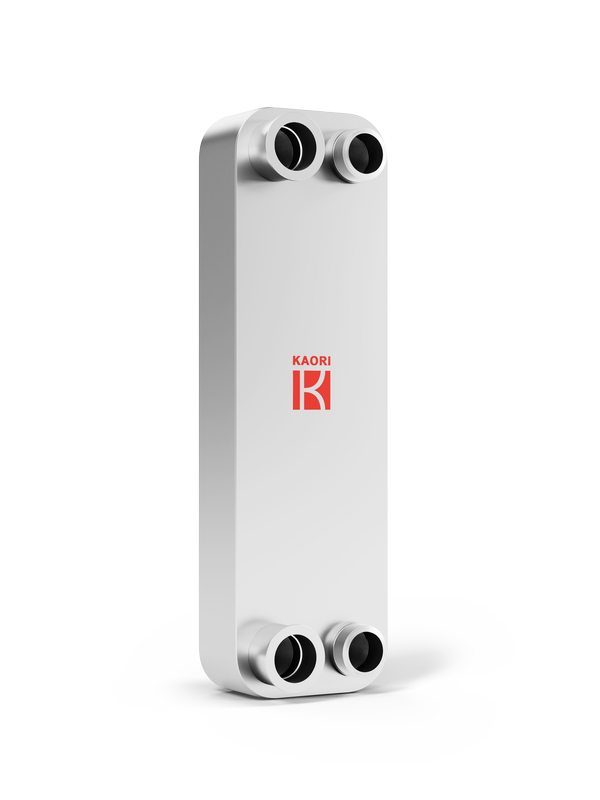

Ultra High Pressure BPHE

C type is the CBE, dedicated to R744 (CO2), and compatible with heat pump and refrigeration system. The model has three types, including 70/100/140 BAR. The compact design plus outstanding thermal transfer efficiency and low pressure drop charaterize C series.

C202 can sustain 140BAR and afford the pressure caused by R744 as thermal media. This capacity delights the COP value and results in "0 "ODP to protect the environment where we live. C202 can work well with pre-cooler and pervasive in various kinds of residential heat pump.

Industry: Chiller Heat Pump Reefer / Freezer Food Equipment Industry Pharmaceutical Process Cooling/Heating Semi Conductor Hydraulic Industry Machine Tool Bio-Tech Renewable Energy
Application: Evaporator Condenser Subcooler Saver Intercooler
Heat Load(up to)kW: 140.64
Plate Material: SUS316
Brazing Material: Copper
Max number of plates(N): 160
Working Pressure: 140
Min test pressure(bar): 200
Max working temperature: 200
Max flow_rate: 720
Plate Heat Transfer Area: 0.095
Thickness(mm): 14.0+2.15*N
Weight(kg): 12.41+0.755*N
Connection-Solder(up to): Depends on working condition

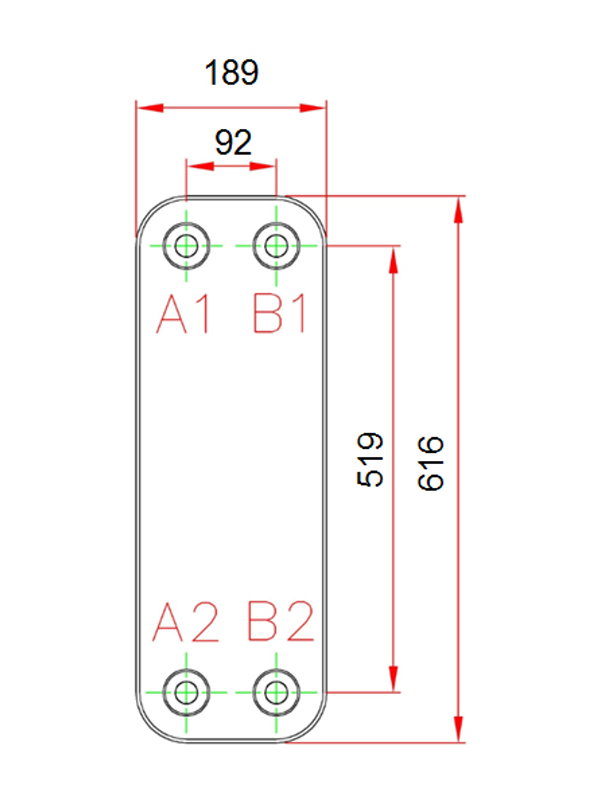

L1(mm): 616
L2(mm): 519
W1(mm): 189
W2(mm): 92

C type is the CBE, dedicated to R744 (CO2), and compatible with heat pump and refrigeration system. The model has three types, including 70/100/140 BAR. The compact design plus outstanding thermal transfer efficiency and low pressure drop charaterize C series.

C202 can sustain 140BAR and afford the pressure caused by R744 as thermal media. This capacity delights the COP value and results in "0 "ODP to protect the environment where we live. C202 can work well with pre-cooler and pervasive in various kinds of residential heat pump.
