E015

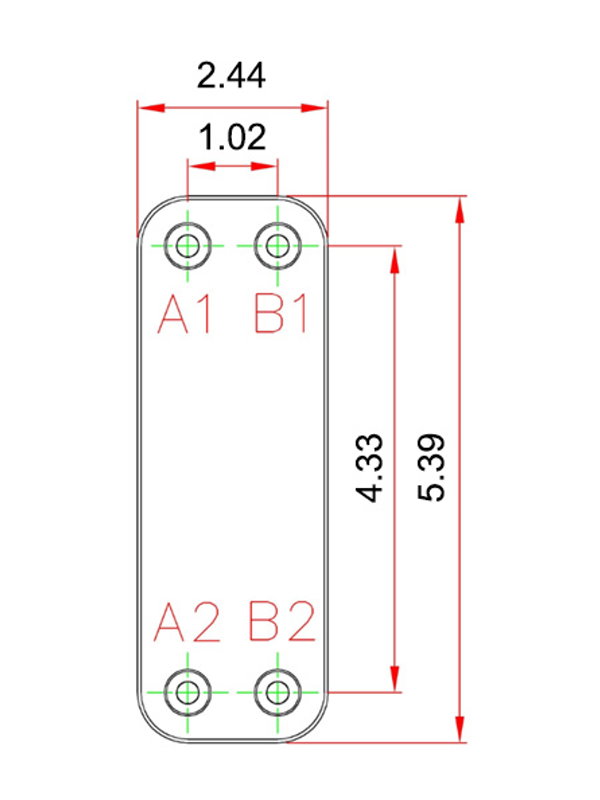

Size

Connector

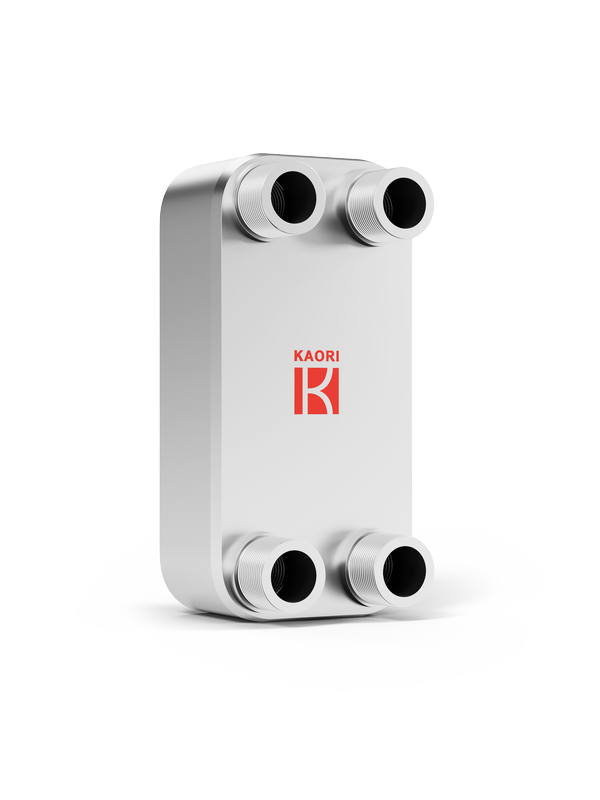

E015

Low Pressure BPHE

E series is designed with integration for water-to-water fluid in flow volume. E015 has the compact size, causing turbulent flow to ensure high thermal exchange efficiency. E015 is the reliable solution to save the energy for gas boiler.

Industry: Solar Heating Floor Heating Snow Melting District Heating Boiler Fluid Cooling/Heating Data Center Infrastructure
Application: Other
Plate Material: SUS304
Brazing Material: Copper
Max number of plates(N): 40
Working Pressure: 20
Max working temperature: 200
Thickness(mm): 9.0+1.8*N
Weight(kg): 0.21+0.036*N
Connection-Male Thread(up to): 3/4"

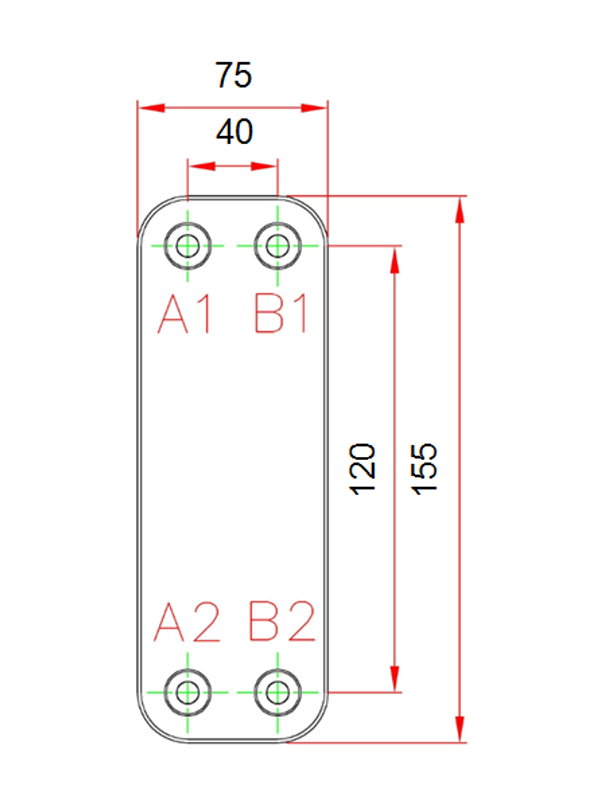

L1(mm): 155
L2(mm): 120
W1(mm): 75
W2(mm): 40

E series is designed with integration for water-to-water fluid in flow volume. E015 has the compact size, causing turbulent flow to ensure high thermal exchange efficiency. E015 is the reliable solution to save the energy for gas boiler.
