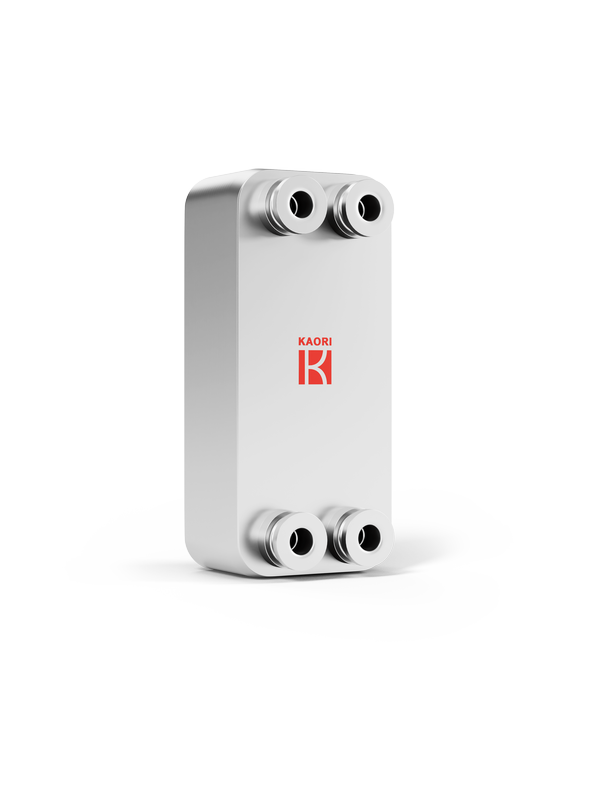

E010
E010
Low Pressure BPHE
E series is designed with integration for water-to-water fluid in flow volume. E010 has the compact size, causing turbulent flow to ensure high thermal exchange efficiency. E010 is the reliable solution to save the energy for gas boiler.
Industry:
Solar Heating
Floor Heating
Snow Melting
District Heating
Fluid Cooling/Heating
Data Center Infrastructure
Application:
Other
Plate Material:
SUS316
Brazing Material:
Copper
Max number of plates(N):
40
Working Pressure:
20
Max working temperature:
200
Thickness(mm):
6.5+1.7*N
Weight(kg):
0.26+0.024*N
Connection-Female Thread(up to):
1/2"

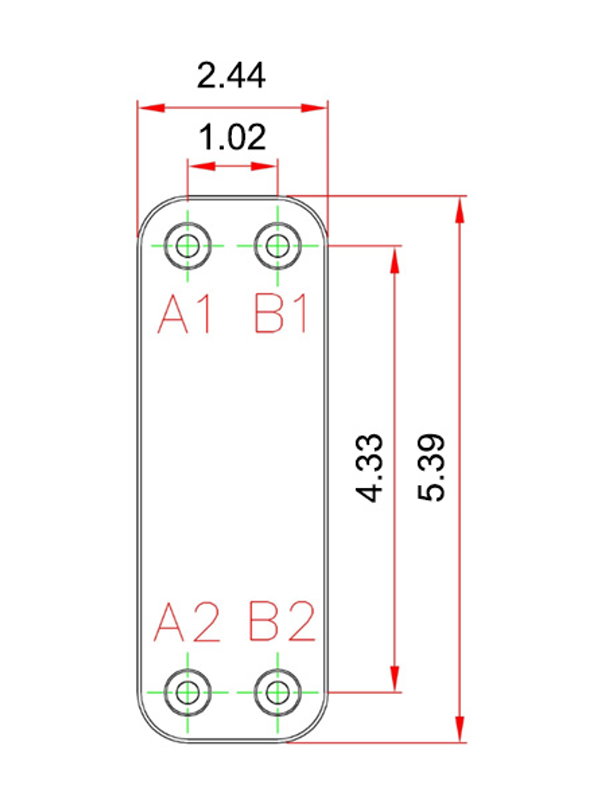

L1(mm):
136
L2(mm):
110
W1(mm):
61
W2(mm):
27
