E060

Size

Connector

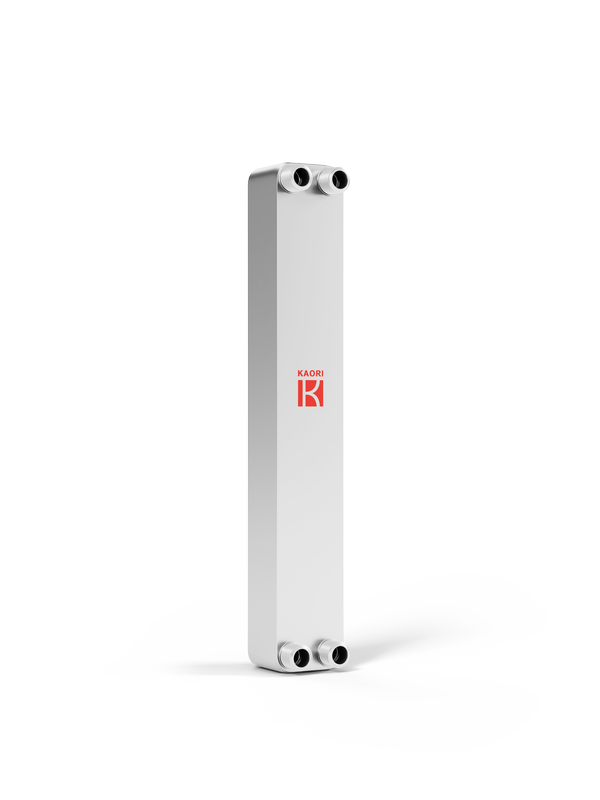

E060

Gas Boiler BPHE

E series is designed with integration for water-to-water fluid in flow volume. E060 has the compact size, causing turbulent flow to ensure high thermal exchange efficiency. E060 is the reliable solution to save the energy for gas boiler, district heating system, heat pump, and solar panel generator.

Industry: Solar Heating Floor Heating Snow Melting District Heating Boiler Fluid Cooling/Heating Data Center Infrastructure
Application: Other
Plate Material: SUS316
Brazing Material: Copper
Max number of plates(N): 40
Working Pressure: 20
Max working temperature: 200
Thickness(mm): 9.0+2.30*N
Weight(kg): 0.66+0.100*N
Connection-Male Thread(up to): 3/4"
Connection-Female Thread(up to): 1/2"
Connection-Solder(up to): 3/4"

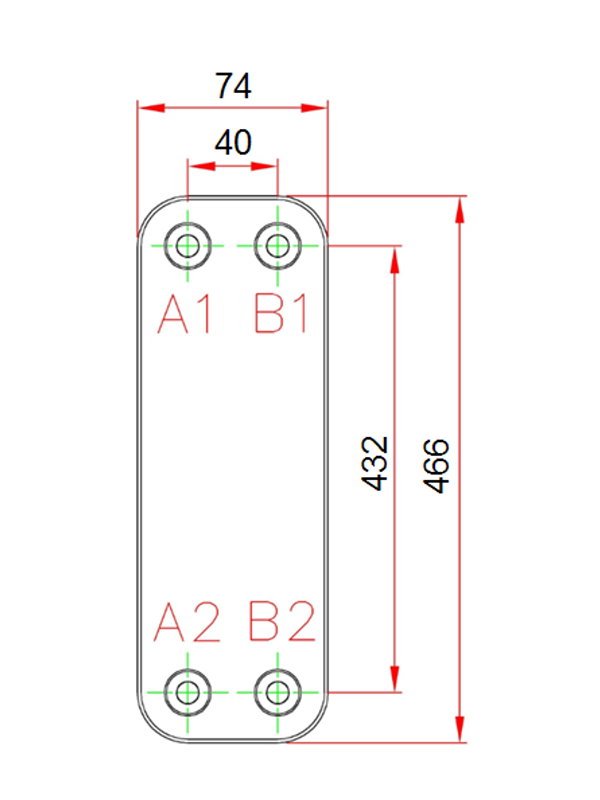

L1(mm): 466
L2(mm): 432
W1(mm): 74
W2(mm): 40

E series is designed with integration for water-to-water fluid in flow volume. E060 has the compact size, causing turbulent flow to ensure high thermal exchange efficiency. E060 is the reliable solution to save the energy for gas boiler, district heating system, heat pump, and solar panel generator.
