F015
F015

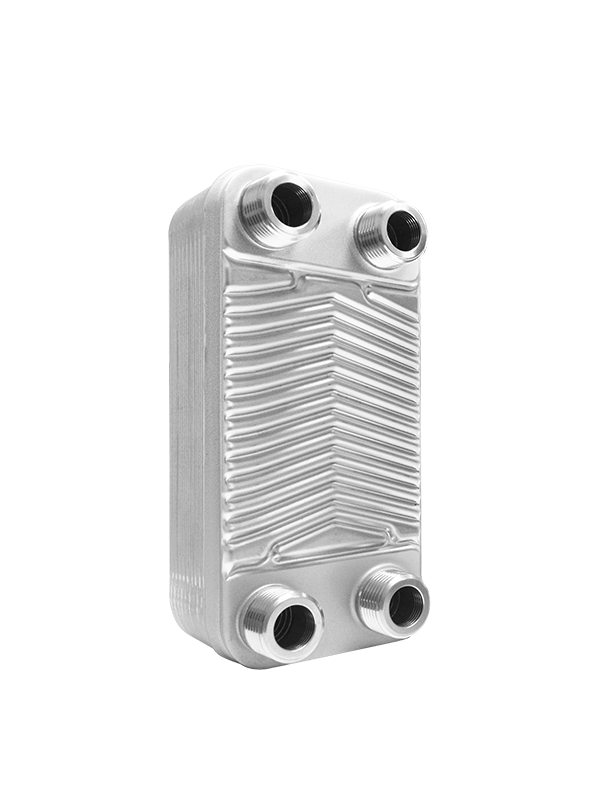

Low Pressure BPHE
F series is the light weight BPHE, dedicated to small flow volume and thermal exchange between water and water. It provides the reliable energy saving solution for gas boiler, district heating system, heat pump. F015 weighs less but performs the same. The light weight reinforces its advantage in costs and prices.
Industry：
Solar Heating
Floor Heating
Snow Melting
District Heating
Boiler
Fluid Cooling/Heating
Data Center Infrastructure
Application：
Other
Plate Material：
SUS316
SUS304
Brazing Material：
Copper
Max number of plates(N)：
40
Working Pressure：
20
Max working temperature：
200
Thickness(mm)：
10.5+1.8*(N-2)
Weight(kg)：
0.21+0.036*(N-2)
Connection-Male Thread(up to)：
1/2"

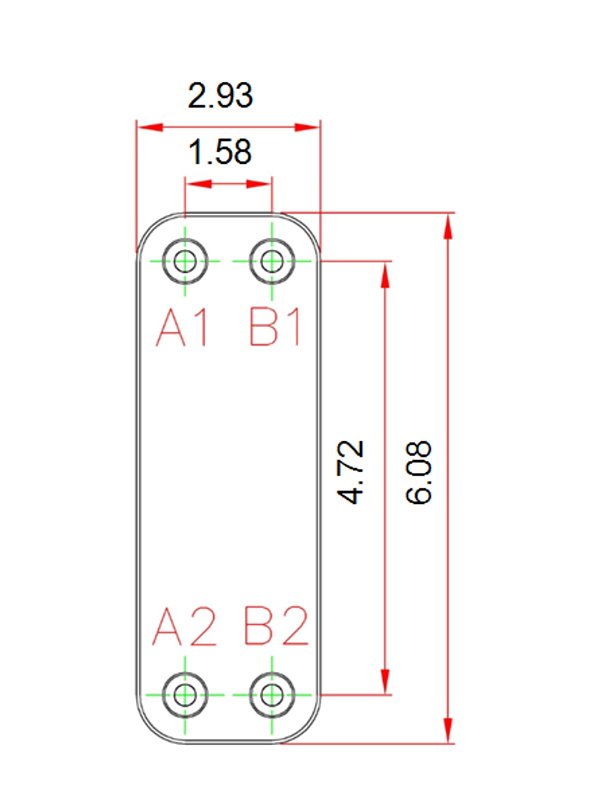

L1(mm)：
155
L2(mm)：
120
W1(mm)：
75
W2(mm)：
40
