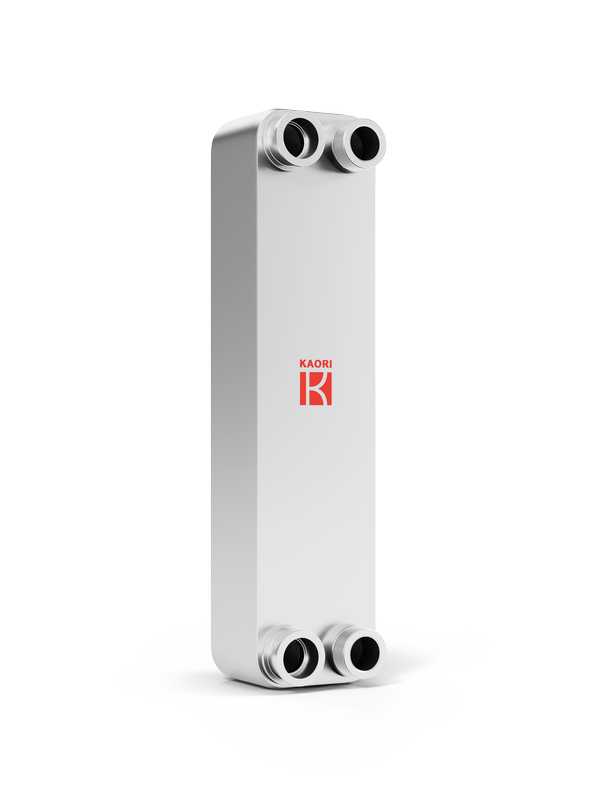

Impact Resistant BPHE
I series is the BPHE model with enforced structure to resist thermal shock and pressure shock caused by either the drastic temperature gap in cooling&heating system or the physical burst from the oil in hydraulic system. I series can satisfy the users who have high requriement for security and reliability.
I105 can be equipped with 1 1/2" connection and afford the flow to 310LPM. It is suitable for the cooler, consuming the heat load to 280kW.
Industry：
Food Equipment Industry
Pharmaceutical
Hydraulic Industry
Bio-Tech
Renewable Energy
Fluid Cooling/Heating
Plastic Injection / Rubber Extruder Machine
Application：
Economizer
Oilcooler
Plate Material：
SUS316
Brazing Material：
Copper
Max number of plates(N)：
140
Working Pressure：
30
Min test pressure(bar)：
43
Max working temperature：
200
Max flow_rate：
310
Plate Heat Transfer Area：
0.0533
Thickness(mm)：
10.0+2.40*N
Weight(kg)：
3.44+0.237*N
Connection-Male Thread(up to)：
1 1/2"
Connection-Female Thread(up to)：
1 1/4"
Connection-Solder(up to)：
1 5/8"

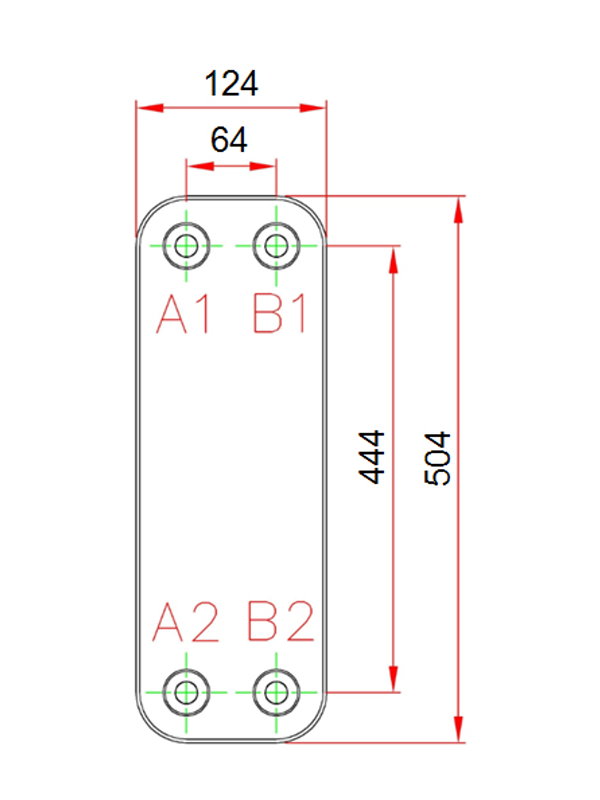

L1(mm)：
504
L2(mm)：
444
W1(mm)：
124
W2(mm)：
64
