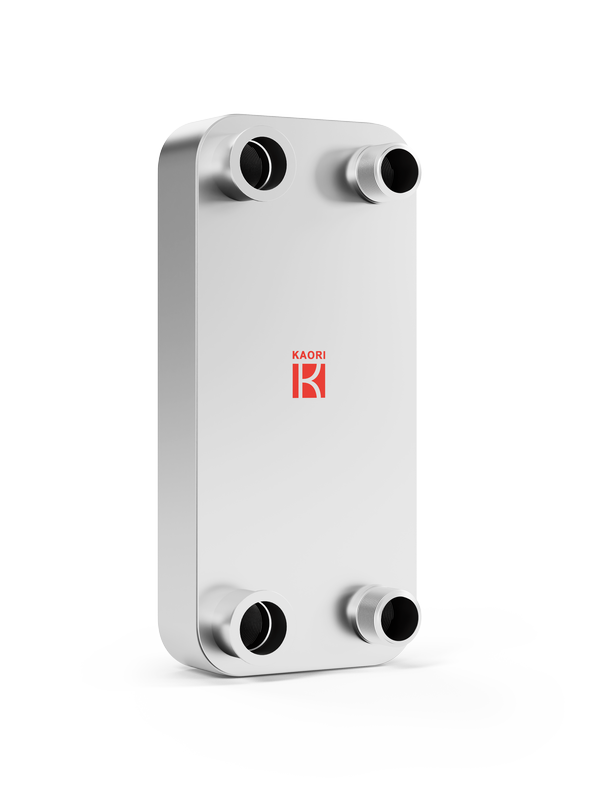

I210
I210
Impact Resistant BPHE
I series is the BPHE model with enforced structure to resist thermal shock and pressure shock caused by either the drastic temperature gap in cooling&heating system or the physical burst from the oil in hydraulic system. I series can satisfy the users who have high requriement for security and reliability. Compared with tube & shell.
I210 is featured in simple configuration, reliable fixture, and efficient performance. The compact design and unit price also prevail to the costs of tube & shell. I210 can be used in oil cooling, gas boiler, and heat recovery system.
Industry：
Food Equipment Industry
Pharmaceutical
Hydraulic Industry
Bio-Tech
Renewable Energy
Fluid Cooling/Heating
Plastic Injection / Rubber Extruder Machine
Application：
Economizer
Oilcooler
Plate Material：
SUS316
Brazing Material：
Copper
Max number of plates(N)：
220
Working Pressure：
16
Min test pressure(bar)：
23
Max working temperature：
200
Max flow_rate：
1240
Plate Heat Transfer Area：
0.1036
Thickness(mm)：
11.5+2.85*N
Weight(kg)：
6.59+0.49*N
Connection-Male Thread(up to)：
3"
Connection-Female Thread(up to)：
2 1/2"
Connection-Solder(up to)：
1 5/8"

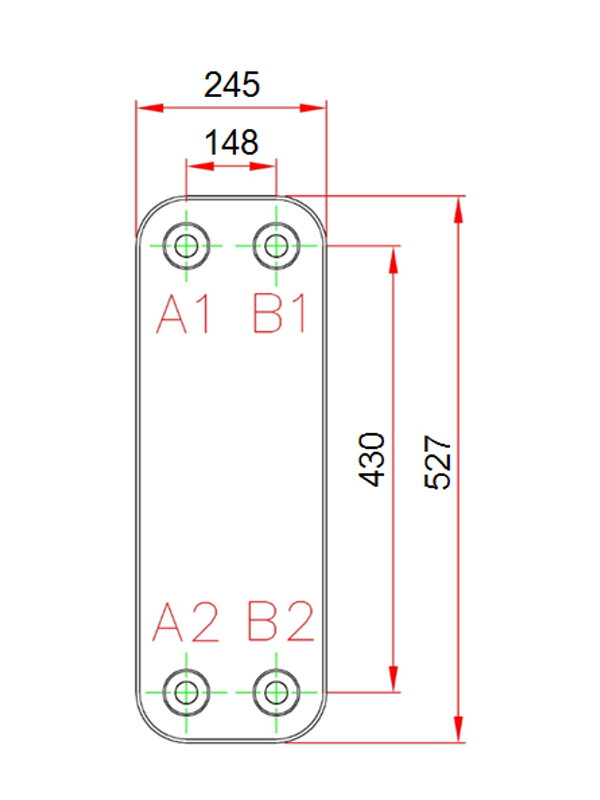

L1(mm)：
527
L2(mm)：
430
W1(mm)：
245
W2(mm)：
148
