K070
K070

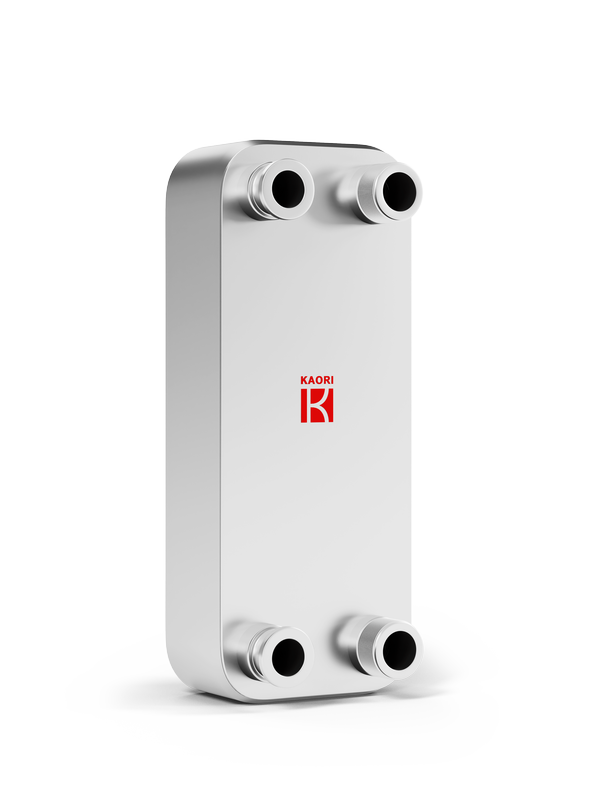

Standard Brazed Plate Heat Exchanger
K070 is mainly applied in indusry which generates heating or cooling power, especially PWT component in hydraulic system and evaporator, condenser, economizer and oil cooling in HVAC.
Industry:
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Food Equipment Industry
Pharmaceutical
Process Cooling/Heating
Semi Conductor
Hydraulic Industry
Machine Tool
Bio-Tech
Renewable Energy
District Heating
Boiler
Fluid Cooling/Heating
Plastic Injection / Rubber Extruder Machine
Air Compressor
Gear Box Heating/Cooling
Application:
Evaporator
Condenser
Subcooler
Economizer
Oilcooler
Intercooler
Plate Material:
SUS316
Brazing Material:
Copper
Max number of plates(N):
120
Working Pressure:
30
Max working temperature:
200
Thickness(mm):
10.0+2.38*N
Weight(kg):
1.38+0.134*N
Connection-Male Thread(up to):
1 1/2"
Connection-Female Thread(up to):
1 1/4"
Connection-Solder(up to):
1 3/8"

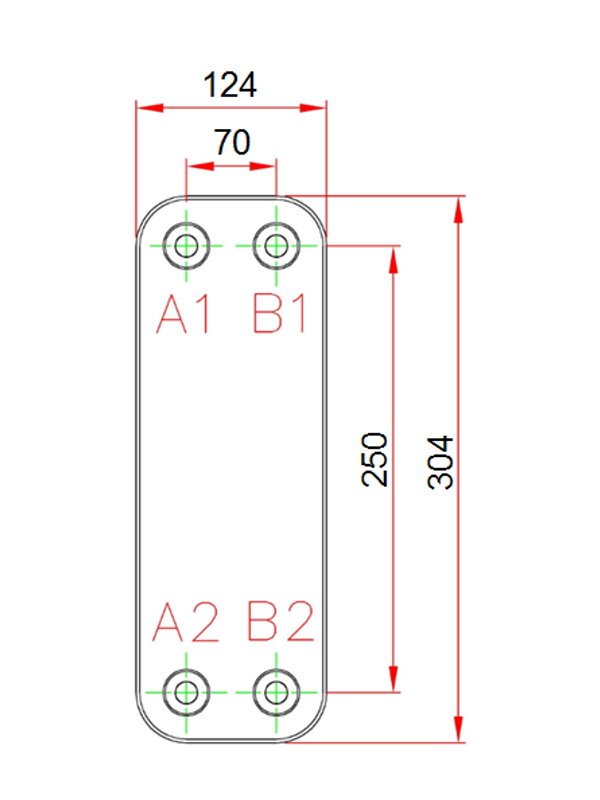

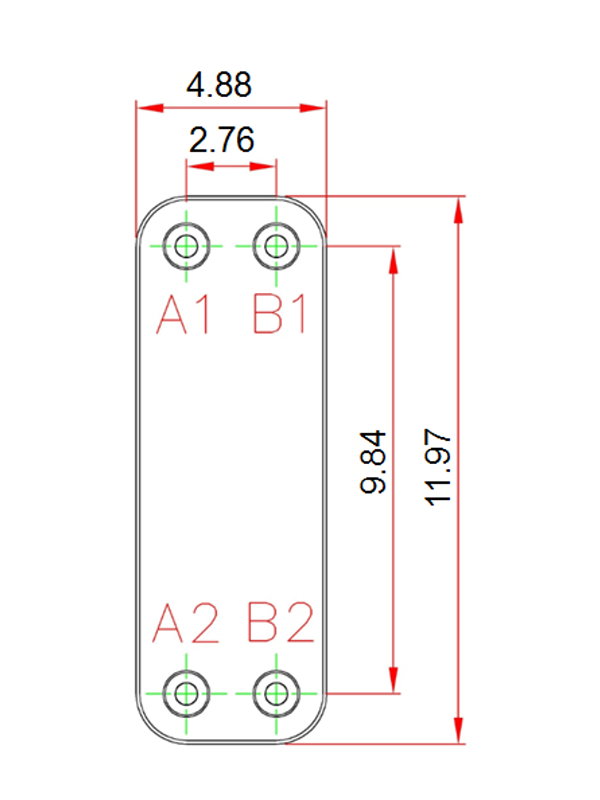

L1(mm):
304
L2(mm):
250
W1(mm):
124
W2(mm):
70
