B111
B111

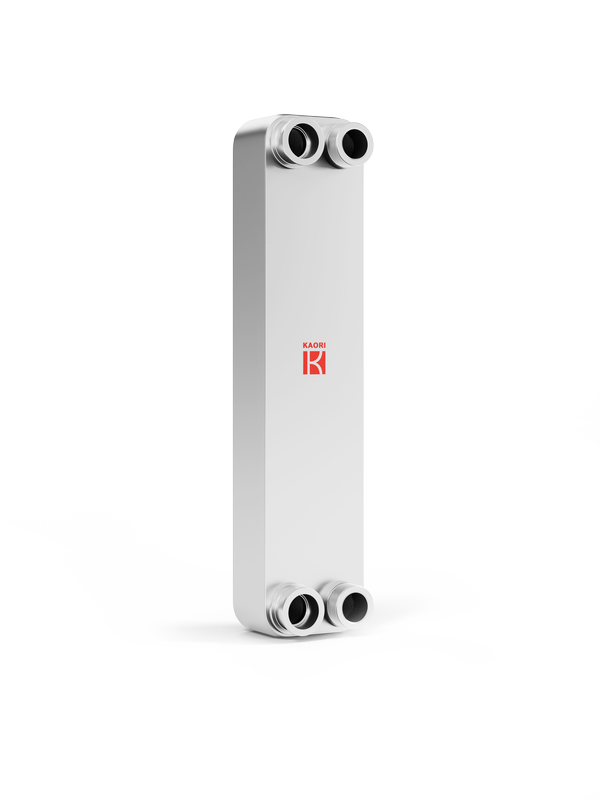

Asymmetric Brazed Plate Heat Exchanger
KAORI B111 design effectively helps to lower pressure drop by 25%, reduce refrigerant filling volume by 44%, increase water flow rate by 19% and cut the weight by up to 48%, these overcome common impact on water-side pressure drop while maximizing system performance, energy efficiency and reliability.
KAORI B1111design has a great benefit on heating, cooling and refrigeration systems that use climate-friendly refrigerants, such as R32, R454B and natural refrigerant R290. Reduces carbon dioxide emissions and equipment operating costs over its lifespan.
Industry:
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Fuel Cell
Food Equipment Industry
Pharmaceutical
Process Cooling/Heating
Semi Conductor
Hydraulic Industry
Machine Tool
Bio-Tech
Renewable Energy
Solar Heating
Floor Heating
Snow Melting
District Heating
Boiler
Fluid Cooling/Heating
Data Center Infrastructure
Plastic Injection / Rubber Extruder Machine
Application:
Evaporator
Condenser
Subcooler
Economizer
Oilcooler
Intercooler
Plate Material:
SUS316
SUS304
Brazing Material:
Copper
Max number of plates(N):
140
Working Pressure:
45
Max working temperature:
200
Thickness(mm):
12.5+1.85*N
Weight(kg):
4.13+0.017*N
Connection-Male Thread(up to):
1-1/4"
Connection-Female Thread(up to):
1"
Connection-Solder(up to):
1-1/8"

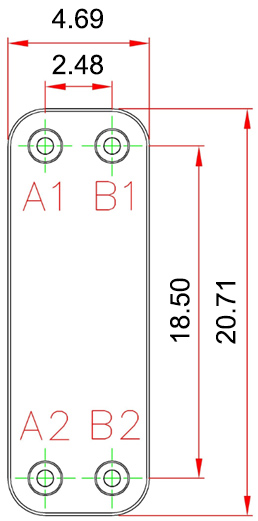

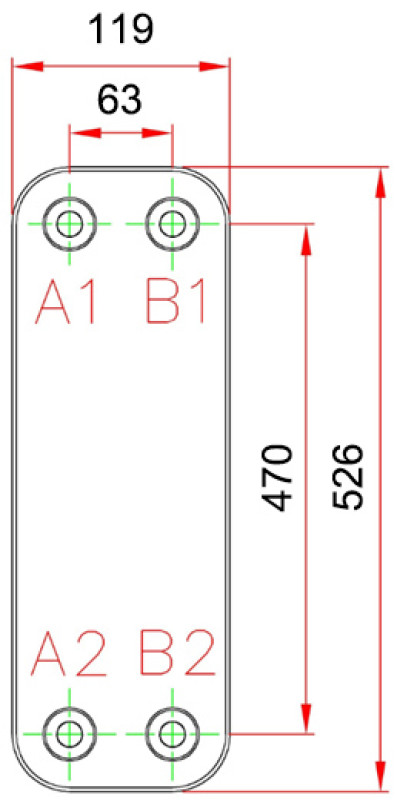

L1(mm):
526
L2(mm):
470
W1(mm):
119
W2(mm):
63
