KP0030 RPU + RDHx (Liquid / Air)

KP0030 RPU + RDHx (Liquid / Air) COVER.png

Key Features

  • No facility water required, could be easily  installed in current data center.

  • Remote control through SNMP

System Principle Description

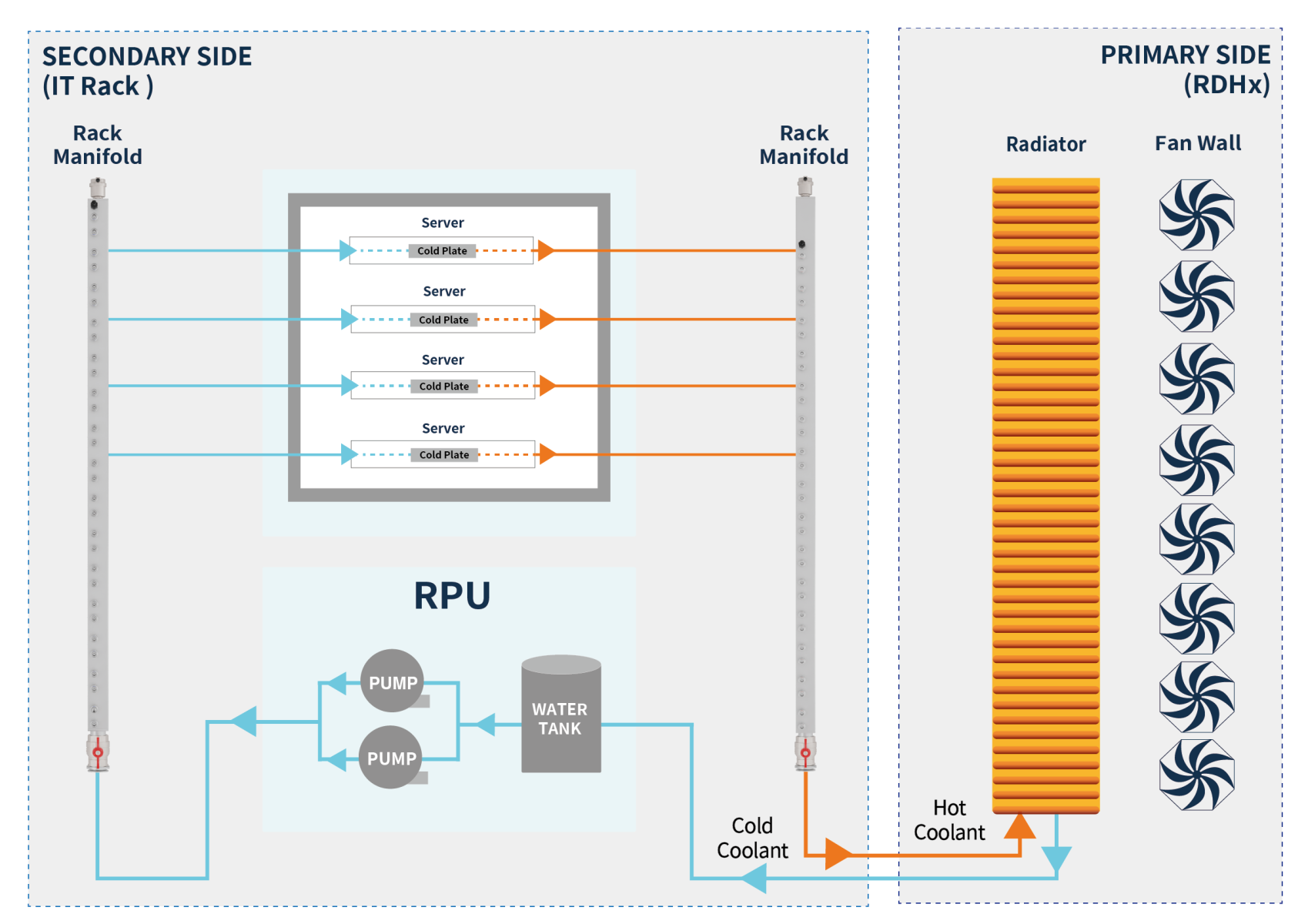

KP0030_System Diagram_RPU+RDHx.png

Rack Manifolds

  • These rack manifolds are suspended in the rear space of the cabinet, primarily providing cooling liquid circulation to each cold plate on the server.
  • Allowing a maximum of 2 cooling loops per 1U server.
  • 8-80 Channel is used with cabinets and can be customized for production.

Reservoir and Pumping Unit, RPU

  • The RPU is installed at the bottom of the cabinet, corresponding to the height of four 1U servers . It can be used in cabinets with EIA specifications of 4U or above.

  • A variety of control functions, easy to monitor the rotation speed and adjust the flow rate, temperature.
  • Reducing the cooling costs of the computer room, improving competitiveness and sustainable operations.

Finned tube heat exchangers

  • Use fin tubes instead of light tubes as the heat transfer surface to expand the heat exchange area and promote heat exchange efficiency.
  • Enhance the thermal conductivity by increasing the outer surface or inner surface
