M050
M050

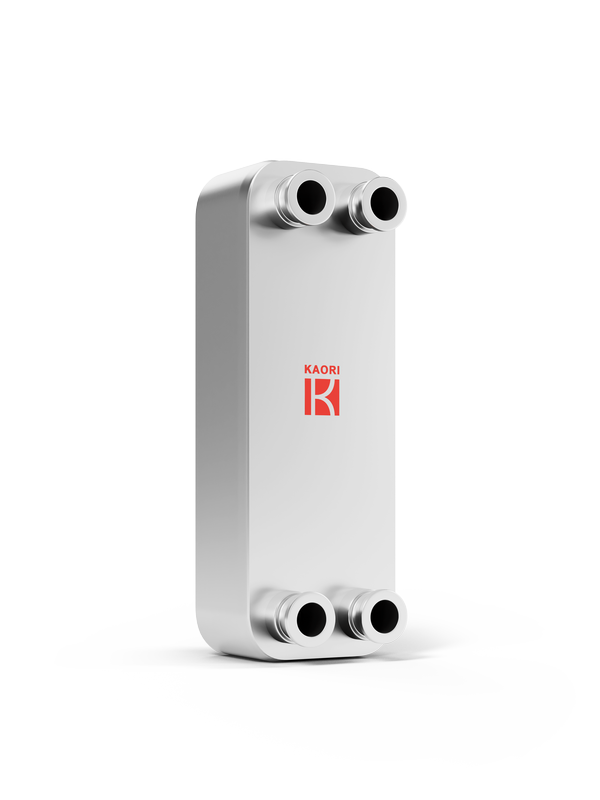

耐腐食性ブレージング式熱交換器
腐食に強いステンレスプレート(SMO254)を使用しております
Industry:
チラー
ヒートポンプ
リーファー/冷凍庫
スイミングプール
Application:
その他
Plate Material:
SMO254
Brazing Material:
ニッケル
Max number of plates(N):
80
Working Pressure:
10
Min test pressure(bar):
15
Max working temperature:
200
Max flow_rate:
240
Plate Heat Transfer Area:
0.0255
Thickness(mm):
10.0+2.40*N
Weight(kg):
1.04+0.136*N
Connection-Male Thread(up to):
1 1/4"
Connection-Female Thread(up to):
1"
Connection-Solder(up to):
1 1/8"

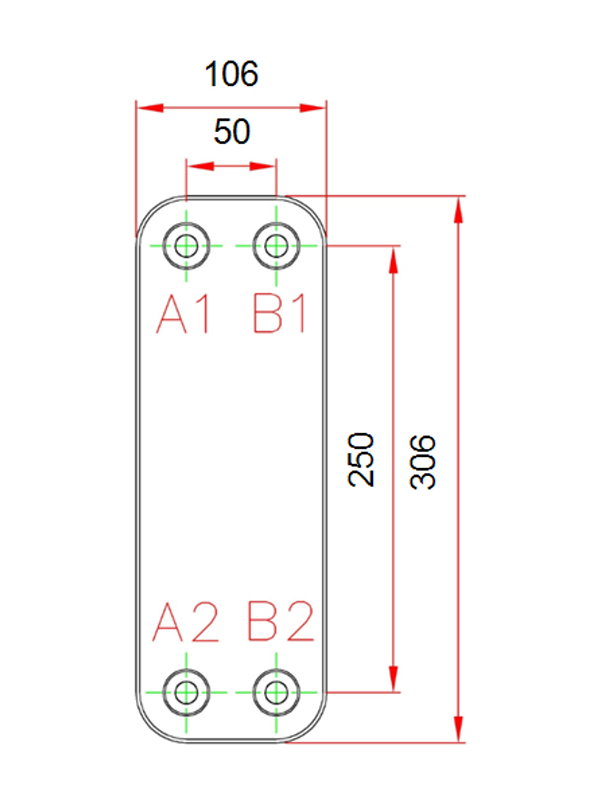

L1(mm):
306
L2(mm):
250
W1(mm):
106
W2(mm):
50
