M205
M205

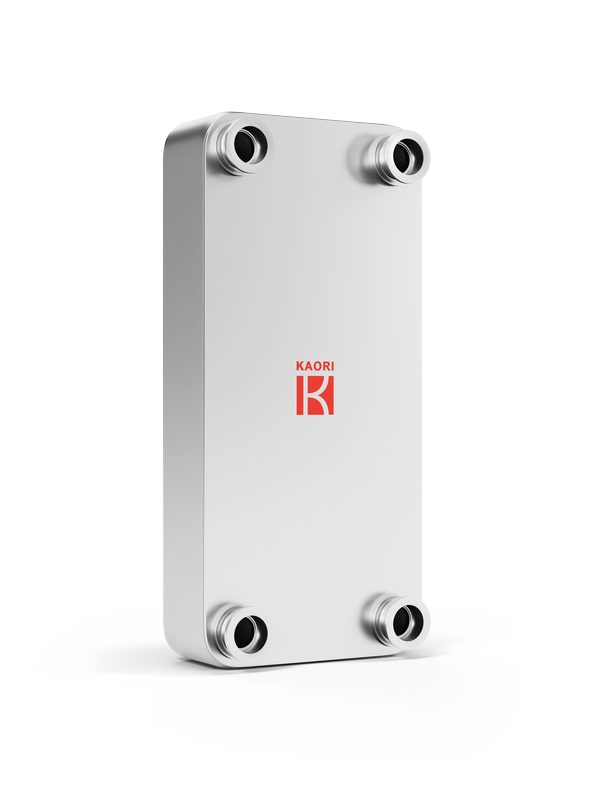

耐腐食性ブレージング式熱交換器
腐食に強いステンレスプレート(SMO254)を使用しております
Industry:
チラー
ヒートポンプ
リーファー/冷凍庫
スイミングプール
Application:
その他
Plate Material:
SMO254
Brazing Material:
ニッケル
Max number of plates(N):
140
Working Pressure:
10
Min test pressure(bar):
15
Max working temperature:
200
Max flow_rate:
580
Plate Heat Transfer Area:
0.1099
Thickness(mm):
11.5+2.40*N
Weight(kg):
6.27+0.544*N
Connection-Male Thread(up to):
2"
Connection-Female Thread(up to):
1 1/2"
Connection-Solder(up to):
2 1/8"
L1(mm):
528
L2(mm):
456
W1(mm):
246
W2(mm):
174
