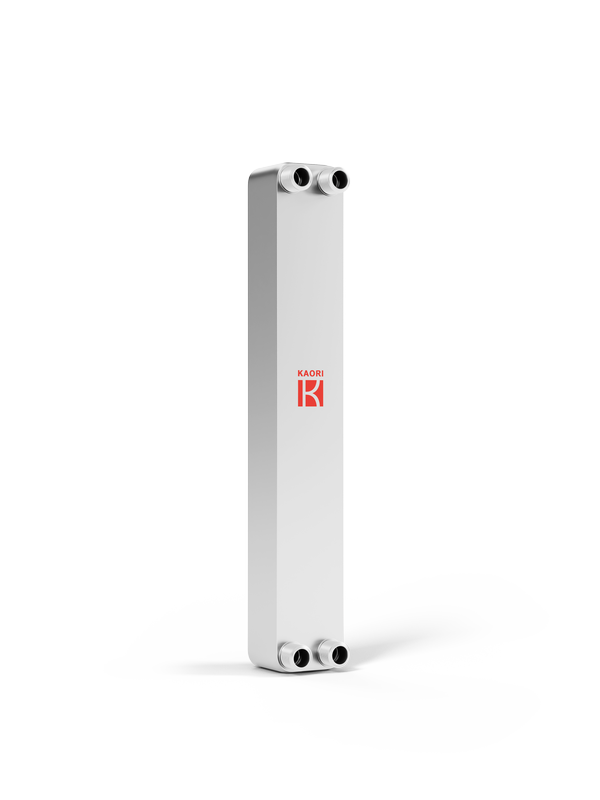

E060
E060
低压型
Industry:
太陽熱暖房
床暖房
融雪
地域暖房
ボイラー
流体の冷却/加熱
データセンターインフラストラクチャ
Application:
その他
Plate Material:
SUS316
Brazing Material:
銅
Max number of plates(N):
40
Working Pressure:
10
Min test pressure(bar):
15
Max working temperature:
200
Max flow_rate:
65
Plate Heat Transfer Area:
0.0302
Thickness(mm):
9.0+2.30*N
Weight(kg):
0.66+0.100*N
Connection-Male Thread(up to):
3/4"
Connection-Female Thread(up to):
1/2"
Connection-Solder(up to):
3/4"

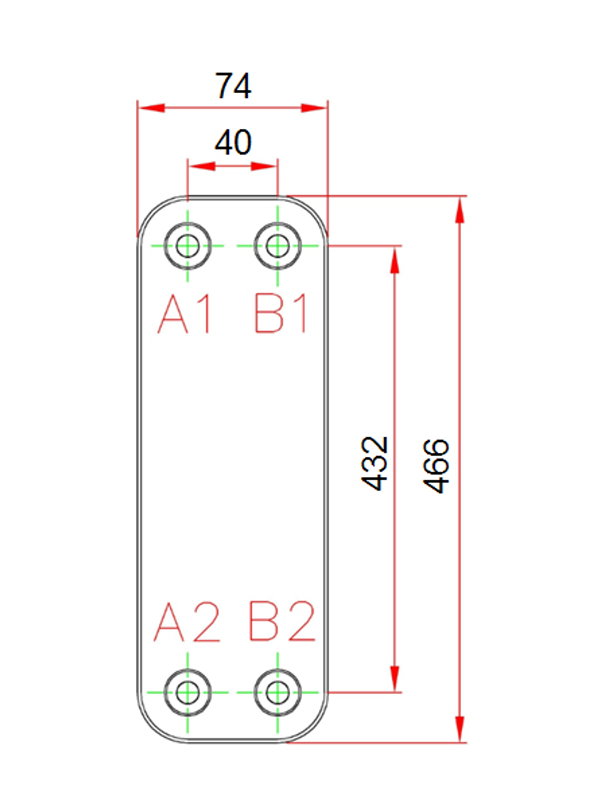

L1(mm):
466
L2(mm):
432
W1(mm):
74
W2(mm):
40
