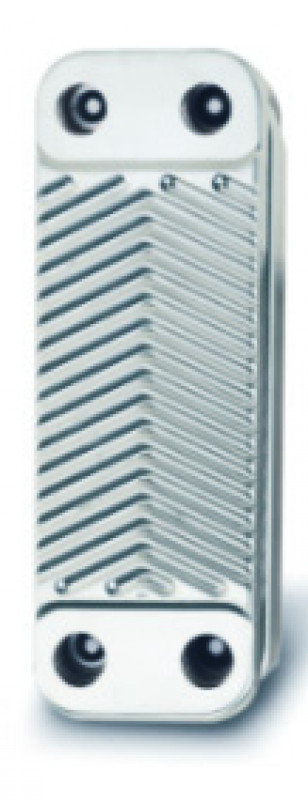

F015
F015
低压型
Industry:
太陽熱暖房
床暖房
融雪
地域暖房
ボイラー
流体の冷却/加熱
データセンターインフラストラクチャ
Application:
その他
Plate Material:
SUS304
Brazing Material:
銅
Max number of plates(N):
30
Working Pressure:
10
Min test pressure(bar):
15
Max working temperature:
200
Plate Heat Transfer Area:
0.0084
Thickness(mm):
10.5+1.8*(N-2)
Weight(kg):
0.21+0.036*(N-2)
Connection-Male Thread(up to):
1/2"

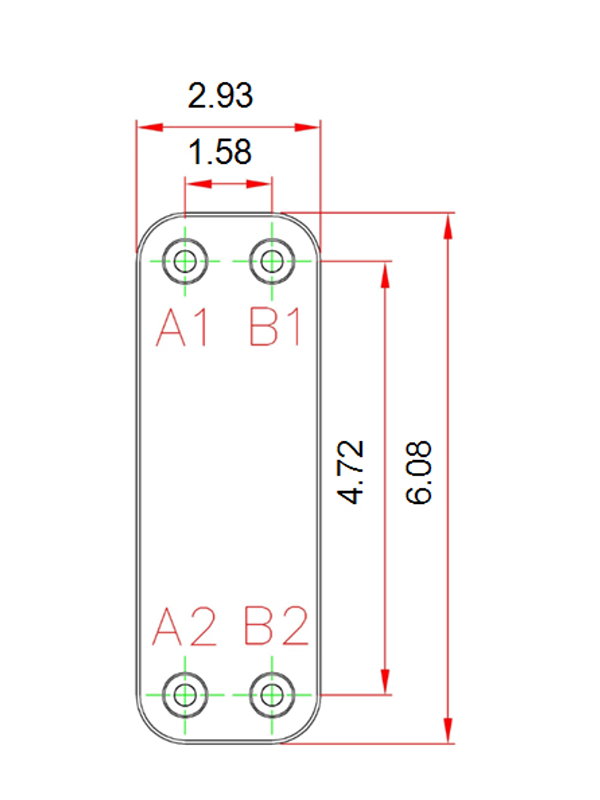

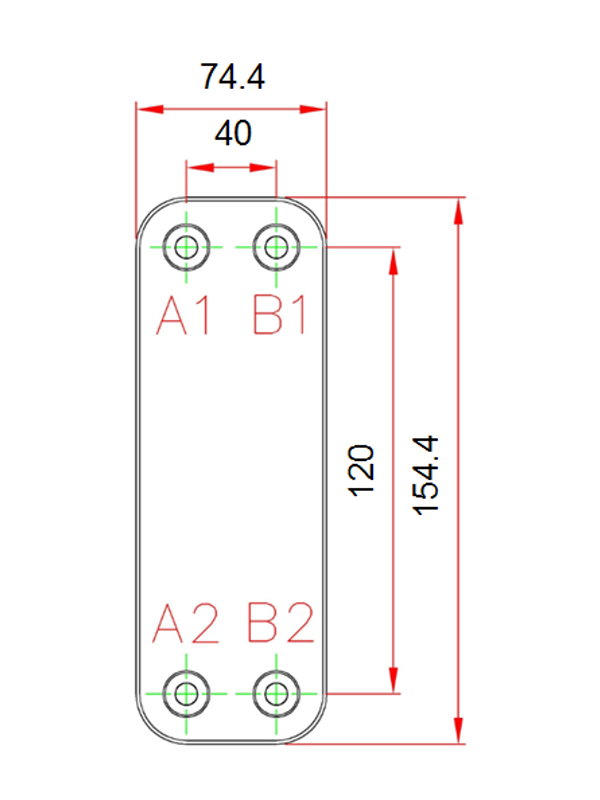

L1(mm):
155
L2(mm):
120
W1(mm):
75
W2(mm):
40
