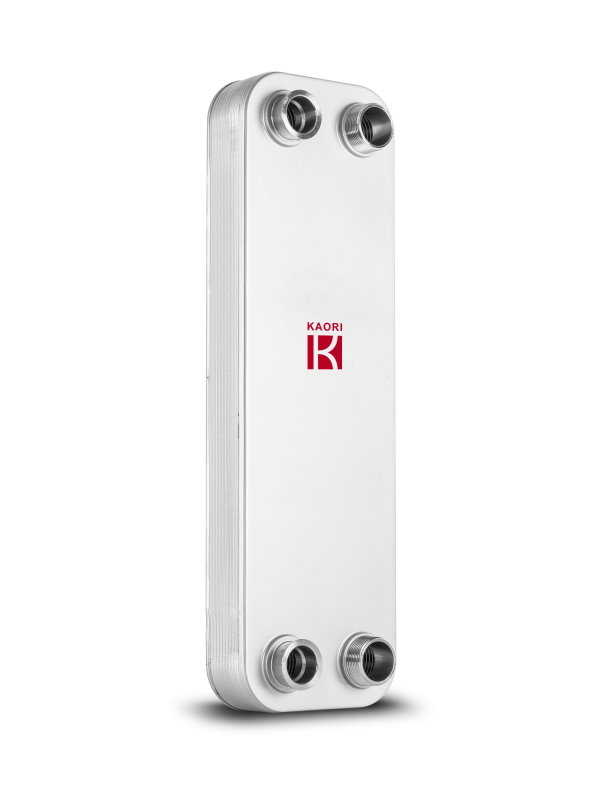

Ultra High Pressure BPHE
C type is the BPHE, dedicated to R744 (CO2), and compatible with heat pump and refrigeration system. The model has three types, including 70/100/140 BAR. The compact design plus outstanding thermal transfer efficiency and low pressure drop charaterize C series.
C200 can sustain 70BAR. It is suitable for evaporator and condenser in refrigeration and freezing storage.
Industry：
Enfriador
Bomba de calor
Refrigerador / Congelador
Industria de equipos alimentarios
Farmacéutico
Proceso de enfriamiento / calentamiento
Semiconductor
Industria Hidráulica
Herramienta de máquina
Biotecnología
Energía renovable
Application：
Evaporador
Condensador
Subenfriador
Ahorrador
Intercooler
Heat Load(up to)kW：
140.64
Plate Material：
SUS316
Brazing Material：
Cobre
Max number of plates(N)：
160
Working Pressure：
70
Min test pressure(bar)：
100
Max working temperature：
200
Max flow_rate：
720
Plate Heat Transfer Area：
0.095
Thickness(mm)：
14.0+2.15*N
Weight(kg)：
12.39+0.603*N
Connection-Solder(up to)：
Depends on working condition

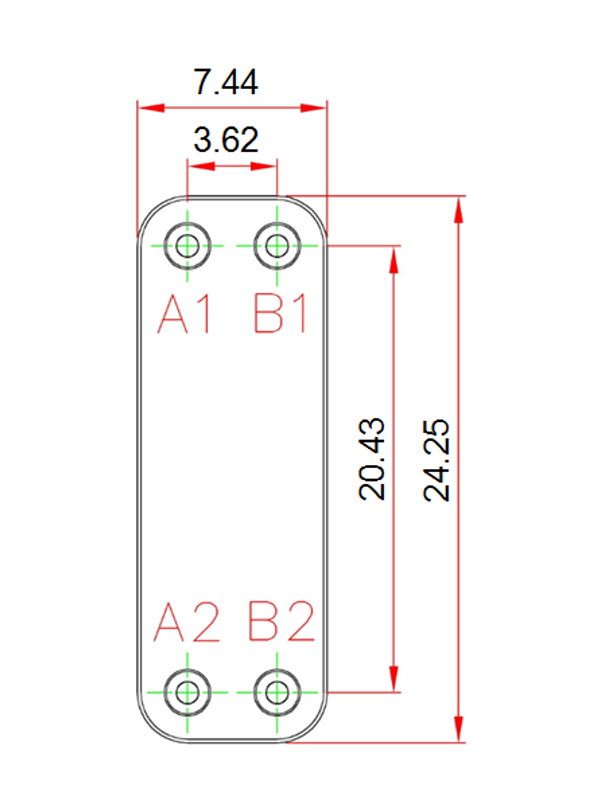

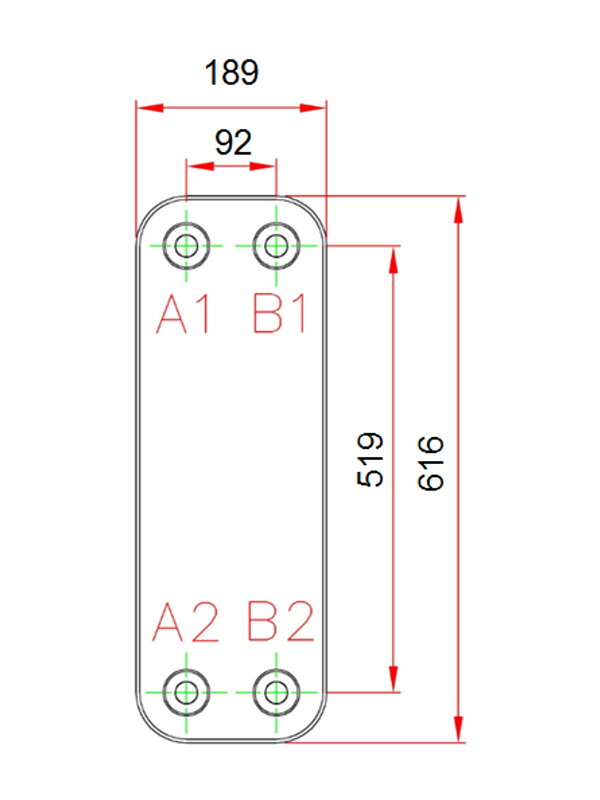

L1(mm)：
616
L2(mm)：
519
W1(mm)：
189
W2(mm)：
92
