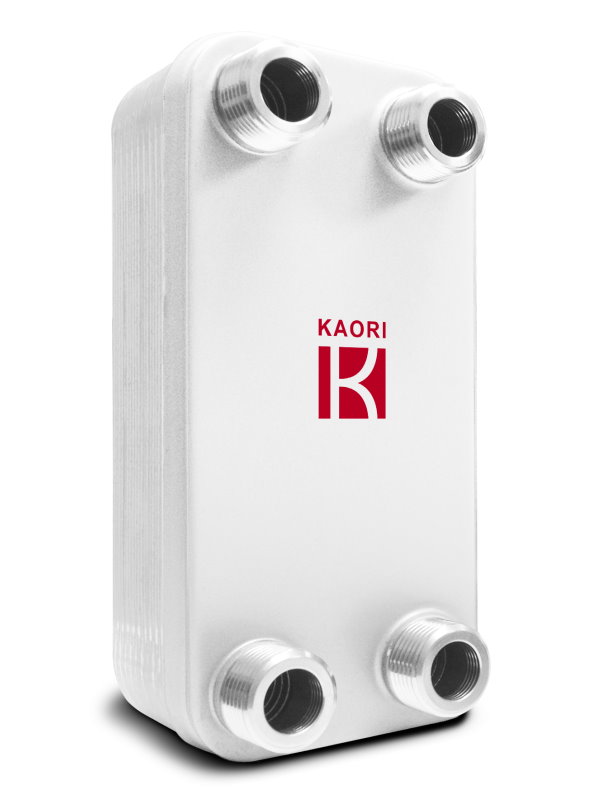

E015
E015
Low Pressure BPHE
E series is designed with integration for water-to-water fluid in flow volume. E015 has the compact size, causing turbulent flow to ensure high thermal exchange efficiency. E015 is the reliable solution to save the energy for gas boiler.
Industry:
Calefacción solar
Calefacción por suelo
Nieve derretida
Calefacción urbana
Caldera
Refrigeración / calentamiento de fluidos
Infraestructura del centro de datos
Application:
Otro
Heat Load(up to)kW:
35.16
Plate Material:
SUS304
Brazing Material:
Cobre
Max number of plates(N):
30
Working Pressure:
10
Min test pressure(bar):
15
Max working temperature:
200
Max flow_rate:
65
Plate Heat Transfer Area:
0.0084
Thickness(mm):
9.0+1.8*N
Weight(kg):
0.21+0.036*N
Connection-Male Thread(up to):
3/4"

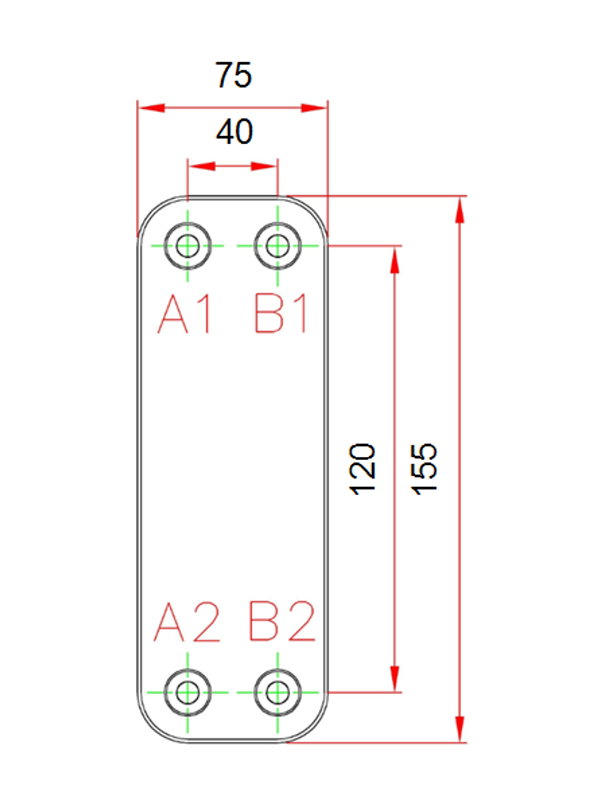

L1(mm):
155
L2(mm):
120
W1(mm):
75
W2(mm):
40
