M095
M095

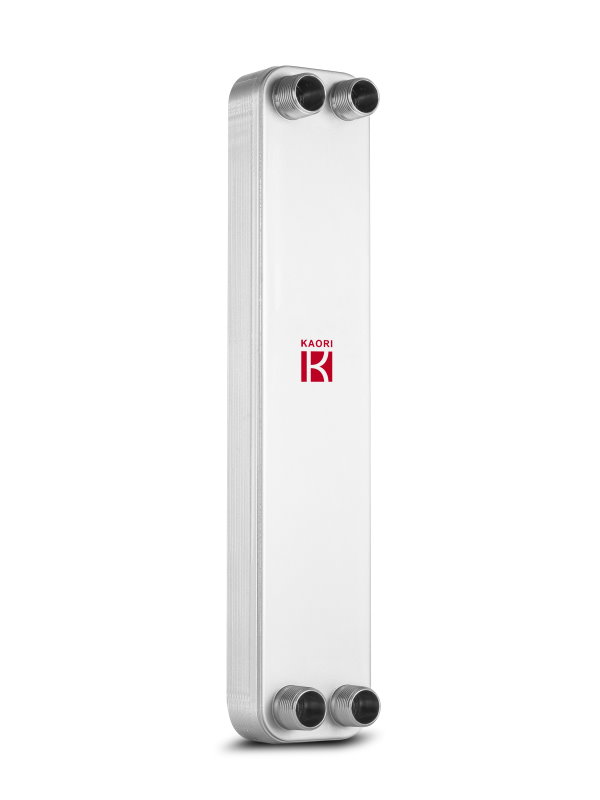

탈염소식 BPHE
M095는 SMO254와 동급의 재질로 되어 있습니다. 뛰어난 내부식성과 균열에 대한 내침식성을 지니고 있습니다. 게다가 재질에는 더 많은 양의 니켈, 크롬 및 몰리브덴이 들어 있어 내침식성 및 균열 방지 기능이 한층 강화되었습니다. M095는 수영장과 같이 염소가 많은 작동 조건에 적합합니다.
Industry:
냉각기
히트 펌프
냉동고
수영장
Application:
다른
Plate Material:
SMO254
Brazing Material:
니켈
Max number of plates(N):
80
Working Pressure:
10
Min test pressure(bar):
15
Max working temperature:
200
Max flow_rate:
260
Plate Heat Transfer Area:
0.0475
Thickness(mm):
10.0+2.40*N
Weight(kg):
2.64+0.240*N
Connection-Male Thread(up to):
1 1/4"
Connection-Female Thread(up to):
1"
Connection-Solder(up to):
1 3/8"

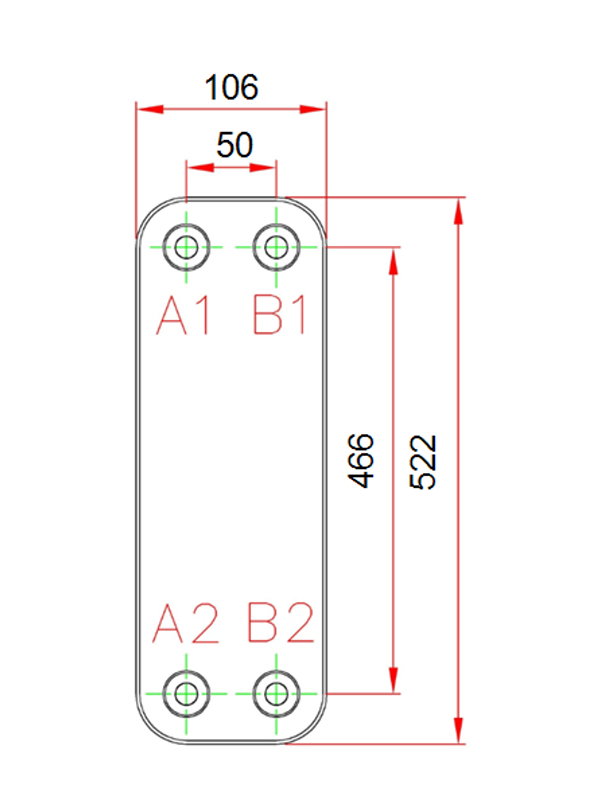

L1(mm):
522
L2(mm):
466
W1(mm):
106
W2(mm):
50
