H050
H050

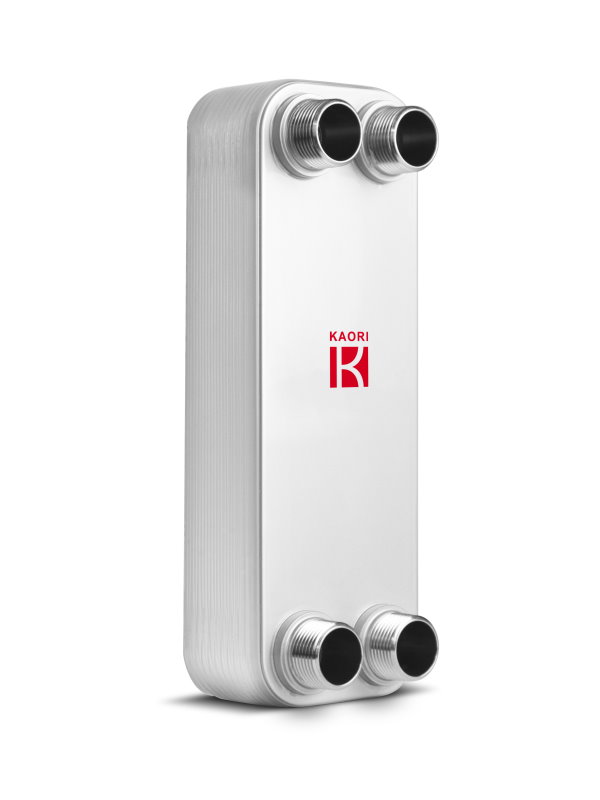

초고온식 BPHE
H 시리즈는 내열성 스테인리스강 재질로 되어 있어 900°C까지 견딜 수 있으며, 연료 전지, 신재생 에너지 및 화학 산업, 등의 분야에 이용될 수 있습니다. 가스 가열 또는 냉각 분야에 널리 이용되고 있습니다.
Industry:
폐열 회수
연료 전지
식품 장비 산업
제약 산업
재생 에너지
Application:
다른
Plate Material:
High-Temperature-Resistant
Brazing Material:
니켈
Max number of plates(N):
80
Working Pressure:
10
Min test pressure(bar):
15
Max working temperature:
900
Plate Heat Transfer Area:
0.0255
Thickness(mm):
10.0+2.40*N
Weight(kg):
1.64+0.137*N
Connection-Solder(up to):
Depends on working condition

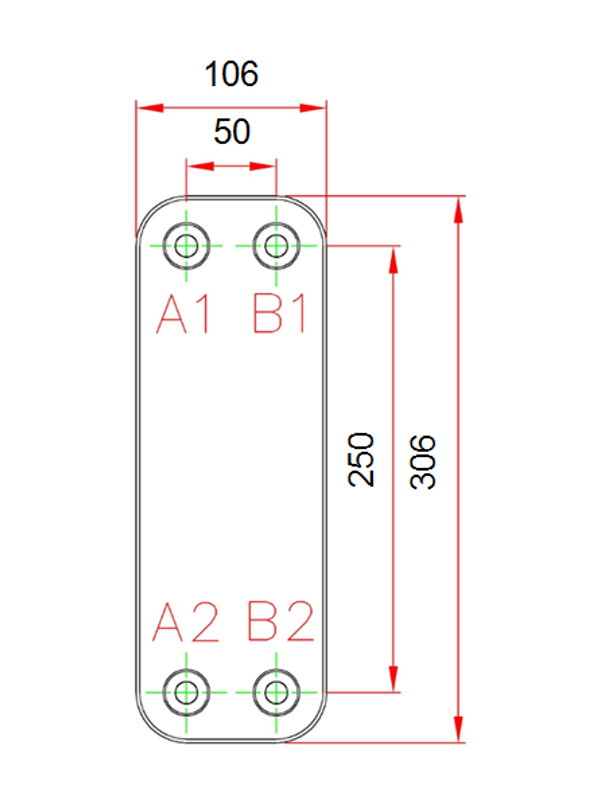

L1(mm):
306
L2(mm):
250
W1(mm):
106
W2(mm):
50
