A140
A140

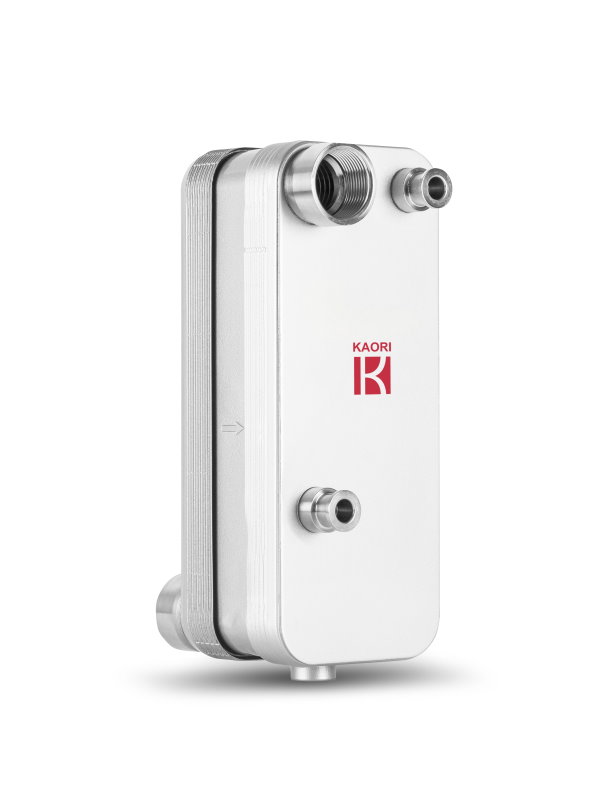

제습 장치 BPHE
A140은 제습 장치 냉각 관련 응용분야 전용입니다. A시리즈 전체는 예비 가스 냉각, 증발 건조기, 분리기, 등으로 구성되어 있습니다. 전매 디자인 특허를 받은 분리기는 압축 공기의 제습, 막힘 방지, 등을 완벽하게 처리할 수 있습니다. 디자인 덕분에 공간 및 자리배치에 있어서 효과적인 시간 절약이 가능합니다. to the application related to cooling air dryer. The integration of A series includes gas pre-cooling, evaporator and separator. The patented design separator can perfectly dehumidify the compressed air and prevent from clogging. The design can effectively save the time in configuration and space.
Industry:
공기 건조기
공기 압축기
Application:
다른
Plate Material:
SUS304
Brazing Material:
구리
Max number of plates(N):
100
Working Pressure:
30
Min test pressure(bar):
43
Max working temperature:
200
Connection-Solder(up to):
Depends on working condition

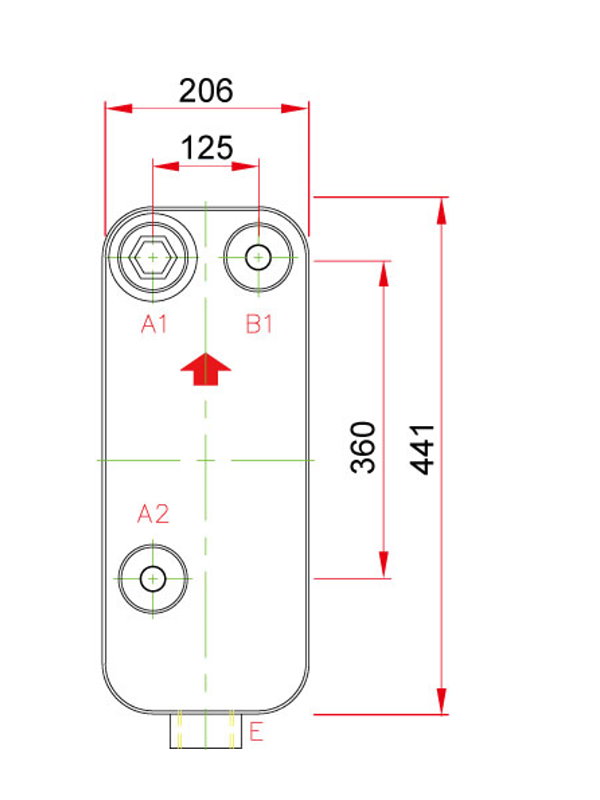

L1(mm):
441
L2(mm):
360
W1(mm):
206
W2(mm):
125
