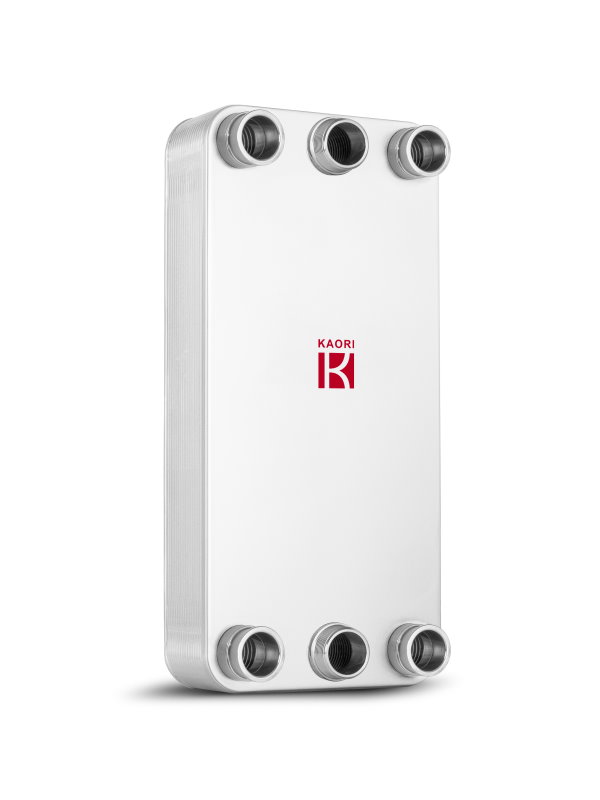

R216D
R216D
Micro Channel BPHE
R096 is the newly-developed BPHE dedicated to environment-friendly and high thermal transferring refrigerant such as R290(Propane), R32, R410A, R134a. R096 uses innovative design on shape of plates. Its light weight and high pressure resistence significantly reduces carbon emission, and the efficiency rises 10% as well.
R096 has perfect compatibility for working conditions, generating cooling and heating effects, especially evaporator and condenser.
Industry:
Refroidisseur
Pompe à chaleur
Réfrigérateur / congélateur
Récupération de chaleur perdue
Refroidissement / chauffage de process
Semi-conducteur
Machine-outils
Énergie renouvelable
Chauffage urbain
Chaudière
Infrastructure du centre de données
Chauffage / refroidissement de la boîte de vitesses
Application:
Évaporateur
Condenseur
Sous-refroidisseur
Épargnant
Refroidisseur d'huile
Refroidisseur intermédiaire
Plate Material:
SMO254
Brazing Material:
Cuivre
Max number of plates(N):
180
Working Pressure:
45
Min test pressure(bar):
65
Max working temperature:
200
Max flow_rate:
740
Plate Heat Transfer Area:
0.1103
Thickness(mm):
17.0+1.85*N
Weight(kg):
13.51+0.430*N
Connection-Male Thread(up to):
2 1/2"
Connection-Female Thread(up to):
2"
Connection-Solder(up to):
2 5/8"

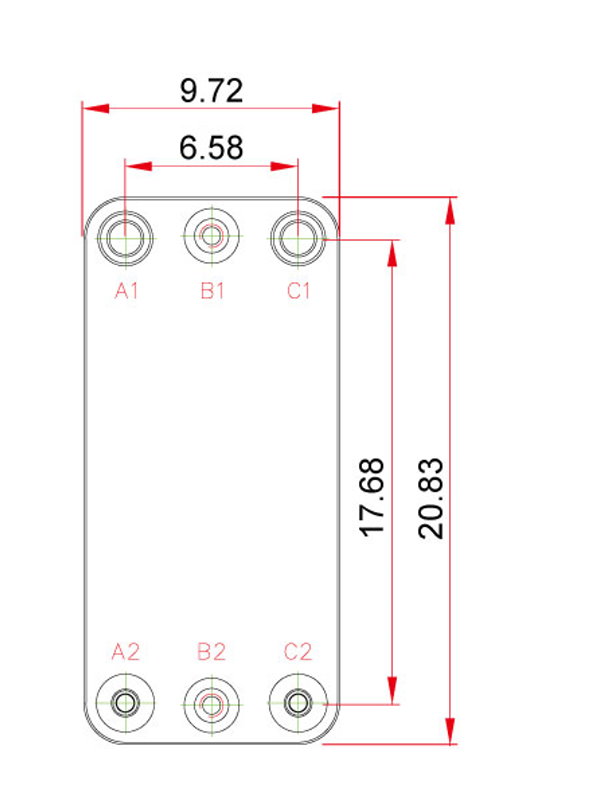

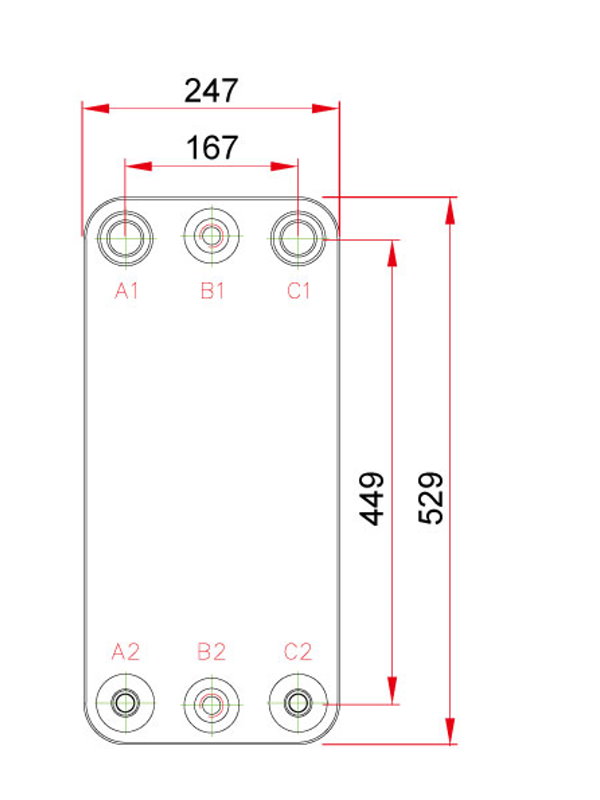

L1(mm):
529
L2(mm):
449
W1(mm):
247
W2(mm):
167
