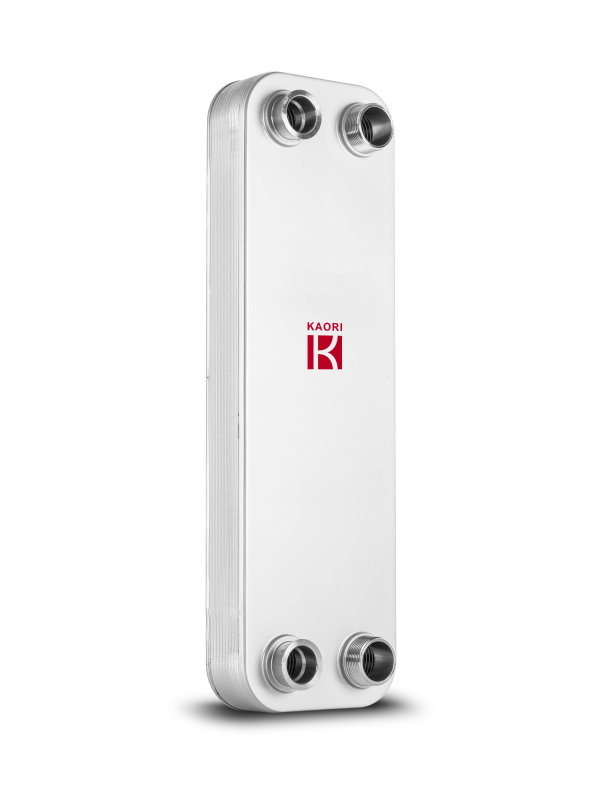

C201
C201
Ultrahochdruck Gelötete Plattenwärmetauscher
C type is the CBE, dedicated to R744 (CO2), and compatible with heat pump and refrigeration system. The model has three types, including 70/100/140 BAR. The compact design plus outstanding thermal transfer efficiency and low pressure drop charaterize C series.
C201 can sustain 100BAR and afford the pressure caused by R744 as thermal media. This capacity delights the COP value and results in "0 "ODP to protect the environment where we live. C201 can work well with pre-cooler and pervasive in various kinds of residential heat pump.
Industry：
Chiller
Wärmepumpe
Kühl- / Gefrierschrank
Lebensmittelindustrie
Pharmazeutisch
Prozesskühlung / -heizung
Halbleiter
Hydraulikindustrie
Werkzeugmaschine
Bio-Tech
Erneuerbare Energie
Application：
Verdampfer
Kondensator
Unterkühler
Sparer
Ladeluftkühler
Heat Load(up to)kW：
140.64
Plate Material：
SUS316
Brazing Material：
Kupfer
Max number of plates(N)：
160
Working Pressure：
100
Min test pressure(bar)：
143
Max working temperature：
200
Max flow_rate：
720
Plate Heat Transfer Area：
0.095
Thickness(mm)：
14.0+2.15*N
Weight(kg)：
12.56+0.631*N
Connection-Solder(up to)：
Depends on working condition

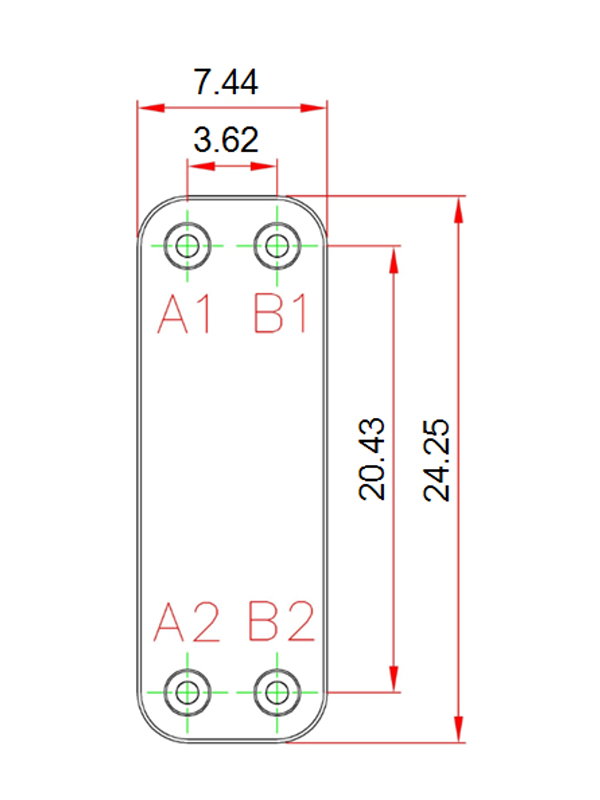

L1(mm)：
616
L2(mm)：
519
W1(mm)：
189
W2(mm)：
92
