M050
M050

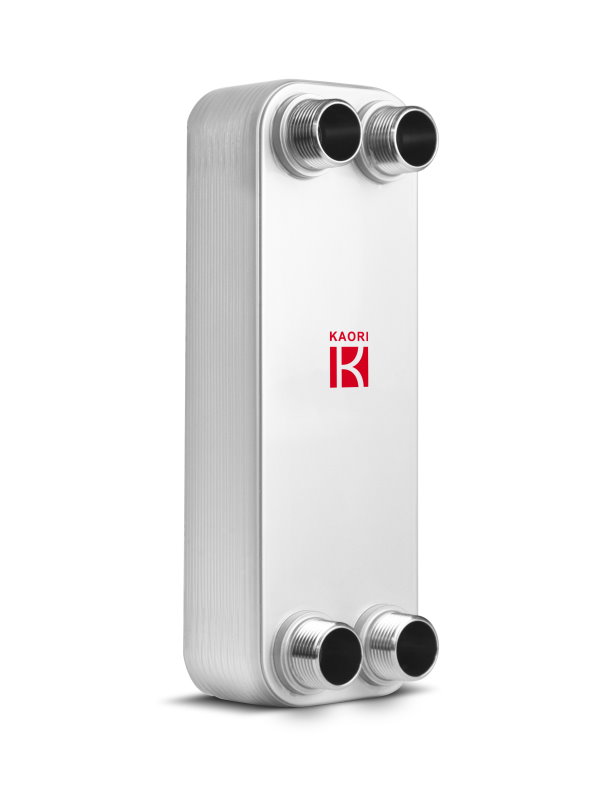

Anti Chlorine BPHE
M050 uses the material, equally classified as SMO254. It has outstanding corrision resistence and the resistence against erosion from crack. Besides, the material contains more volume of nickel, chromium, and molybdenum, which reinforces the capability to resist erosion and prevent cracking.
Industry:
Refroidisseur
Pompe à chaleur
Réfrigérateur / congélateur
Piscine
Application:
Autre
Plate Material:
SMO254
Brazing Material:
Ni
Max number of plates(N):
80
Working Pressure:
10
Min test pressure(bar):
15
Max working temperature:
200
Max flow_rate:
240
Plate Heat Transfer Area:
0.0255
Thickness(mm):
10.0+2.40*N
Weight(kg):
1.04+0.136*N
Connection-Male Thread(up to):
1 1/4"
Connection-Female Thread(up to):
1"
Connection-Solder(up to):
1 1/8"

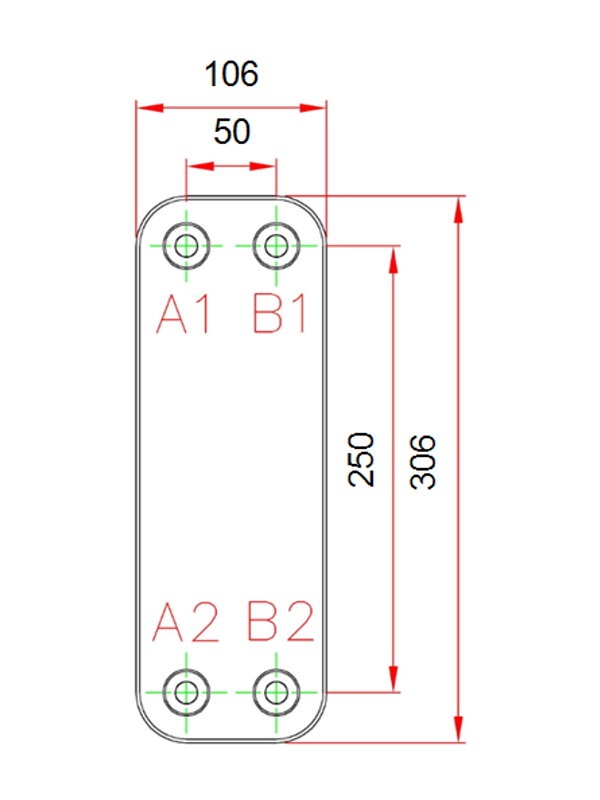

L1(mm):
306
L2(mm):
250
W1(mm):
106
W2(mm):
50
