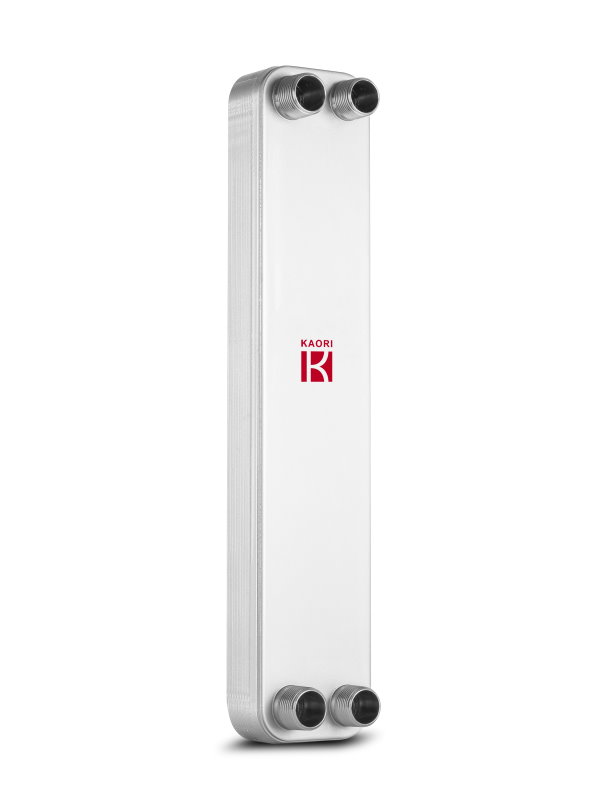

M095
M095
Anti Chlorine BPHE
M095 uses the material, equally classified as SMO254. It has outstanding corrision resistence and the resistence against erosion from crack. Besides, the material contains more volume of nickel, chromium, and molybdenum, which reinforces the capability to resist erosion and prevent cracking. M095 is suitable for working conditions filled with chlorine such as swimming pool.
Industry：
Refroidisseur
Pompe à chaleur
Réfrigérateur / congélateur
Piscine
Application：
Autre
Plate Material：
SMO254
Brazing Material：
Ni
Max number of plates(N)：
80
Working Pressure：
10
Min test pressure(bar)：
15
Max working temperature：
200
Max flow_rate：
260
Plate Heat Transfer Area：
0.0475
Thickness(mm)：
10.0+2.40*N
Weight(kg)：
2.64+0.240*N
Connection-Male Thread(up to)：
1 1/4"
Connection-Female Thread(up to)：
1"
Connection-Solder(up to)：
1 3/8"

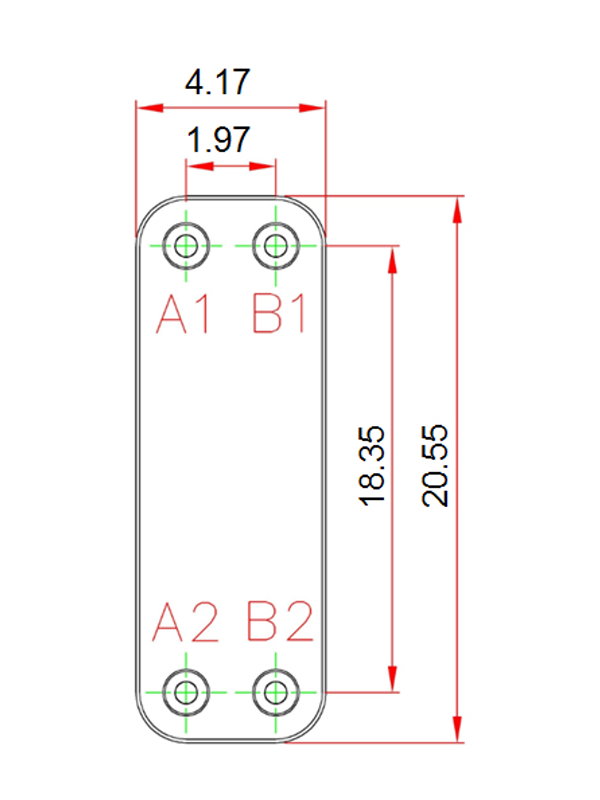

L1(mm)：
522
L2(mm)：
466
W1(mm)：
106
W2(mm)：
50
