R095
R095

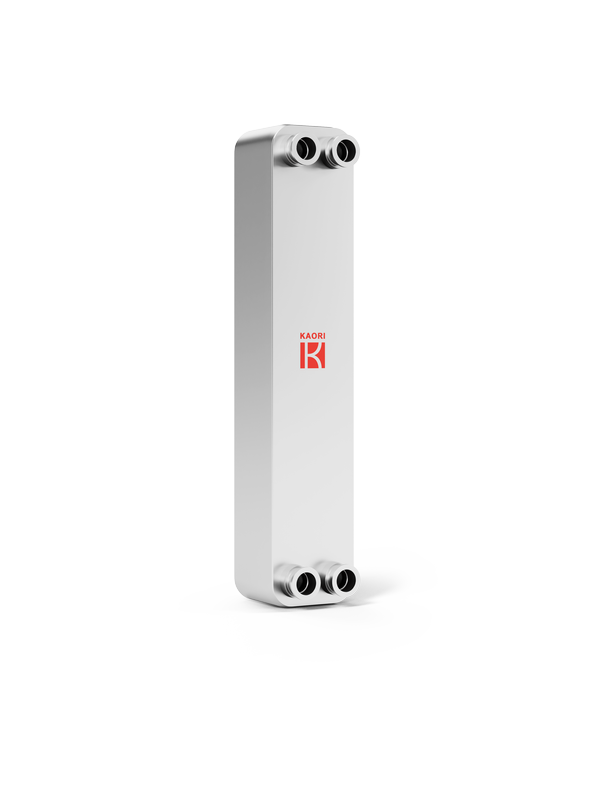

高熱伝導性ブレージング式熱交換器
R095はR290(Propane), R32、R410A、R134aなどの高熱伝導量冷媒の高効率に対して開発された熱交換器で、Kシリーズよりも10%以上性能が上がります。また、軽量コンパクト設計で二酸化炭素排出量を大幅に削減することができます。
Industry:
チラー
ヒートポンプ
リーファー/冷凍庫
廃熱回収
プロセス冷却/加熱削除
半導体
工作機械
再生可能エネルギー
地域暖房
ボイラー
データセンターインフラストラクチャ
ギアボックスの加熱/冷却
Application:
蒸発器
凝縮器
過熱器/過冷卻器
エコノマイザー
オイルクーラー
サブクーラー
Heat Load(up to)kW:
70.32
Plate Material:
SUS316
Brazing Material:
銅
Max number of plates(N):
120
Working Pressure:
30
Min test pressure(bar):
43
Max working temperature:
200
Max flow_rate:
250
Plate Heat Transfer Area:
0.0475
Thickness(mm):
10.0+1.85*N
Weight(kg):
2.73+0.154*N
Connection-Male Thread(up to):
1 1/4"
Connection-Female Thread(up to):
1"
Connection-Solder(up to):
1 3/8"
L1(mm):
522
L2(mm):
466
W1(mm):
106
W2(mm):
50
