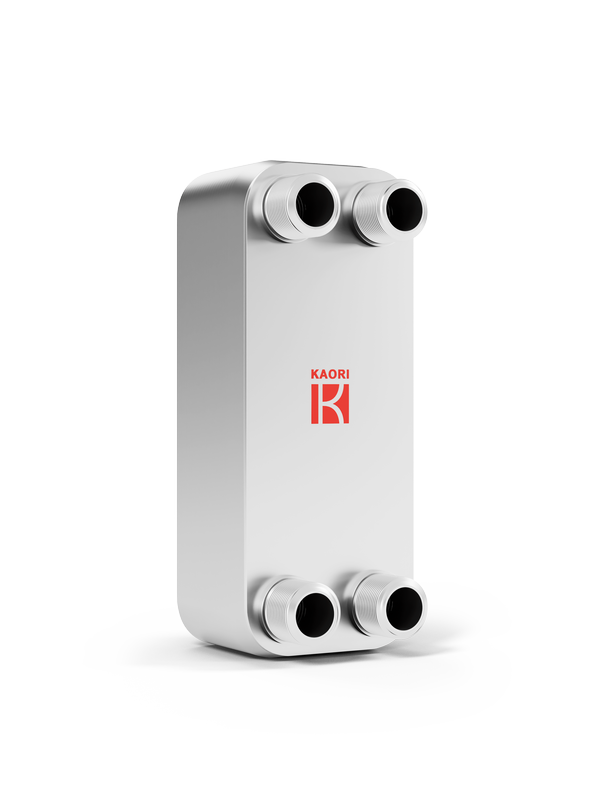

E030
E030
低压型
Industry:
リーファー/冷凍庫
太陽熱暖房
床暖房
融雪
地域暖房
ボイラー
流体の冷却/加熱
データセンターインフラストラクチャ
Application:
その他
Plate Material:
SUS316
Brazing Material:
銅
Max number of plates(N):
60
Working Pressure:
10
Min test pressure(bar):
15
Max working temperature:
200
Max flow_rate:
65
Plate Heat Transfer Area:
0.0117
Thickness(mm):
7.0+2.25*N
Weight(kg):
0.29+0.047*N
Connection-Male Thread(up to):
3/4"
Connection-Female Thread(up to):
3/4"
Connection-Solder(up to):
7/8"

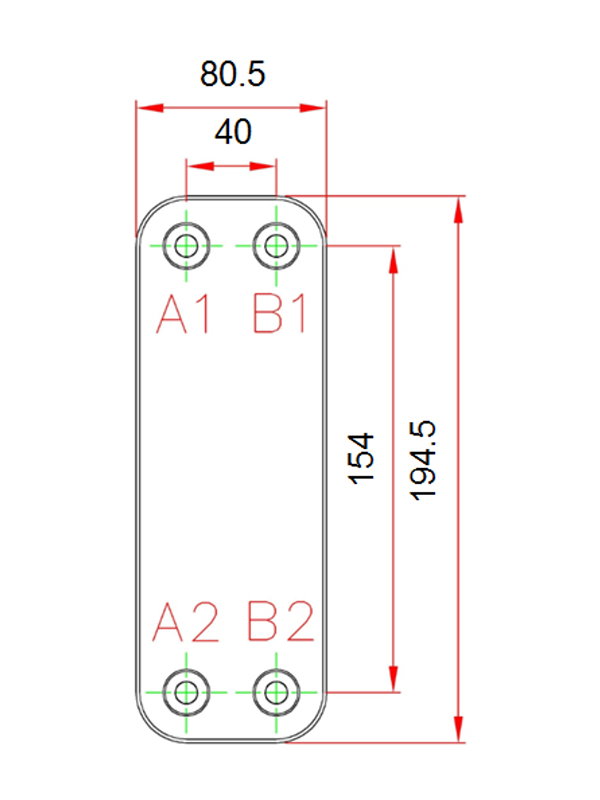

L1(mm):
195
L2(mm):
154
W1(mm):
80
W2(mm):
40
