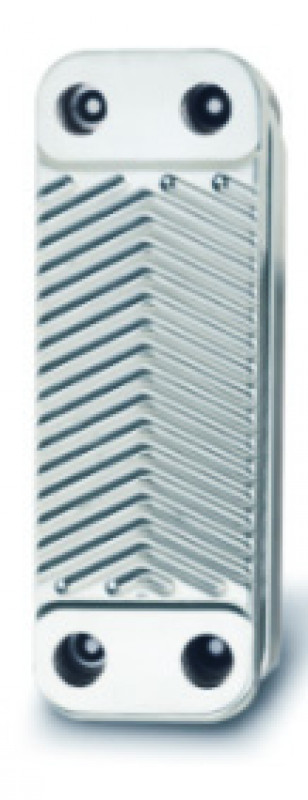

F025
F025
低压型
Industry:
太陽熱暖房
床暖房
融雪
地域暖房
ボイラー
流体の冷却/加熱
データセンターインフラストラクチャ
Application:
その他
Plate Material:
SUS304
Brazing Material:
銅
Max number of plates(N):
40
Working Pressure:
10
Min test pressure(bar):
15
Max working temperature:
200
Plate Heat Transfer Area:
0.012
Thickness(mm):
6.5+2.27*(N-2)
Weight(kg):
0.19+0.040*(N-2)
Connection-Male Thread(up to):
1/2"
Connection-Solder(up to):
Depends on working condition

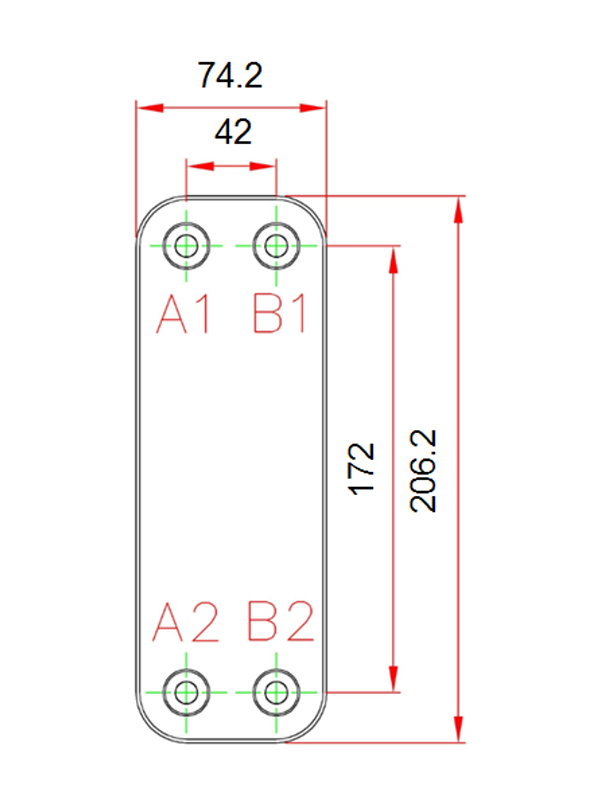

L1(mm):
206.2
L2(mm):
172
W1(mm):
74.2
W2(mm):
42
