Feature ArticleFuel Cells and Methanol-Based Power Generation Systems
reads
Net-zero emissions and clean energy have become key global development directions. Kaori brazed plate heat exchangers (BPHE) feature outstanding heat transfer efficiency, a compact and robust structure, and can withstand operating temperatures of up to 900°C. Manufactured using a high-quality vacuum brazing process, they also demonstrate excellent corrosion resistance. Kaori has partnered with leading fuel cell manufacturers to develop customized and innovative thermal solutions, jointly advancing the next generation of renewable and high-efficiency energy systems.
Applications of Plate Heat Exchangers in Fuel Cells：

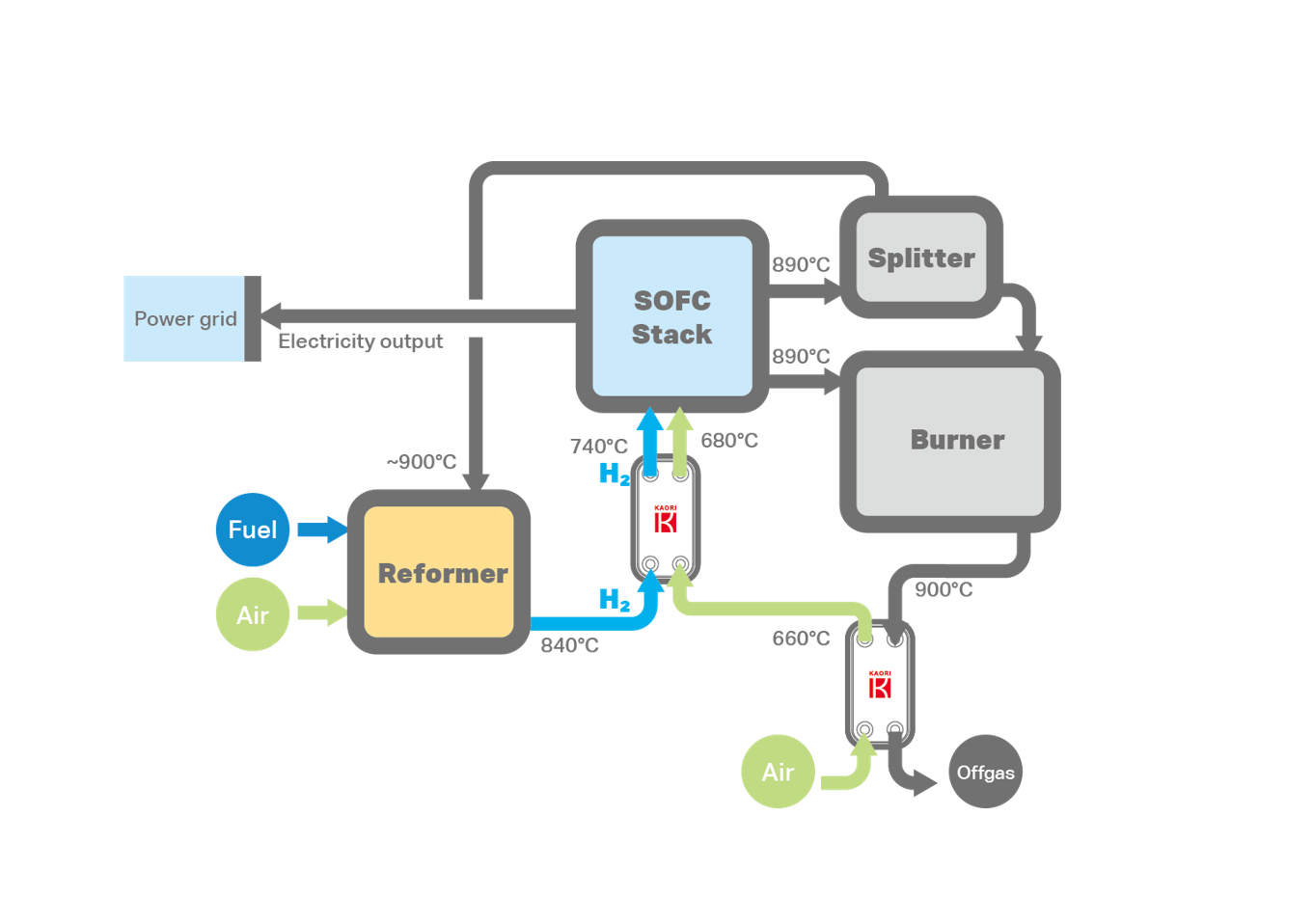

Solid Oxide Fuel Cell ( SOFC )
Applied in stationary power generation systems, using natural gas as the primary fuel, with extremely high requirements for high temperature and thermal management.
Kaori BPHE utilizes high-nickel alloy plates and nickel brazing technology, with a maximum operating temperature of up to 900°C. It can be reliably applied in key thermal management processes such as hydrogen preheating, air preheating, and fuel gas heat recovery, helping improve system energy efficiency and ensure long-term stable operation.

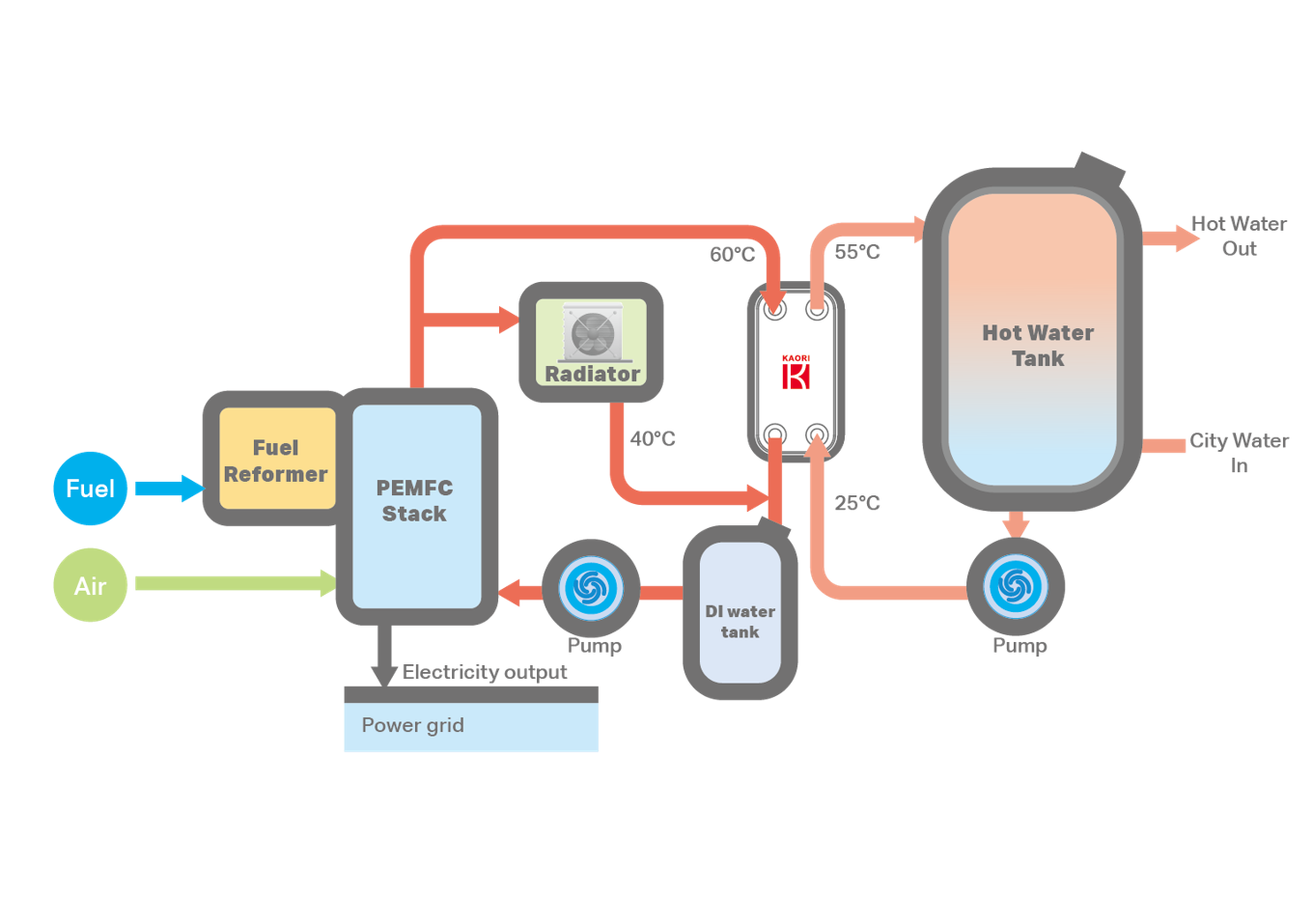

Proton Exchange Membrane Fuel Cell (PEM Fuel Cell) / Stationary Power Generation, Backup Power
Widely used in stationary power generation and backup power systems, utilizing natural gas, methanol, or hydrogen as fuel, with fast start-up and stable operation characteristics.
Kaori BPHE adopts SUS316 plates with nickel brazing construction, providing highly reliable thermal management and heat recovery solutions. It can be effectively integrated into combined heat and power (CHP) systems, recovering waste heat generated during operation to improve overall energy efficiency and reduce operating costs.

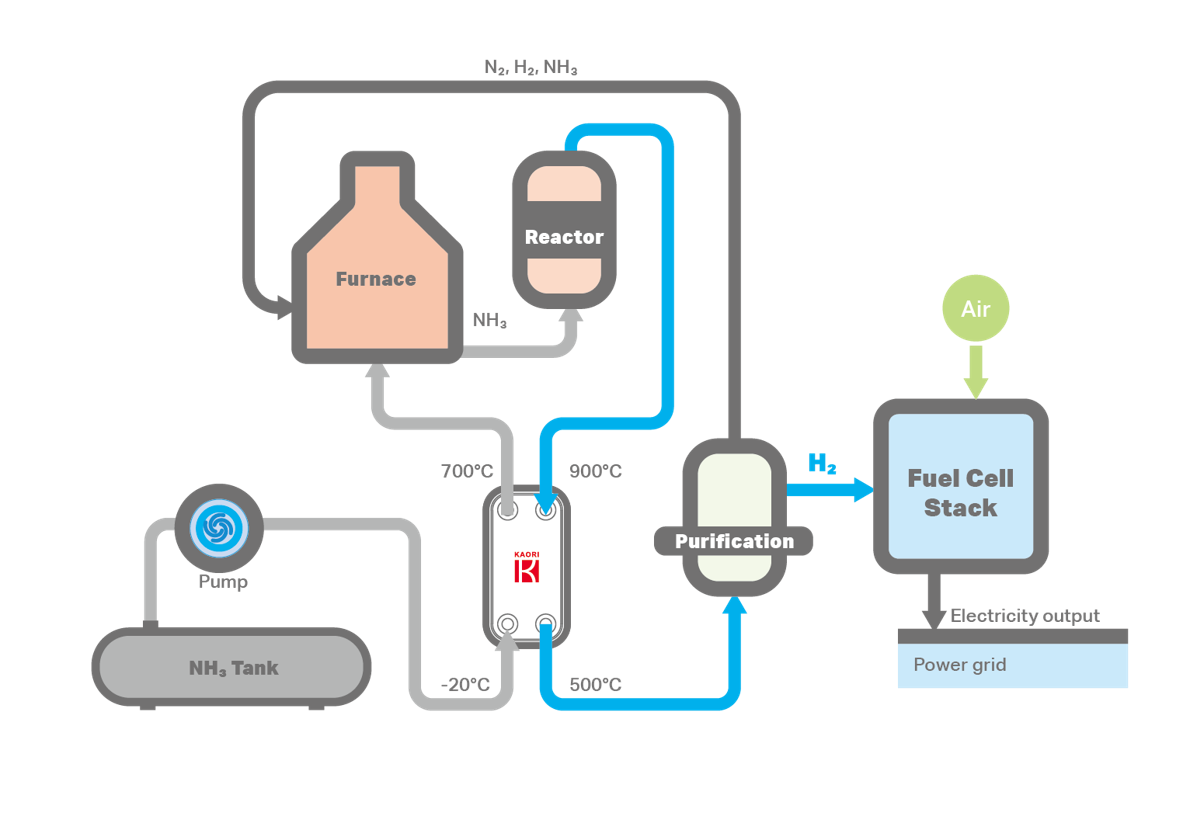

Ammonia Fuel Cell / Stationary Power Generation, Backup Power
Applicable to stationary power generation and backup power systems, using ammonia as fuel, offering advantages such as easier storage and transportation and potential for zero carbon emissions.
Kaori BPHE uses high-nickel alloy plates with nickel brazing, capable of withstanding harsh operating conditions. It provides stable and high-efficiency thermal management solutions for ammonia preheating, air preheating, and fuel gas heat recovery, effectively improving system energy efficiency and operational reliability.
Hydrogen Gas Generator / Electrolysis Technology
Hydrogen production through electrolysis technology requires precise temperature control and thermal management during operation.
Kaori BPHE adopts SUS316 plates with nickel brazing construction, offering excellent corrosion resistance and long-term operational stability. It can be effectively applied in fuel cooling, air preheating, and fuel gas heat recovery, helping maintain safe operating conditions and improving overall energy utilization efficiency.

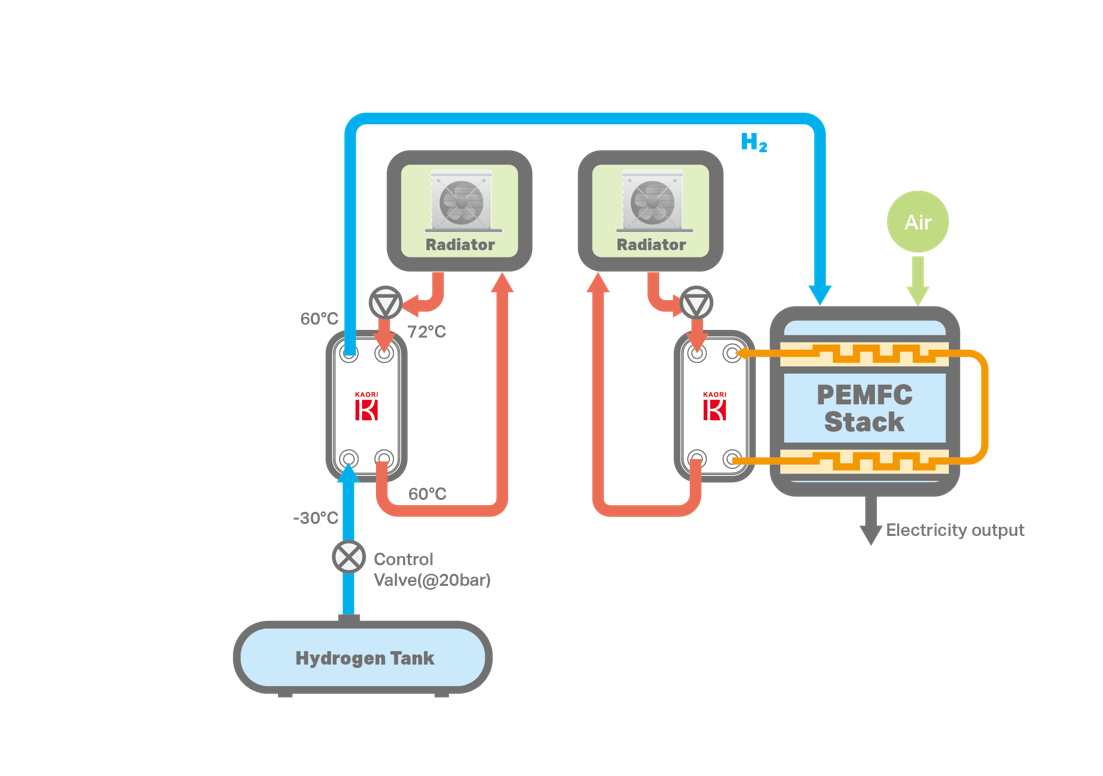

Mobility / Fuel Cell Vehicles, Buses, Trucks
Transportation applications such as fuel cell vehicles, buses, and trucks require lightweight systems, high thermal efficiency, and stable operation.
Kaori BPHE can be integrated into hydrogen preheating, stack and battery thermal management, A/C heat pump systems, and drivetrain oil cooling. It also supports steam generation and exhaust heat recovery, effectively maintaining stable stack temperature control while improving overall energy efficiency and vehicle reliability.
Telecommunication / Backup Power
Backup power systems in the telecommunications industry commonly use methanol as a fuel source, requiring extremely high stability and long-term operational reliability.
Kaori BPHE provides comprehensive thermal management solutions, using SUS316 plates with nickel brazed construction. It offers excellent corrosion resistance and structural strength, ensuring stable operation of backup power systems under various environmental conditions, and enhancing the reliability and safety of power supply for communication equipment.
Methanol Fuel Cell Power Generation System
Hydrogen fuel cells are expected to become an important alternative power source in the future. They are suitable for microgrid systems in remote areas, effectively addressing electricity shortages in mountainous regions, and providing immediate and stable emergency power during disasters.
With advantages such as zero pollution, low carbon emissions, and low noise, they are ideal for long-duration continuous power generation and backup power applications. Combined with on-demand hydrogen supply, system safety is improved. Integration with smart energy management systems further reduces operational and maintenance costs, demonstrating strong development potential and application advantages.
Applications：
Off-grid long-duration power supply locations: remote areas such as offshore islands and mountainous regions
Critical backup power: telecom equipment, emergency rescue facilities, transportation infrastructure, key public facilities, building elevators and fire protection systems; also usable as standalone mobile generators
Supportive power supply: integrated with smart grids to improve power efficiency and stability
☑︎ Recommended Models >>> K Series、 T Series 、 Z Series
