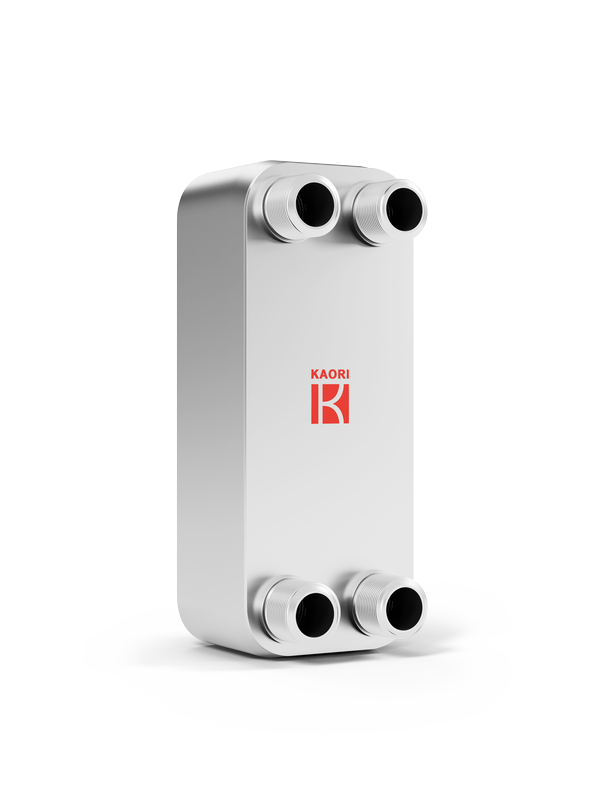

H031
H031
Super High Temperature BPHE
H031 are made of heat resistence stainless steel, able to sustain up to 550°C. It can be applied in fuel cell, the new generation energy and chemical industry. It is pervasively used to gas heating or cooling.
Industry:
Waste Heat Recovery
Fuel Cell
Food Equipment Industry
Pharmaceutical
Renewable Energy
Application:
Other
Plate Material:
SUS304
SUS310S
Brazing Material:
Ni
Max number of plates(N):
60
Working Pressure:
10
Max working temperature:
550
Thickness(mm):
9.0+2.30*N
Weight(kg):
0.69+0.064*N
Connection-Solder(up to):
Depends on working condition

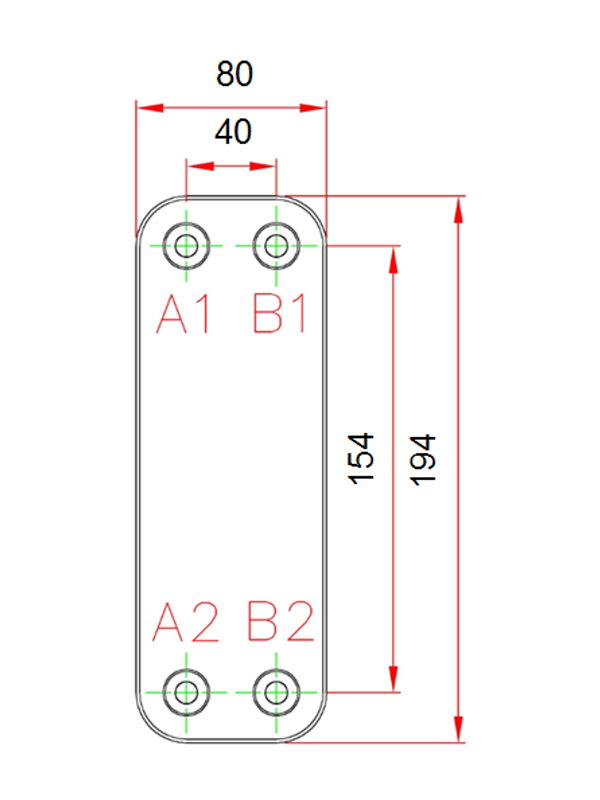

L1(mm):
194
L2(mm):
154
W1(mm):
80
W2(mm):
40
