H030
H030

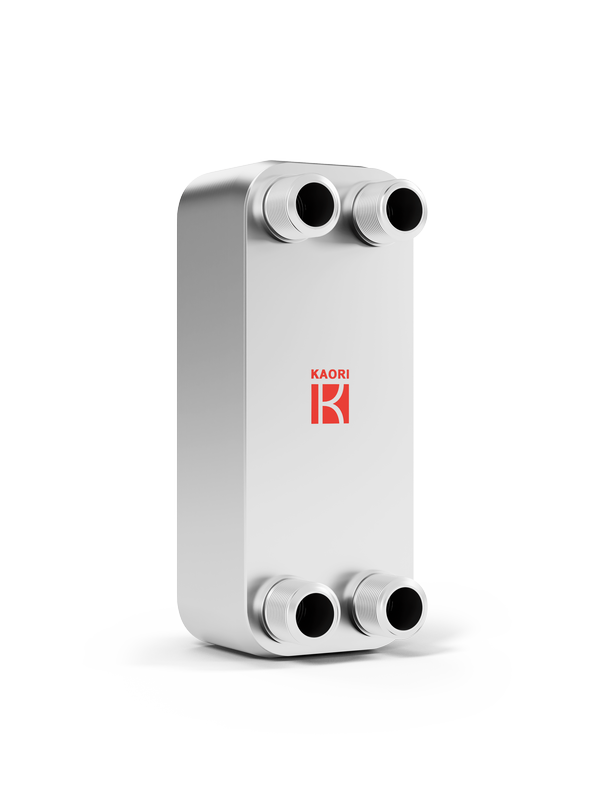

Super High Temperature BPHE
H030 are made of heat resistence stainless steel, able to sustain up to 900℃. It can be applied in fuel cell, the new generation energy and chemical industry. It is pervasively used to gas heating or cooling.
Industry:
Waste Heat Recovery
Fuel Cell
Food Equipment Industry
Renewable Energy
Application:
Other
Plate Material:
High-Temperature-Resistant
Brazing Material:
Ni
Max number of plates(N):
60
Working Pressure:
10
Max working temperature:
900
Thickness(mm):
9.0+2.30*N
Weight(kg):
0.73+0.068*N
Connection-Solder(up to):
Depends on working condition

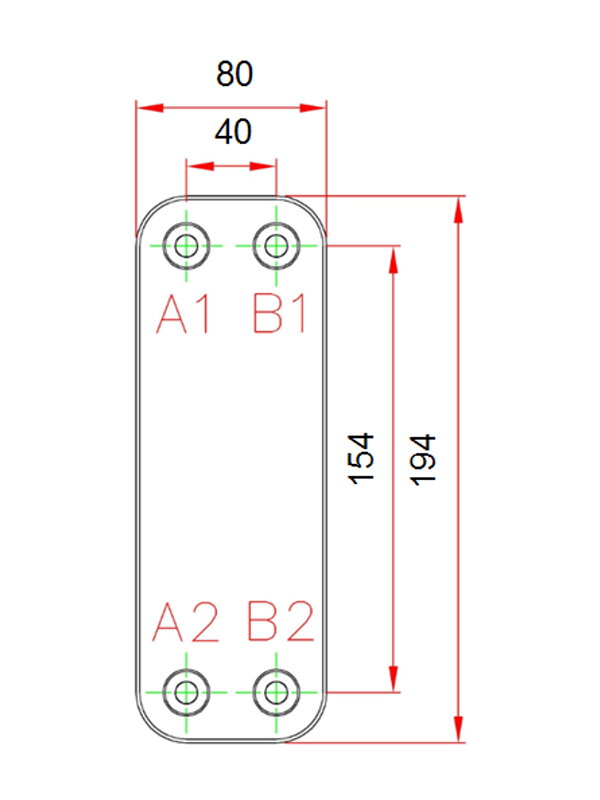

L1(mm):
194
L2(mm):
154
W1(mm):
80
W2(mm):
40
