H050
H050

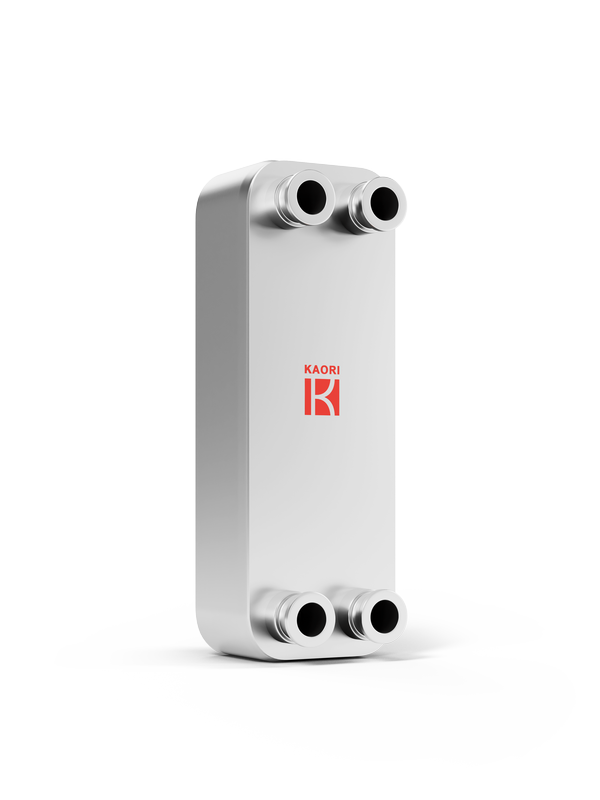

Super High Temperature BPHE
H050 are made of heat resistence stainless steel, able to sustain up to 900℃. It can be applied in fuel cell, the new generation energy and chemical industry. It is pervasively used to gas heating or cooling.
Industry:
Waste Heat Recovery
Fuel Cell
Food Equipment Industry
Pharmaceutical
Renewable Energy
Application:
Other
Plate Material:
High-Temperature-Resistant
Brazing Material:
Ni
Max number of plates(N):
80
Working Pressure:
10
Max working temperature:
900
Thickness(mm):
10.0+2.38*N
Weight(kg):
2.38+0.137*N
Connection-Solder(up to):
Depends on working condition

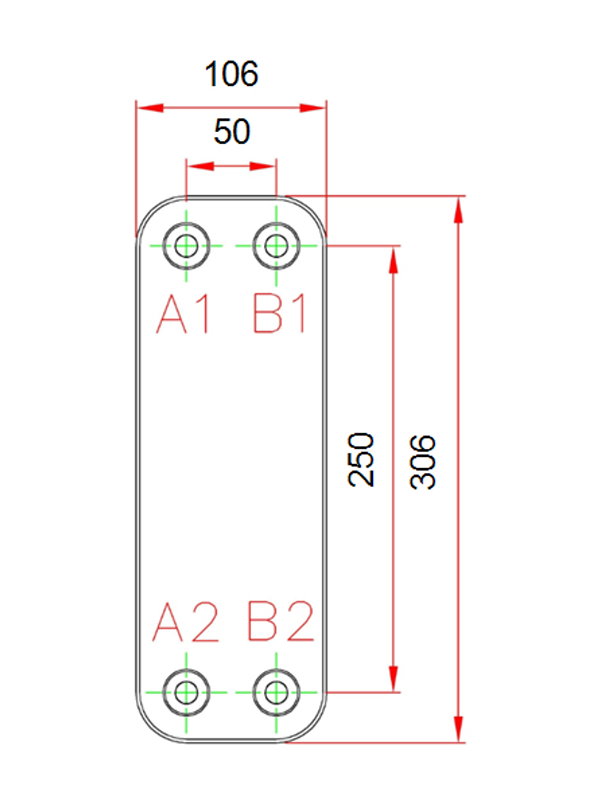

L1(mm):
306
L2(mm):
250
W1(mm):
106
W2(mm):
50
