H206
H206

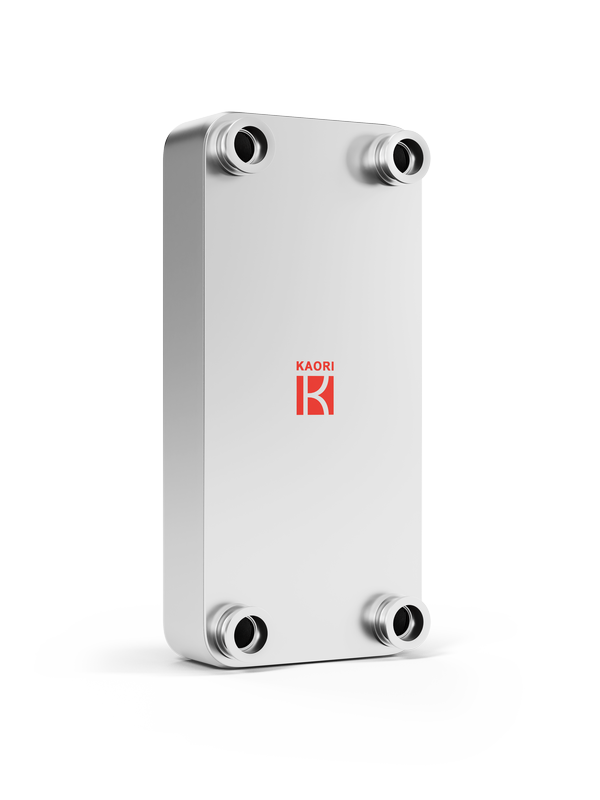

Super High Temperature BPHE
H206 are made of heat resistence stainless steel, able to sustain up to 550°C. It can be applied in fuel cell, the new generation energy and chemical industry. It is pervasively used to gas heating or cooling.
Industry:
Waste Heat Recovery
Fuel Cell
Food Equipment Industry
Pharmaceutical
Renewable Energy
Application:
Other
Plate Material:
SUS316
SUS310S
Brazing Material:
Ni
Max number of plates(N):
80
Working Pressure:
10
Max working temperature:
550
Thickness(mm):
11.5+2.40*N
Weight(kg):
8.69+0.566*N
Connection-Solder(up to):
Depends on working condition

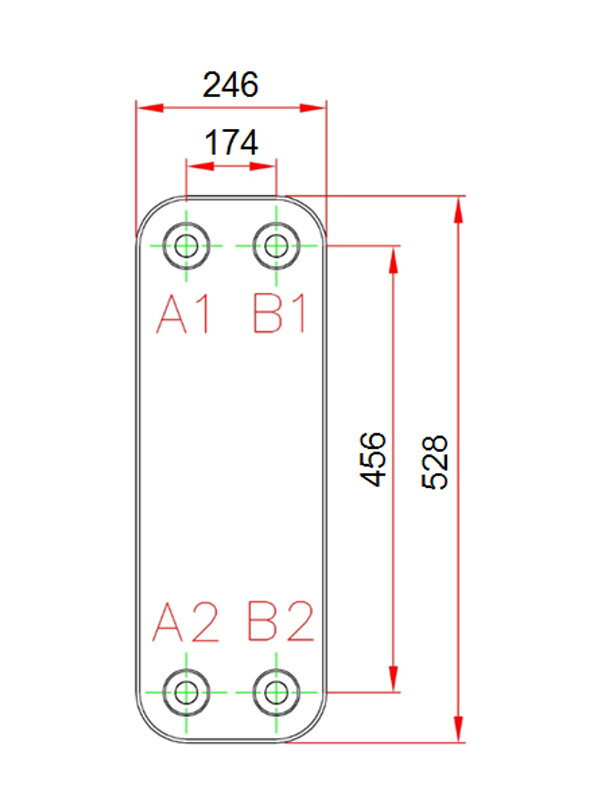

L1(mm):
528
L2(mm):
456
W1(mm):
246
W2(mm):
174
