H095
H095

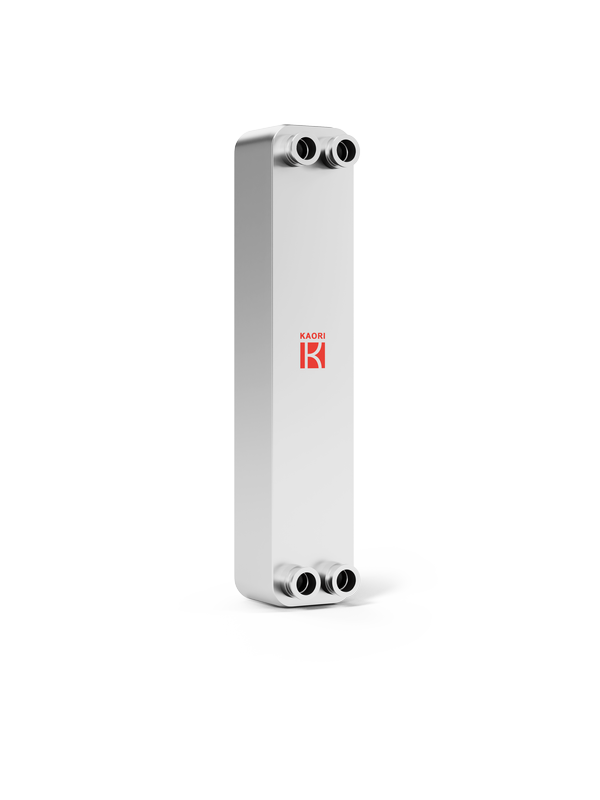

Super High Temperature BPHE
H095 are made of heat resistence stainless steel, able to sustain up to 900℃. It can be applied in fuel cell, the new generation energy and chemical industry. It is pervasively used to gas heating or cooling.
Industry:
Waste Heat Recovery
Fuel Cell
Food Equipment Industry
Pharmaceutical
Renewable Energy
Application:
Other
Plate Material:
Equivalent to SMO254
Brazing Material:
Ni
Max number of plates(N):
80
Working Pressure:
10
Min test pressure(bar):
900
Thickness(mm):
10.0+2.40*N
Weight(kg):
3.32+0.240*N
Connection-Solder(up to):
Depends on working condition

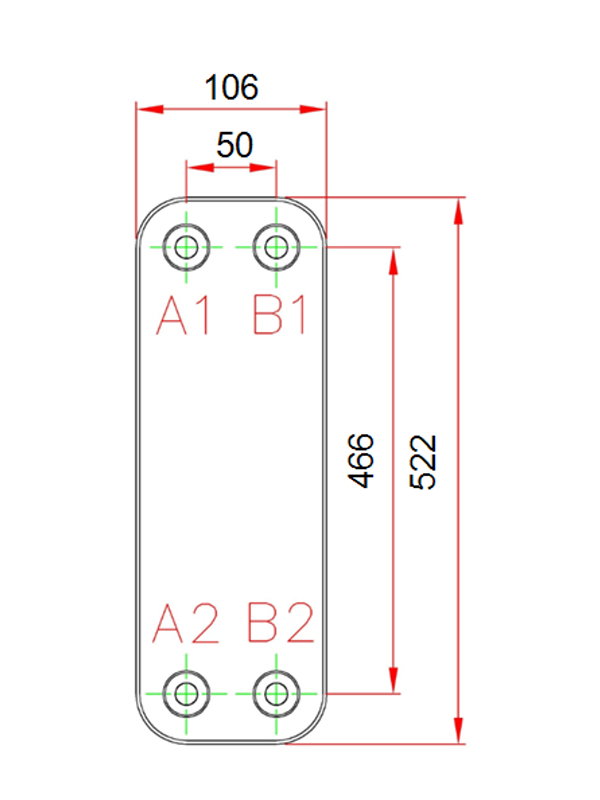

L1(mm):
522
L2(mm):
466
W1(mm):
106
W2(mm):
50
