Solutions

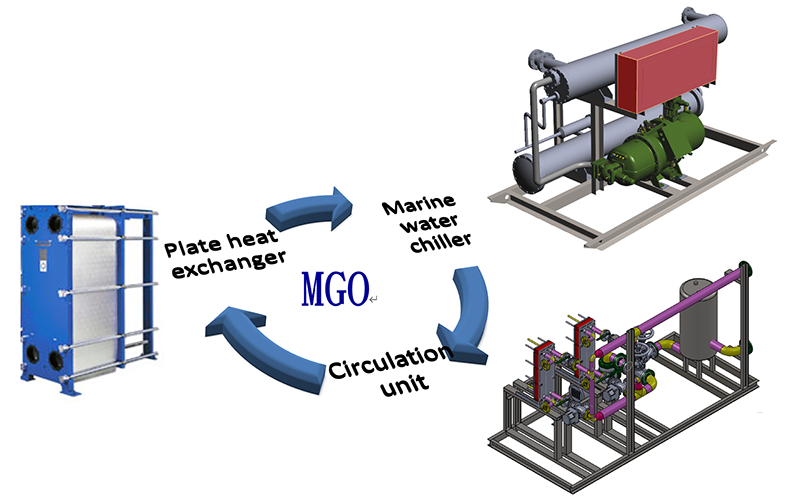

Marine Gas Oil Cooling System

Marine Chiller Unit: 1 set (compatible with multiple refrigerants)
Cooling Water Circulation Module: 1 set
Water/Oil Plate Heat Exchangers: 2 units (one for the main engine and one for the generator)

Cooling Capacity: Custom-designed according to requirements, with capacities exceeding 200 RT
PLC Control: Equipped with a programmable logic controller (PLC) for reliable and automated operation
Precision Temperature Control: Integrated PT module for accurate temperature regulation
Operation Logging: Automatic recording of operating data, including running hours
Adjustable Chilled Water Temperature: Outlet temperature can be set to match system load requirements
Compressor Load Indication: Real-time display of compressor loading status (100%, 75%, 50%, 25%)
Signal Display & I/O Description: Clear signal indication and contact point description for easy monitoring
Central Monitoring Connectivity: Standard RS-232 and RS-485 communication interfaces for integration with central control systems
MODBUS Compatibility: Supports MODBUS (ASCII/RTU) protocol, enabling seamless integration with information management systems and significantly reducing wiring and troubleshooting efforts
Self-Diagnostics: Built-in automatic inspection and self-diagnostic functions

Rapid Heating & Cooling: Enables fast temperature reduction and increase, effectively saving time and energy costs
Expandable Plate Design: Plate configuration can be extended; easy maintenance and quick cleaning service
Customized Solutions: Provides high-quality, tailor-made products and modular designs
Material Versatility: Available in various materials to suit different industrial fluid applications

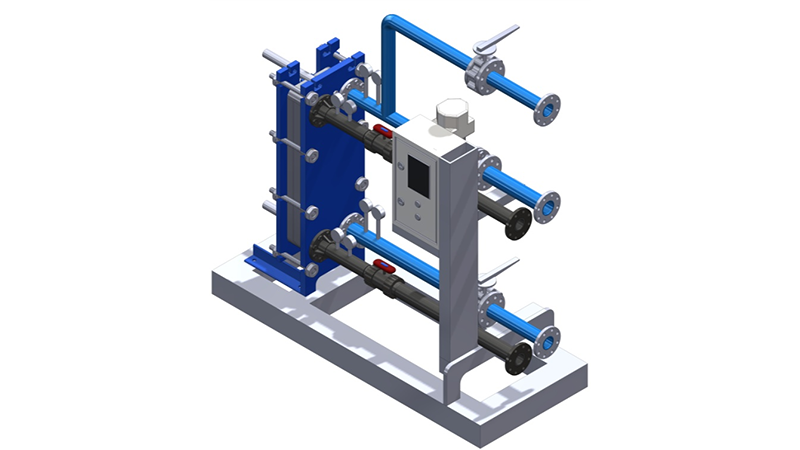

Flow Capacity: 1–100 m³/hr
Temperature Setting Range: 30–160°C
Temperature Control: Electronic LCD display with PID control
Control Accuracy: ±1°C
Applications: Hot springs, hotels, swimming pools, and heating systems
Key Advantages: Easy installation and maintenance, with precise temperature control

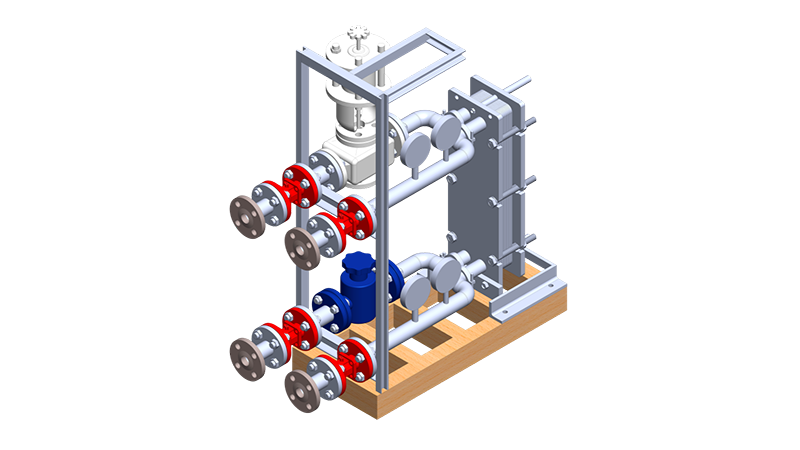

Flow Capacity: 5–576 m³/hr
Temperature Setting Range: 3–45°C
Temperature Control: LCD display with PID control
Control Accuracy: ±0.5°C
Applications: Central air conditioning systems and process temperature control
Key Advantages: Easy installation and maintenance, with precise and stable temperature control

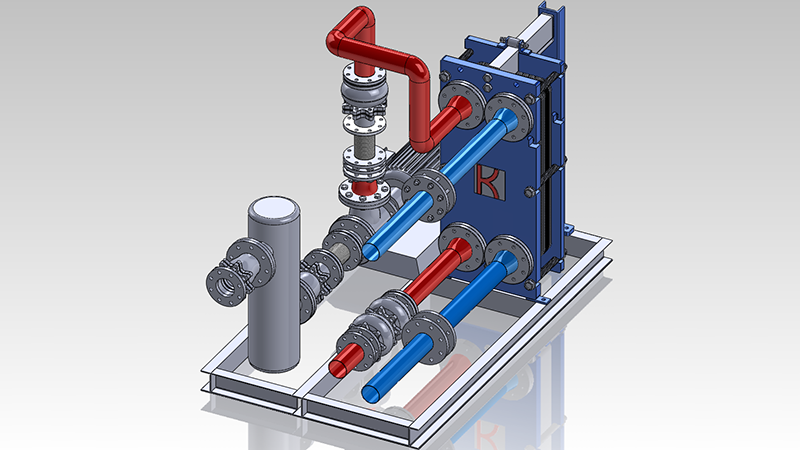

Flow Capacity: 1–150 m³/hr
Temperature Setting Range: 30–160°C
Filter Element Options: Available in various mesh sizes (10–400 mesh)
Applications: Heat treatment, metal processing, and fluids containing impurities
Key Advantages:
- Easy installation and maintenance
- Rapid oil temperature reduction with simultaneous filtration of impurities
- Quick-release filter design allows filter replacement within 1 minute
