A Series

A Series

BPHE for Air Dryer

A series is the innovative design for refrigerated air dryer. Combining precooler, evaporator and separator, it provides compact size and high thermal transfer performance. The patented design separator can perfectly dehumidify compressed air and eliminate the need for a demister to avoid clogging problem.

Industries:

Air Dryer

Inquiry

• Sizing Chart
• Variations
• Applications

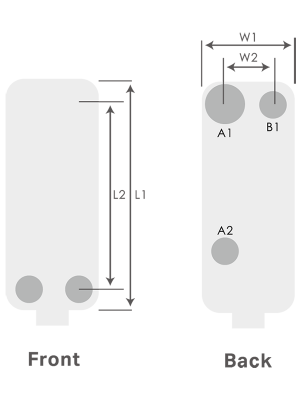

	L1 (mm)	L2 (mm)	W1 (mm)	W2 (mm)
A030	192	154	78	40
A032	192	154	78	40
A070	304	250	124	70
A072	304	250	124	70
A140	441	360	206	125
A210	527	430	245	148
A300	651	520	321	190

Working Pressure 10 16 20 30 45 70 100 140

Product Line Up Asymmetric - B Series Double Wall - D Series Kaori Standard - K Series High Pressure - K-S Series High Heat Transfer Performance - R Series Large Diagonal Flow - Z Series Super High Pressure - C series Low Pressure - E / F Series High Temperature - H Series Corrosion Resistance - M Series Impact Resistance - I Series Air Dryer - A Series Oil Cooler - Q Series

Search

Reset

Kaori specializes in customizing BPHEs for various applications.
For special requests please contact a Kaori representative.
